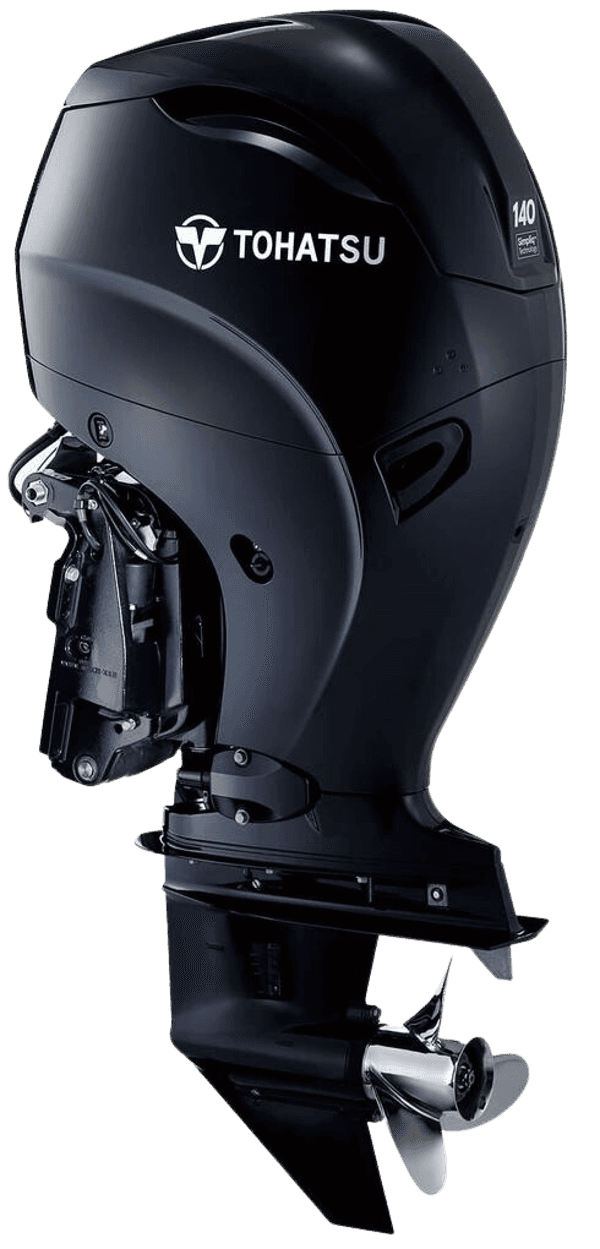

Tohatsu 140 HP outboard motor MFS140A ETL

Tohatsu MFS140A ETL ETUL 4-stroke outboard motor

The unique and industry-first 4-2-1 Performance Tuned exhaust manifold is designed to maximize torque and acceleration performance at low RPM. This best-in-class torque-to-displacement ratio delivers outstanding performance for all boat types, from light to heavy, for pleasure or commercial use. In certain boat applications, the MFS140A will perform comparable to heavier 150hp outboards that weigh as much as 50kg more.
This engine is also easier to install due to its lower weight.

• With the Protagon 20 with a boat weight of 850 kilograms, you can sail with a 140 hp outboard motor at a top speed of 63 kilometers per hour.
• With the Waterspoor 717 tender with a boat weight of 1,750 kilograms, you can sail with a 140 hp outboard motor at a top speed of 55 kilometers per hour.
• With the Corsiva 750 tender 175 hp, you can sail with a 140 hp outboard motor at a top speed of 55 kilometers per hour. And with eight people, it can reach over 45 kilometers per hour.

Where the competition supplies a 1.8 liter engine, the Tohaotsu has a 140 hp 2 liter engine.

The MFS140A is designed with Simpliq™ technology and features a SOHC 4V design. The spark plugs are strategically placed in the center of each combustion chamber for the most efficient combustion with optimal heat conduction, resulting in strong running and fuel efficiency.

A rule of thumb is that for fast boats, you need 1 hp for a total weight of 10 to 20 kilograms. Based on this, this outboard motor is suitable for a total weight of 1 ton to 3 tons.
For displacement boats, 1 hp per 150 to 200 kilograms is sufficient; then the engine is adequate for a total weight of 21 to 28 tons.

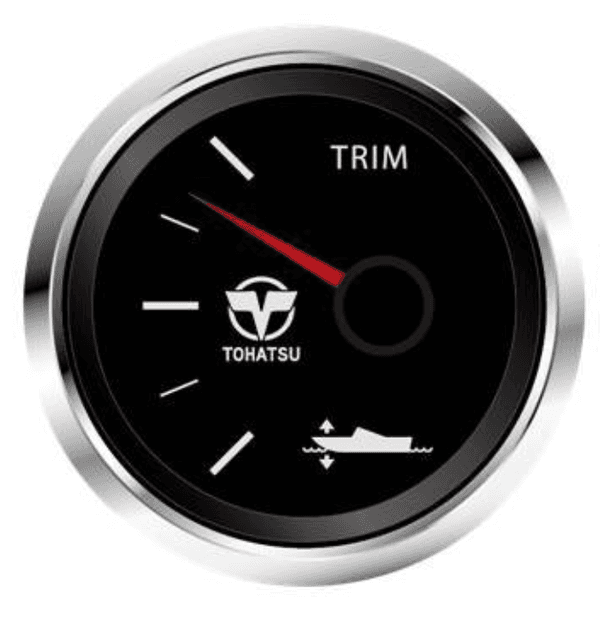

• Trim meter

The 2" diameter trim gauge displays the engine angle for optimal performance and efficiency. It features a domed lens to minimize glare in direct sunlight, a fog- and scratch-resistant coating, and a chrome bezel.

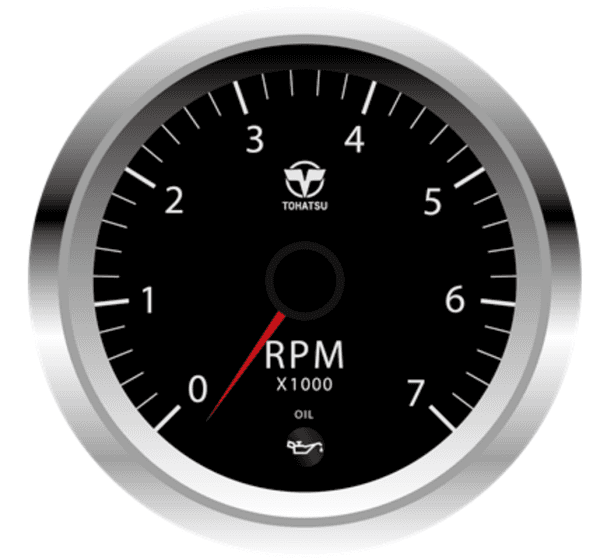

• Tachometer

The 7,000-rpm tachometer (10-centimeter diameter) has a chrome ring and is illuminated for clear visibility in the dark. It features a domed lens to minimize glare in direct sunlight and a fog- and scratch-resistant coating.

The tachometer informs the operator of potential problems, such as low oil pressure, low battery and overheating, through built-in warning lights.

Standard features include:
• Variable idle system to adjust the idle speed from 650 to 850, in 50 rpm steps, for better control of the towline
• Low gear ratio (2.08:1) provides low torque and better top performance
• Fresh water rinse System designed to make routine rinsing easier

SPECIFICATIONS

• Power 140 hp
• Lubrication 4-stroke
• Weight 178 kilograms
• Start Electric
• Control type Remote control or steering lever

• Gear lever Forward - Neutral - Backward
• Fuel system Injection
• Number of cylinders 4
• Cylinder capacity 1995 cm3
• Maximum power 103 kW
• Full throttle working speed 5150-5850 revolutions per minute
• Bore x impact 84x90 mm
• Trim/tilt mode Powertrim - Manual trim/tilt
• Tail length L (20'' = 51 centimeters) or U (25" = 64 centimeters)

ADVANTAGES

• Dynamic design with refined details
• Exciting sailing performance
• Superior durability and optimized weight
• Excellent fuel economy due to unique SOHC-4V design
• Performance-inspired engine sound and the quietest idling
• Lightweight
• Tuned ECU programming
• Available in long (20”) & ultra long (25”) shaft lengths

High performance and easy operation

• 4-2-1 Performance Tuned exhaust generates high torque to get you on the plane quicker
• A precisely tuned ECU delivers strong acceleration when needed
• Electronic fuel injection
• MicroComputer Programmed ignition system for faster starting
• Powerful 41 amp dynamo
• New and improved gearbox with wider mudguard and anti-ventilation plate
• Adjustable steering friction and trim tab for less steering effort
• Power trim and tilt

Principles of ease of use and reliability

FEATURES

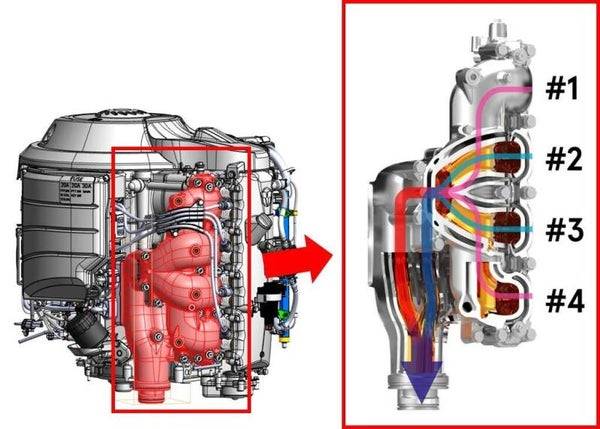

4-2-1 Performance Tuned exhaust
The isometric "4-2-1 Performance Tuned Exhaust" manifold maximizes torque and acceleration. This unique design is an industry first and is only found on Tohatsu outboards. By designing each exhaust passage to be the same length, the combination of exhausts from each cylinder creates additional suction that helps pull the exhaust out of the engine. This completely eliminates the possibility of exhaust interference and dramatically improves performance. See the video on this page.

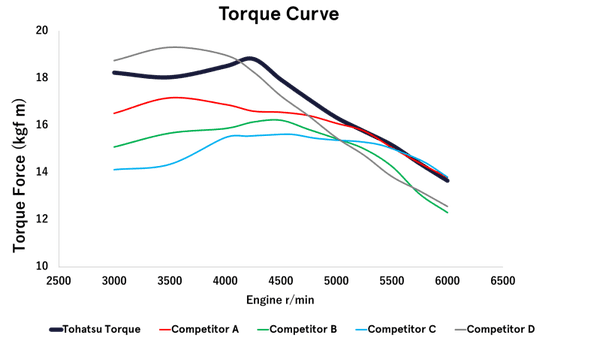

Excellent couple
4-2-1 Performance Tuned Exhaust with the highest torque, allowing you to get on plane quicker and reach top speed faster than any competitor.

**Data based on research conducted and collected by Tohatsu Engineering Department

Superior durability and optimized weight
To ensure high durability and weight reduction, Tohatsu optimized each relatively heavy component, such as the cylinder head, exhaust manifold, engine base, oil pan, lower unit, etc. A special anodizing process was also used on all major aluminum components for extended engine life.

Excellent fuel efficiency

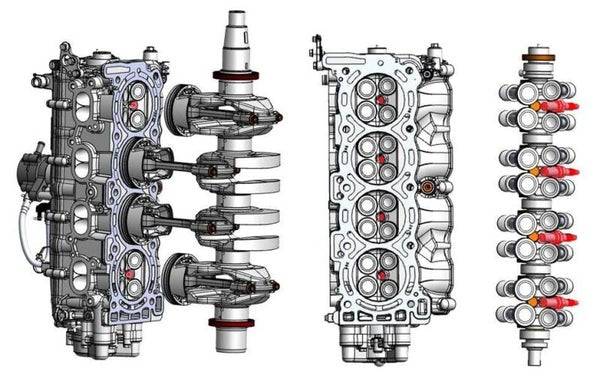

A unique SOHC-4V design in its class, where competitors are either SOHC-2V or DOHC-4V. Spark plugs are strategically placed in the center of each combustion chamber for the most efficient combustion with optimal heat conduction, resulting in strong running and fuel efficiency.

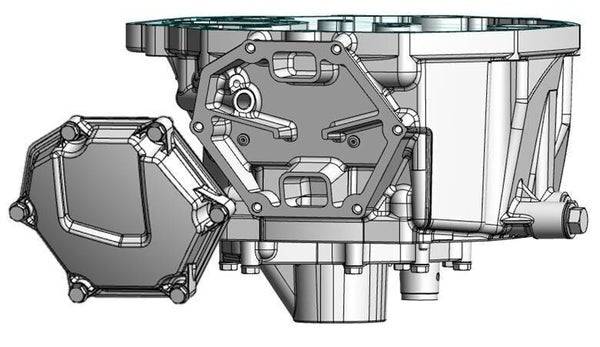

Silent engine
With its equal-length intake manifold, 4-2-1 Performance Tuned exhaust, and precisely tuned ECU, the engine delivers an exciting, performance-oriented sound. Sounds also bounce off each other within the large-capacity idle port, dampening the exhaust flow, contributing to the quietest idle noise.

Agility
With its sophisticated ECU programming, the engine is designed to improve acceleration when needed to get the boat on plane faster. If you open the throttle too wide, the ECU recognizes this and fires all four cylinders simultaneously. Simultaneously, the ECU optimizes and delivers sufficient air and fuel, creating a more suitable air/fuel mixture for rapid acceleration and generating higher torque. The higher the torque, the stronger the acceleration you get, resulting in improved hole shots and therefore faster planning. The upper and lower mounts and the gearbox have also been optimized for direct steering response, maneuverability, and greater stability.

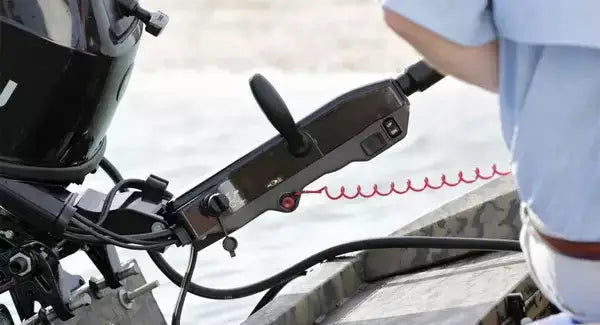

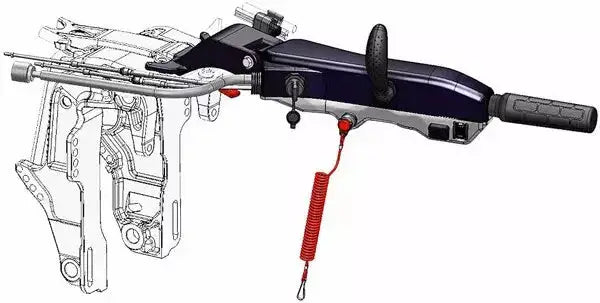

Multi-function joystick with PTT switch on the handle
This multifunction tiller is an excellent choice for commercial use. It features an ergonomically designed large shift lever at the front and a longer throttle grip with a PTT (Power Trim & Tilt) switch at the end of the handle for easier control and maneuverability. To balance different wind and current conditions, the Variable Idling System allows the user to select the optimal idle speed from 5 different RPM ranges by simply pressing the key switch.

THEREFORE TOHATSU

• Tohatsu, based in Japan, has been in business for over 100 years and produces more than 200,000 outboard motors annually. TOHATSU is the largest outboard motor manufacturer in the world.


• Tohatsu has over a 10 percent market share in the Netherlands and is growing fastest in the country. For models up to 30 hp, it already boasts a market share of over 20% !


• Did you know that Mercury even has Tohatsu manufacture its outboard motors up to 30 hp? The only difference is the cowling and the price.
  The Tohatsu BFT models from 150 hp are rebranded Hondas since 2014. So you get a reliable Honda engine for a Tohatsu price.


• Tohatsu motors offer the highest quality and are lower priced than other premium brands. Tohatsu is also the only brand that produces exclusively outboard motors, so it's truly specialized.


• Tohatsu pays close attention to the appearance of its outboard motors, and this model reflects that. The look is rugged and robust. Under the sleekly streamlined hood, you'll find trusted Tohatsu technology, designed for years of boating enjoyment with minimal maintenance.


• The Tohatsu engine is user-friendly in every respect. For example, the oil filter is positioned so you can easily change it yourself. The generous oil reservoir provides optimal lubrication for your outboard motor. The proven Tohatsu electronic injection system ensures smooth starting and quick throttle response. The RPM is easily controlled.


• Your newly purchased Tohatsu outboard motor comes with a full 5-year manufacturer's warranty .


• Tohatsu always comes out well in comparison tests.
  • Read the test reports for the 15 , 30 , and 60 hp engines, among others. Tohatsu is the price-performance winner according to Boote Testen.
  • The ANWB 'Water Champion' also conducted an outboard motor test. The Tohatsu 6 hp came out as winner forward based on, among other things, weight, noise and ease of use. According to the ANWB, you can best buy a Tohatsu 6 HP outboard motor.
  • Boote-Magazin.de also has the Tohatsu MFS115 A tested: impressive result Thanks to its best torque-to-weight ratio and higher top speed, the Tohatsu is also extremely fuel-efficient thanks to its small displacement.
• Most models are available from stock!

That's why Tohatsu is the best outboard motor.

Tohatsu pays close attention to the appearance of its outboard motors, and this model reflects that. The look is rugged and robust. Under the sleekly streamlined hood, you'll find trusted Tohatsu technology, designed for years of boating enjoyment with minimal maintenance. The motor is user-friendly in every way. For example, the oil filter is positioned so you can easily change it yourself. The generous oil reservoir provides optimal lubrication for your outboard motor. Thanks to the proven Tohatsu electronic injection system, your engine starts easily and delivers rapid throttle response. The RPM is easily controlled.

WARRANTY & DELIVERY TIME

Your newly purchased Tohatsu outboard motor comes with a full 5-year manufacturer's warranty . This gives you solid assurance of worry-free boating. You'll receive a warranty certificate and receipt with your purchase. Any technical defects that occur within the warranty period and are covered by the warranty terms will be repaired free of charge.

WARRANTY & DELIVERY TIME

Your newly purchased Tohatsu outboard motor comes with a full 5-year manufacturer's warranty . This gives you solid assurance of worry-free boating. You'll receive a warranty certificate and receipt with your purchase. Any technical defects that occur within the warranty period and are covered by the warranty terms will be repaired free of charge.

VERSIONS:

• VERSIONS:

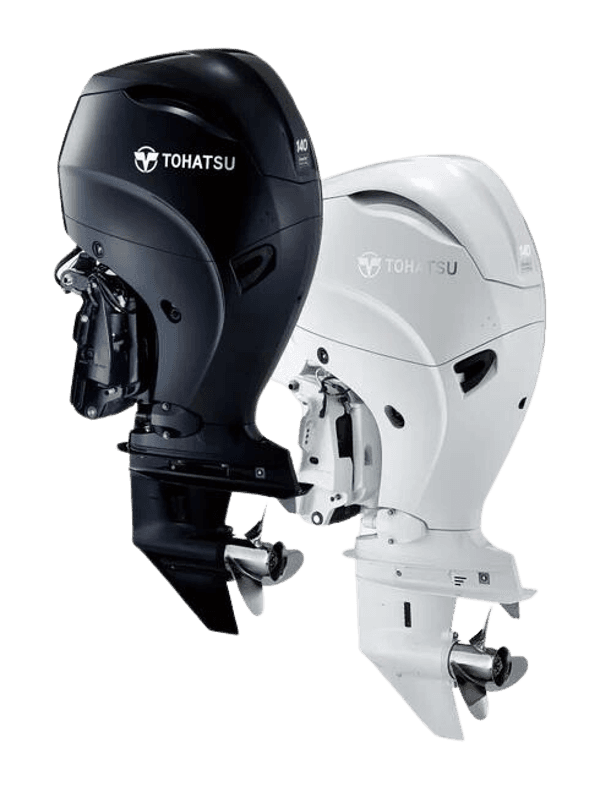

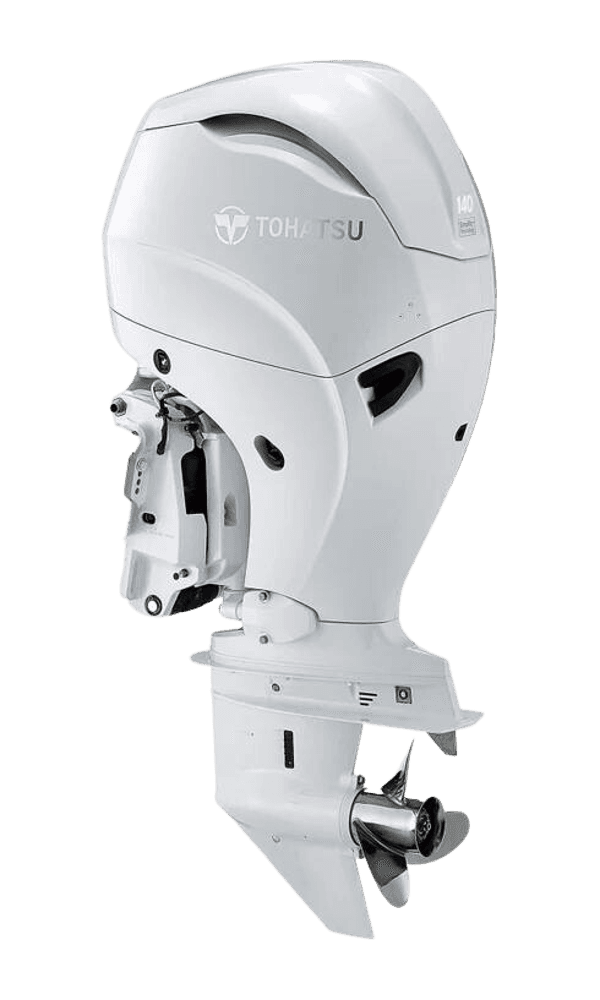

  • ETL: E: Electric start , T: Remote control and power trim , L: Long tail or W: in the color Beluga White additional charge €695.
  • ETUL: E: electric start , T: remote control and power trim, U: Extra long tail L: Long tail or W: In Beluga White. Steering wheel controls are available with both monocable and hydraulic controls.
    With power trim and tilt, you can optimize the engine's tilt angle at the touch of a button. The trim gauge lets you quickly see if the engine angle is set correctly. This results in faster acceleration, smoother, faster, more fuel-efficient, more stable, and, above all, safer handling. It's also handy for trailering.
  • (W)EFTL/(W)EFUL tiller Multifunction tiller with Big Multi Tiller C handle (see images) with PTT switch on the handle.
    This gives you an electric start and power trim of the outboard motor, without the need for a remote control steering function.
    An ergonomically designed large shift lever at the front and a longer throttle grip with a Power Trim & Tilt (PTT) switch at the end of the handle for easier operation and maneuverability. To balance varying wind and current conditions, the Variable Idling System allows the user to select the optimal idle speed from 5 different RPM ranges by simply pressing the key switch.
    - Ergonomically designed shift lever.
    - Longer Thottle handle with 110 degrees of rotation for maneuverability
    -Throttle Friction function for fine-tuning the comfort of the tiller
    -Steering Co-Pilot for steering control.
    -Warning lights, key switch and tilt and trim switch (in the handle) easily accessible
    Available in Aqua Blue (Article number 3SSQ63000-2) or Belgua White (Article number 3SSW63000-2). Additional charge: €395.

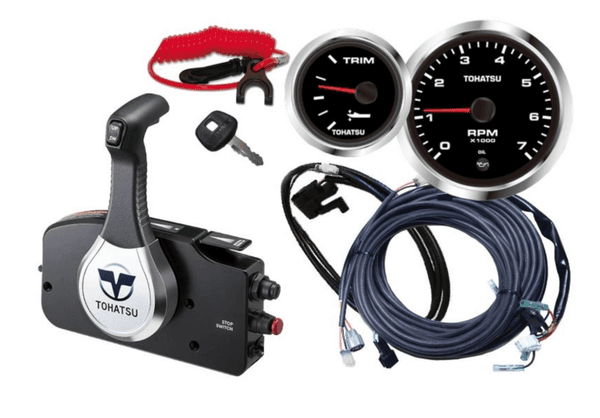

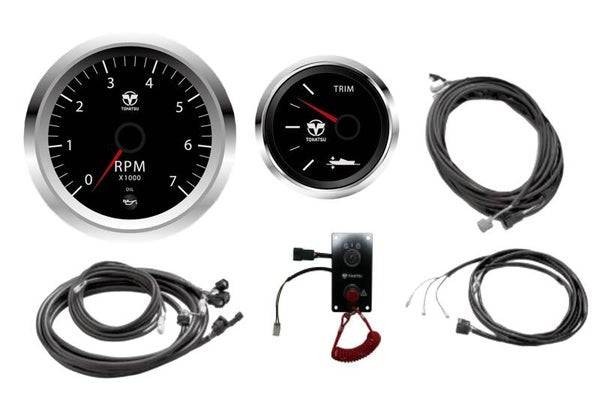

• At Marinaut it is complete, including :

  • Trim gauge: (2" diameter) shows the engine's trim position for optimal performance and efficiency. Features a domed lens to minimize glare in direct sunlight, a fog- and scratch-resistant coating, and a chrome bezel.

  • Tachometer: With a 7,000 rpm display (10 centimeters in diameter), it has a chrome ring and is illuminated for clear visibility in the dark. It features a domed lens to minimize glare in direct sunlight and a fog- and scratch-resistant coating. The tachometer alerts you to potential problems such as low oil pressure, low battery, and overheating via built-in warning lights.

  • Standard vertical mounting panel (article number 3ZG-84556-0)
    • without remote control
    • with wiring harness with ignition switch and dead man's switch
    • communications cable kit
      or on request:
    • side-mounted control box remote control with power trim (part number 3ZG-84555-0)
    • wiring harness with ignition switch and dead man's switch
    • communications cable kit

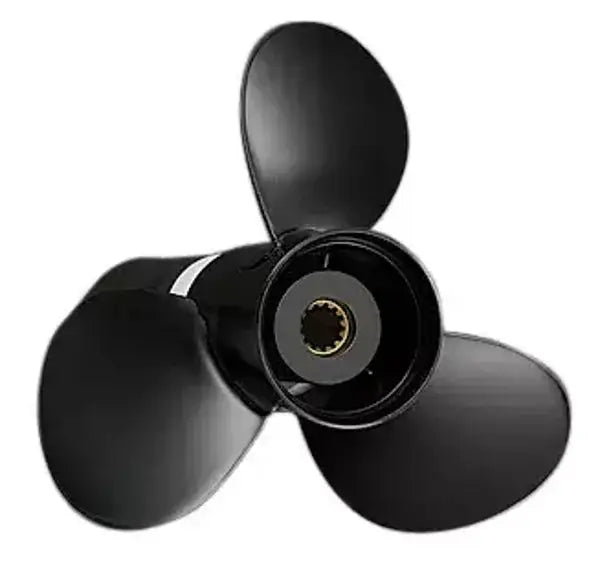

  • 3-blade aluminum propeller/screw and hub kit (connection between the propeller and the propeller shaft) aftermarket*.
  • 24 liter fuel tank with fuel hose with pump ball aftermarket (55 liter extra charge €195)
  • motor oil

  • delivery inspection.
    Worth 475 euros.

• *or propeller OEM Tohatsu aluminum with 3 blades and hub kit Additional charge €419.

  Available propeller sizes:

	Water displacement	Diameter	Pitch			Article number
	Light	13.2	21			3HKB64545-0
	Light	13.2	19 (most delivered)			3HKB64541-0
	Average	13.3	17			3HKB64536-0
	Average	13.5	15			3HKB64532-0
	Average	13.7	13			3HKB64527-0
	Heavy	14	11			3HKB64523-0
	Heavy	14	9			3HKB64518-0

Choose a lower pitch for heavier boats: higher acceleration (for waterskiing/wakeboarding). Higher pitch for lighter boats: higher speed.

If the RPM is too low at full throttle, a smaller pitch can result in a higher top speed and acceleration. One pitch makes a difference of about 200 to 300 RPM. NB: Choosing too low a pitch may result in exceeding the maximum RPM and thus in engine damage.

You can also achieve more pulling power and higher revs with a larger diameter, and less pulling power and higher revs with a smaller diameter.

• Trade-in is possible
• Delivery time upon consultation. Please contact us by phone at +31(0)24799804, email info@marinaut.nl , or chat (bottom right).
• View the brochure and manual here
