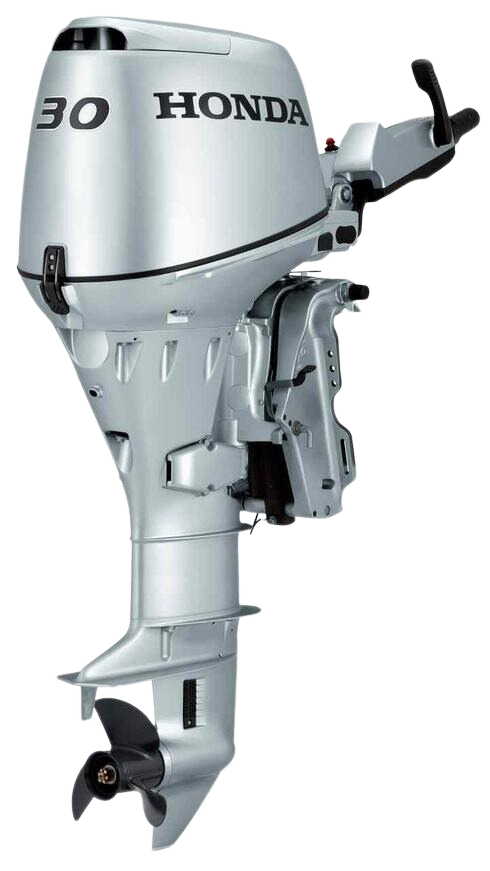

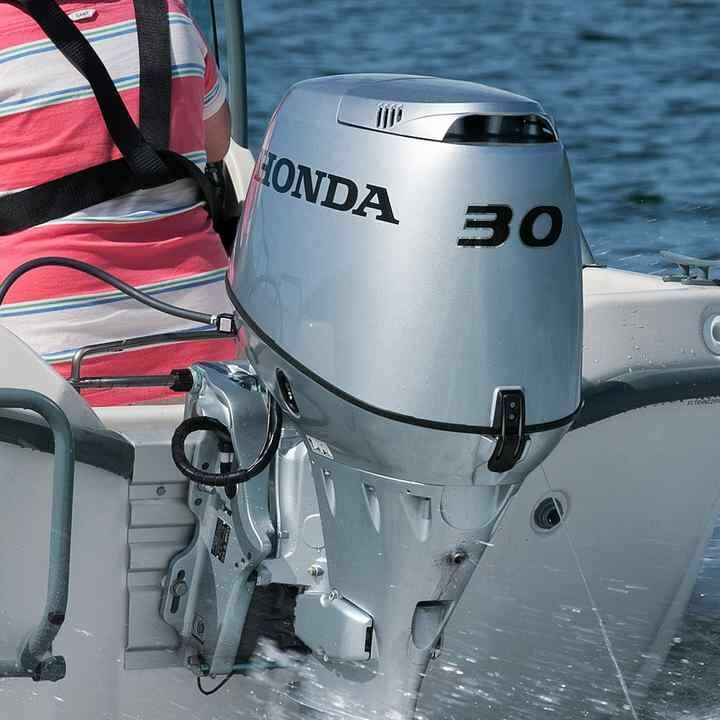

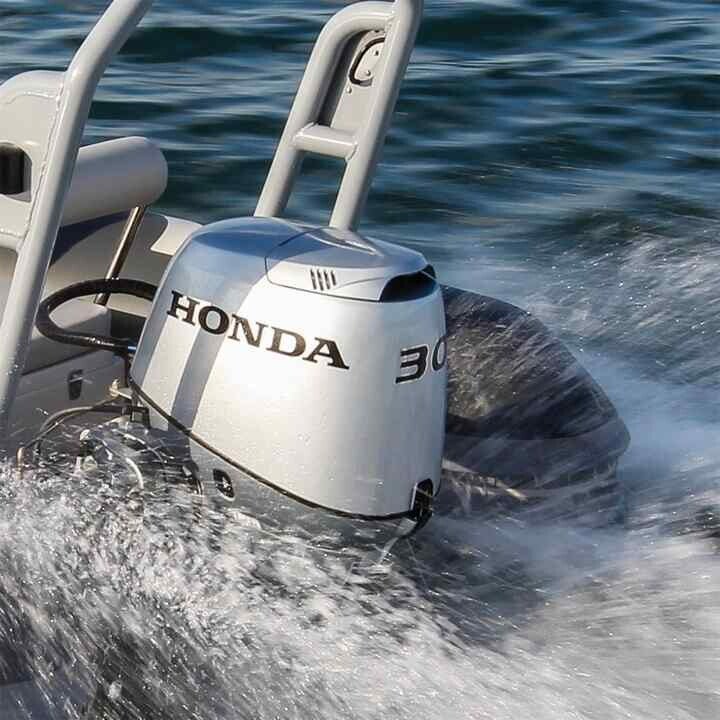

Honda 30 HP Outboard Motor BF30 SRTU LRTU SHGU LHGU — SRTU

BF30 short or long tail 30 hp – 4-stroke engine | 3 cylinders – 808 cm³

• With all its innovative features and low consumption, the BF30 more than pays for itself.


• The right combination of smooth power, low noise and stable operation - no matter how rough the water.


• This engine is suitable for sailing boats with a total weight of up to 6,500 kilograms at bow speed.


• Cruising along your favourite waters or coastline you realise you made a fantastic decision by choosing a Honda. It's so quiet – while cruising you can easily have a conversation with your fellow sailors.

• 4-stroke technology: for easy starting, silent operation and low emissions.

• Environmentally friendly No hassle with mixing petrol and oil – it runs on unleaded petrol, so it won’t pollute the water. The result is a perfect combination of robustness, performance and everyday reliability.

• Powerful lightweight three-cylinder engine: technologically advanced outboard engine with an excellent power-to-weight ratio, powerful acceleration and impressive fuel efficiency .

• Proven technologies used in Honda car and motorcycle engines are also included in the electronic fuel injection system, which provides better performance and lower consumption.


• PGM-Fi electronic fuel injection: enables easy starting, powerful acceleration and amazing fuel economy. The long, slim intake manifold and downsized electronic components reduce weight and space, contributing to the compact, sleek design. The gearbox is extremely hydrodynamic, reducing water resistance and maximizing the engine’s power.



• As a rule of thumb, for fast boats you need 1 hp for 10 to 20 kilograms of total weight. Based on this, this outboard motor is then suitable for 300 to 600 kilograms of total weight.
  For displacement boats, 1 hp per 150 to 200 kilograms is sufficient; the engine is then adequate for 4 to 6 tons of total weight.

• The 552 cc three-cylinder engine with high torque delivers first-class power . The BF30 delivers high torque levels, especially in the mid-range.
• Fine tuning: using power tilt and trim you can find an economical speed and maneuver the boat precisely for better performance and fuel savings.
• Motor protection and security: motor control function.
• 4Front Corrosion Protection: a four-layer coating process that provides protection against UV radiation and salt water. This provides the best protection against the harsh marine environment. Four layers of defense: Honda first anodizes the aluminum body with a patented “double-sealing” process. Then an epoxy primer is applied before the gleaming silver paint is applied. For extra protection against UV rays, a top coat of clear acrylic resin is applied. And for added security, a solvent electrode is attached and all connections are waterproof. Corrosion doesn’t stand a chance.
• View here the brochure and the manual .

---

The Honda warranty covers both manufacturing and material defects during three years from the date of purchase.

• Prices include VAT.

Order online or contact us.

Specifications

• Engine: 4-stroke Water cooling

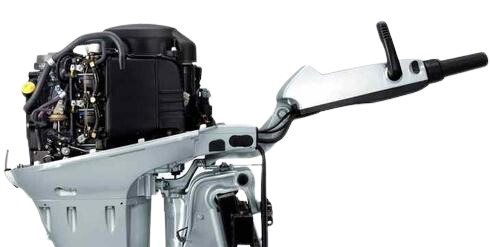

• Type 4-stroke: OHC - 3 cylinders

• Cylinder capacity (cm³): 552

• Bore x Stroke (mm): 61 x 63

• Full throttle speed (RPM): 5,000-6,000

• Propeller shaft power (kW (HP)): 22.4 (30)

• Cooling system: Water cooling

• Fuel system: 3 carburetors with accelerator pump

• Ignition system: Electronic PGM-IG

• Starting system: Electric start

• Exhaust system: Via the propeller hub. This provides increased thrust and produces less noise.

• Gear ratio: 2.08

• Propeller Rotation Direction: Standard

• Trim: SSTAGE / Gas Assisted / Manual / Power Trim & Tilt ( Allows you to automatically adjust the angle of the engine. The electric trim and tilt of the engine optimizes performance)

• Electric start: Yes so you can start effortlessly and easily with the key.

• Dynamo Output (AMP): 10 Ampere

• Longtail dimensions:

  • Mirror height (mm): 521

  • Dry weight (kg): 82.0

  • Length (mm): 640 (RC) - 720 (Tiller)

  • Width (mm): 1.320

  • Height (mm): 1.364

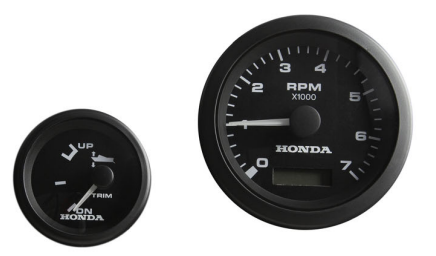

• Including meter set (SRTU AND LRTU) consisting of

  • tachometer

  • trim meter

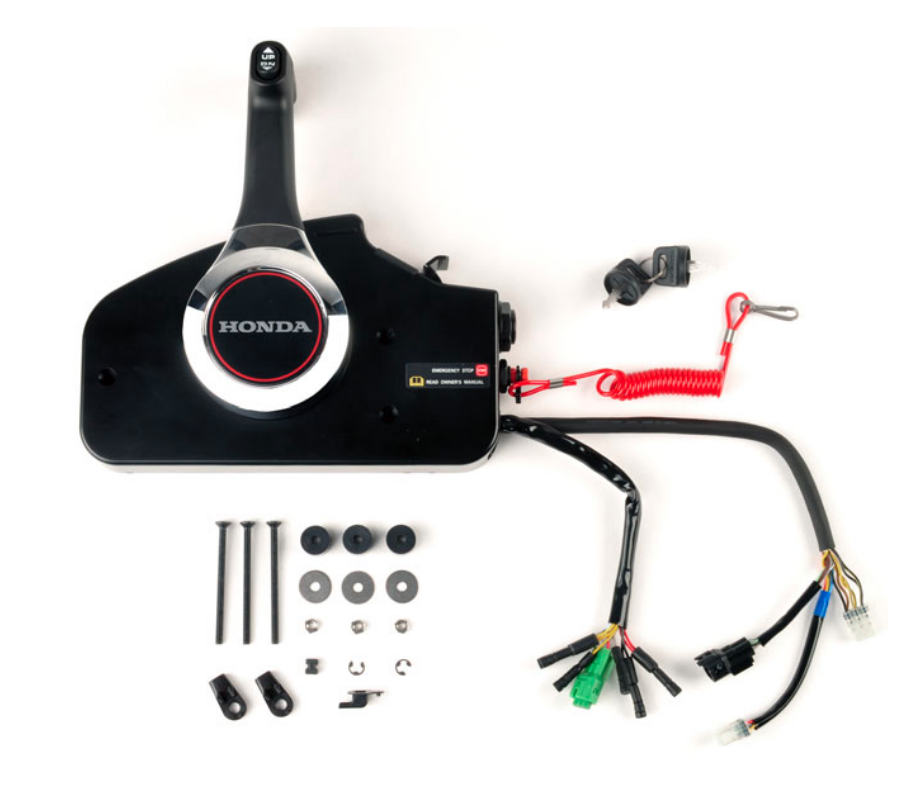

• Including Side Mount Remote Control Cabinet (SRTU and LRTU)

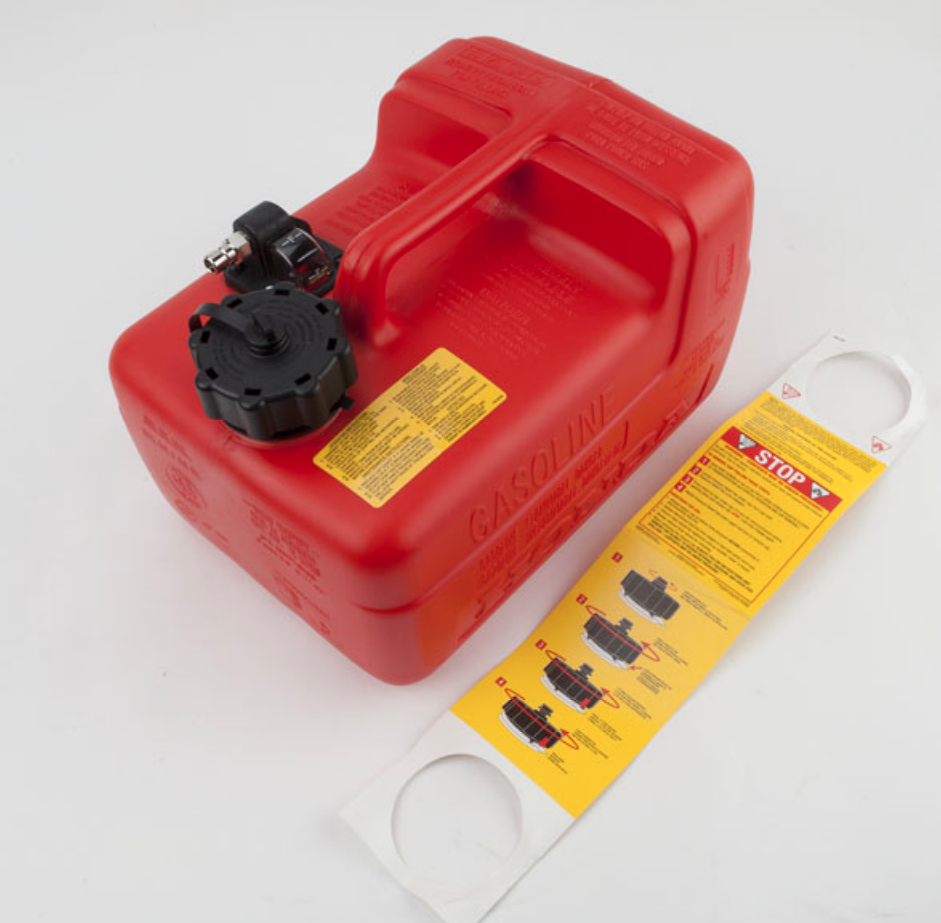

• Includes 25 liter fuel tank

Types

• SRTU : Short tail / Remote control / E and tailpiece of 431 mm, a battery charger capacity of 10A, an electric start, a remote control, a power trim and tilt. S: Electric start, R: remote control, T: trim, U: European version

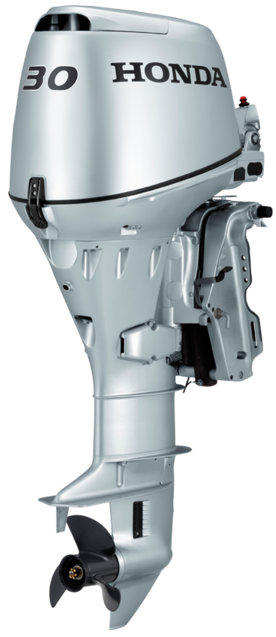

• LRTU : Long tail / Remote control / E and tailpiece of 552 mm, a battery charger capacity of 10A, an electric start, a remote control, a power trim and tilt. L: long tail, R: remote control, T: trim, U: European version

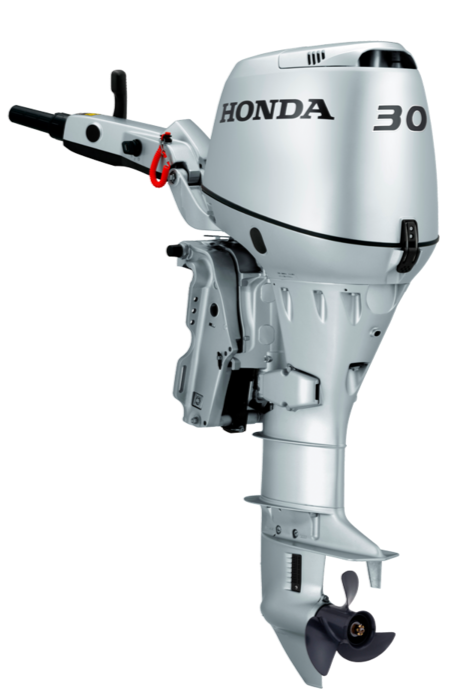

• SHGU : Long tail / Stick / E and tailpiece of 431 mm, a battery charger capacity of 10A, an electric start and a gas assisted tilt function. S: short tail, H: manual, U: European version.
• LHGU : Long tail / Stick / E and tailpiece of 552 mm, a battery charger capacity of 10A, an electric start and an assisted tilt function. L : long tail, H : manual, U : European version
• The transom height of the boat determines the outboard motor's shaft length. Measure from the point where the motor is attached to the bottom. Is the transom height around 43 centimetres? Then you need a short shaft. For a length of 51 centimetres, it is best to go for a long shaft. You need an extra long shaft for a length of 63 centimetres.

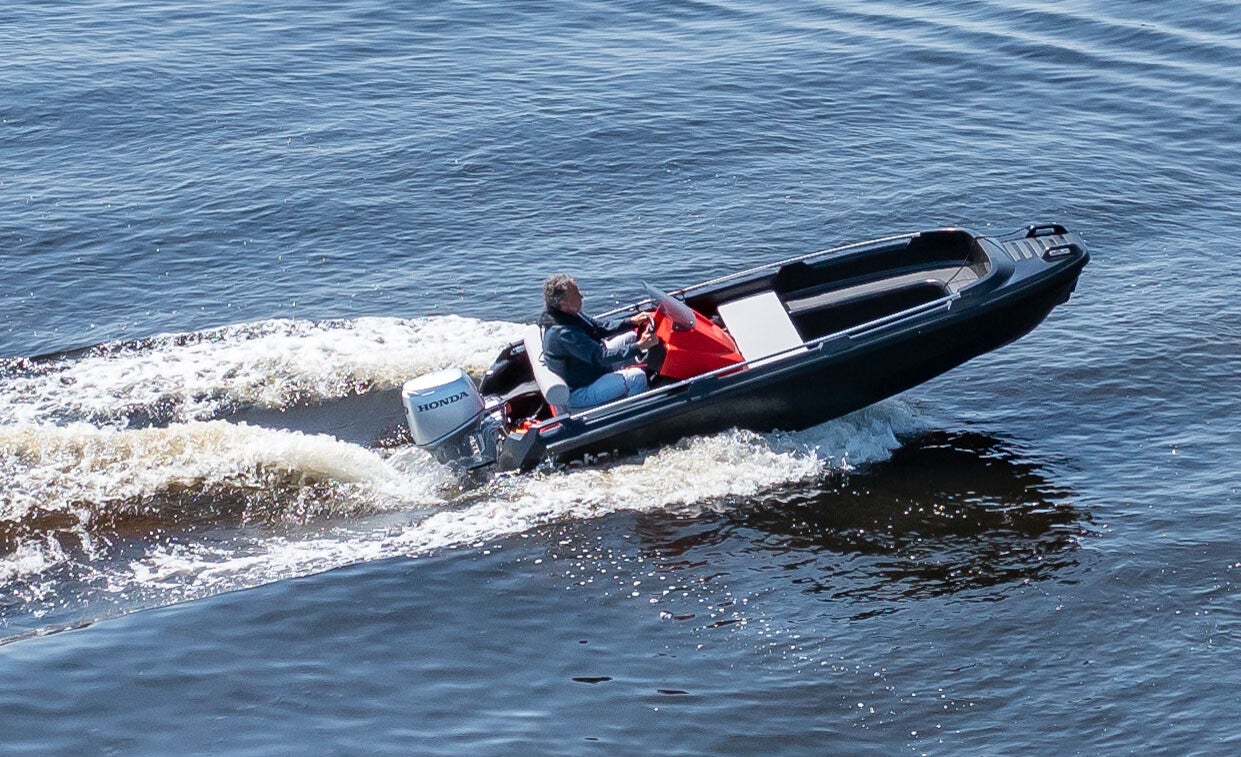

• Test report: With an Amigo 475 Sport with a boat weight of 410 kilograms, you can sail with a 30 hp outboard motor at a maximum speed of 40 kilometers per hour.

Trade-in is possible
