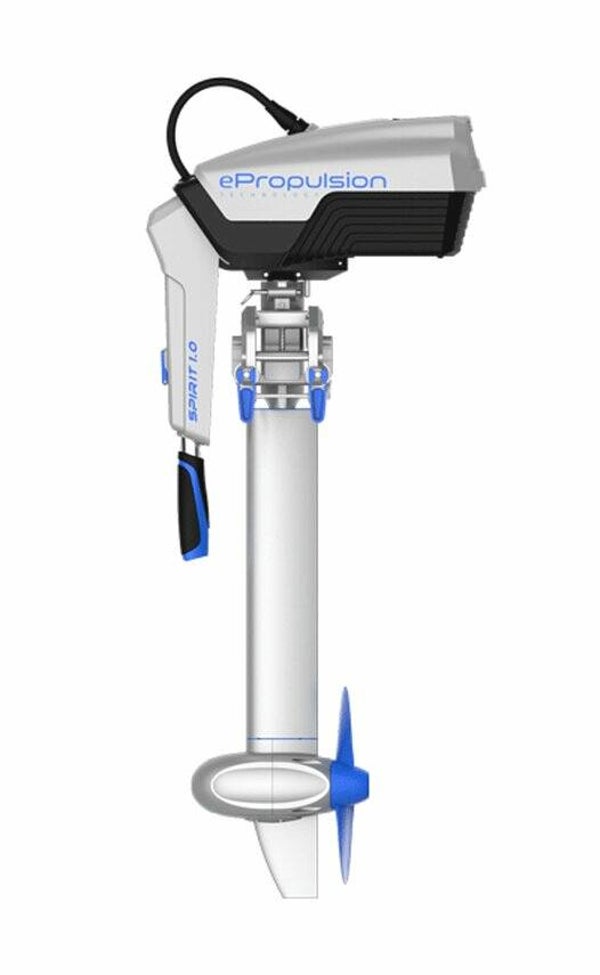

ePropulsion Spirit 1 kW Plus Tiller Handle Electric Outboard Motor

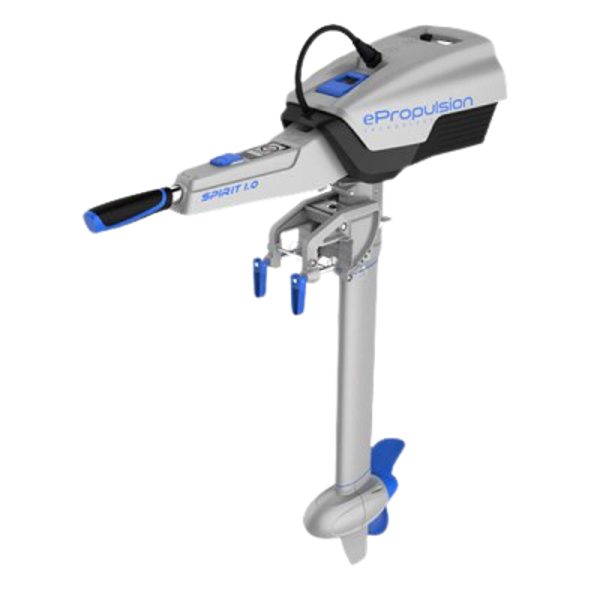

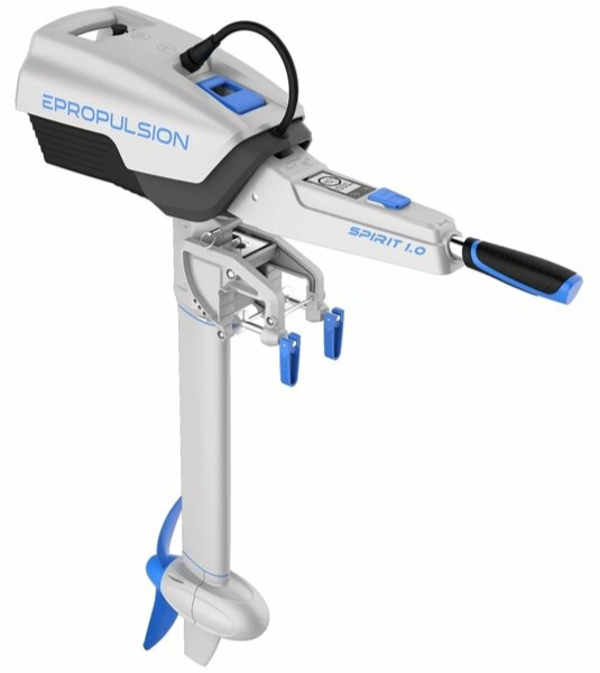

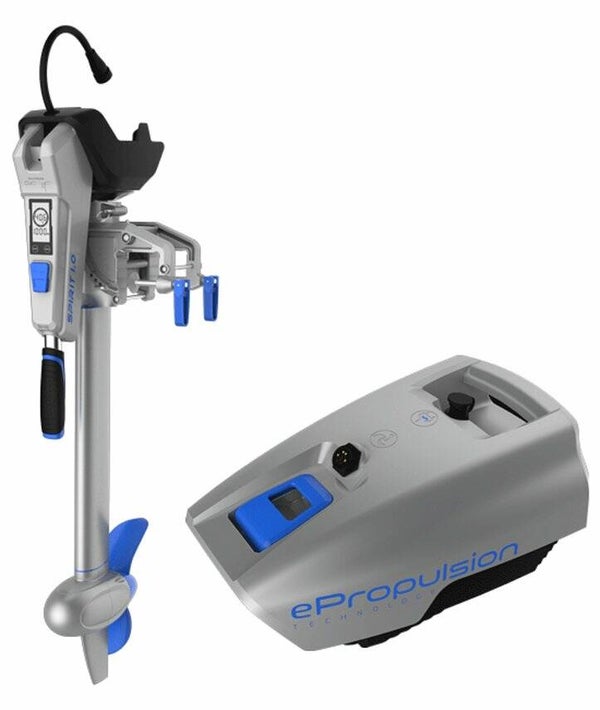

ePropulsion Spirit 1.0 kW electric outboard motor

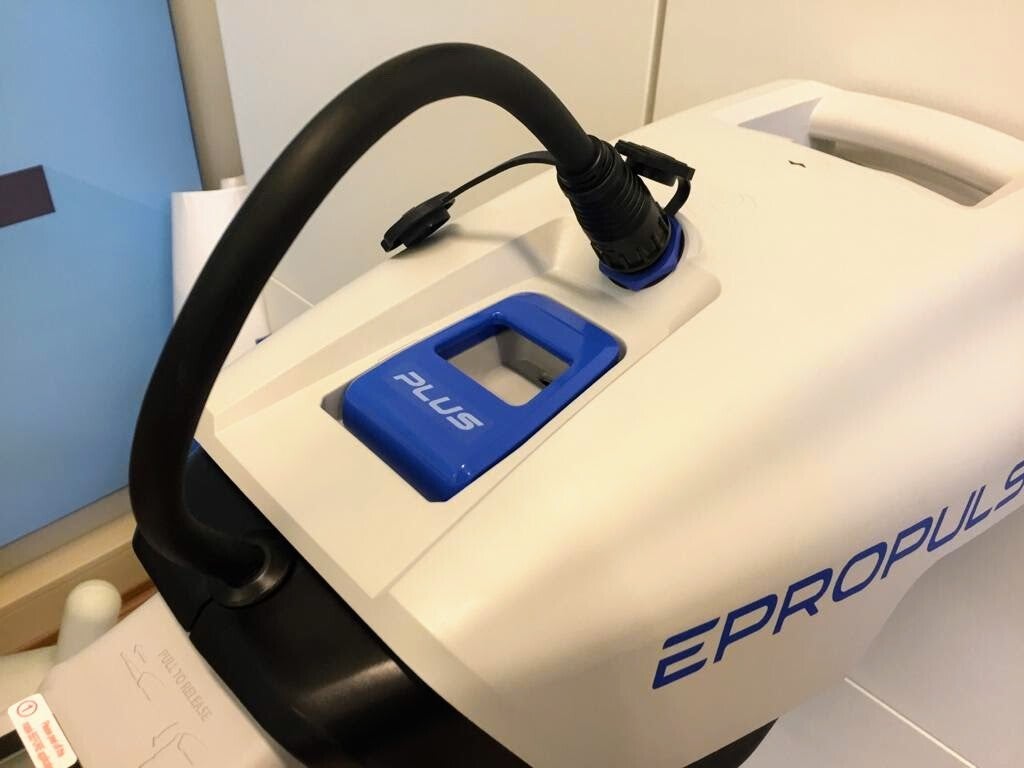

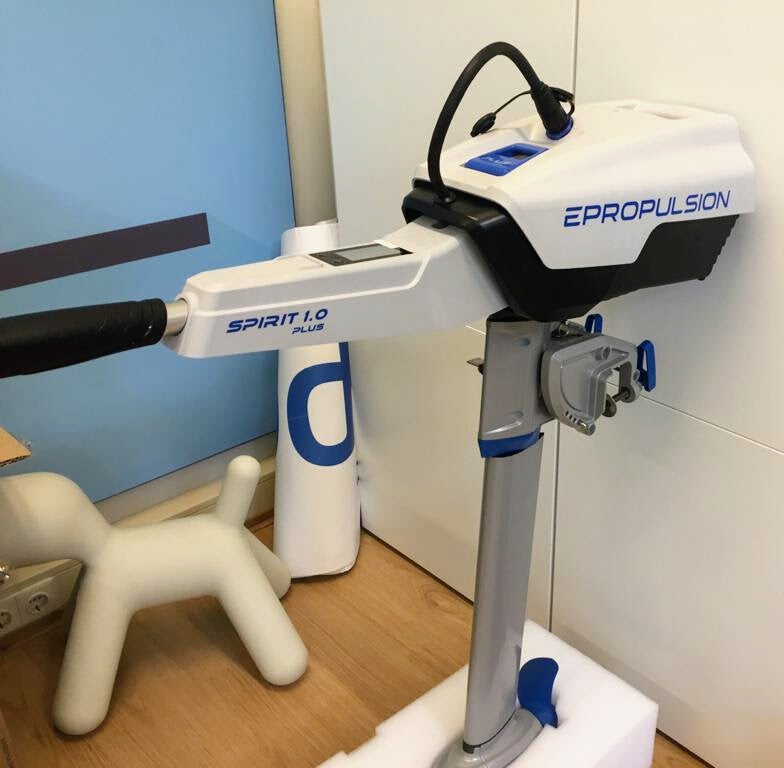

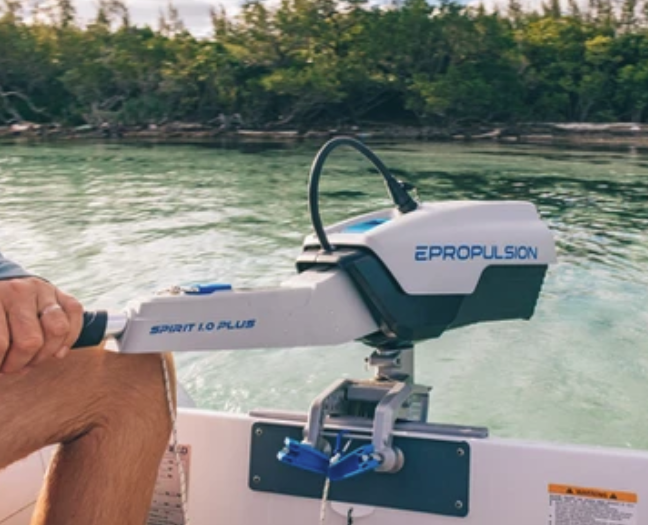

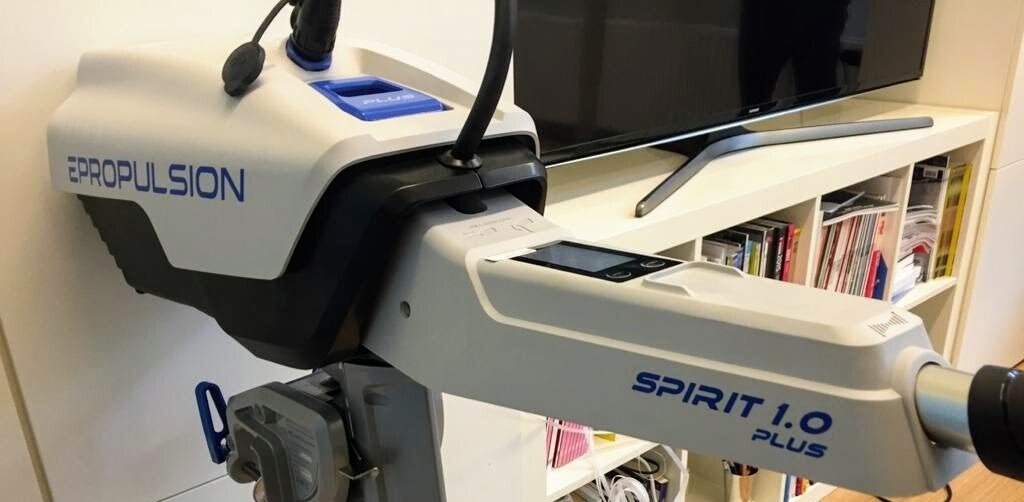

• The ePropulsion Spirit 1.0 Plus (tiller) is a lightweight electric outboard motor with an integrated battery: the best in its class!
• Promotion: 3 year warranty when registered with ePropulsion.
• The price does not include battery.
• 2nd chance: 1 used long tail in very good condition with 1 year full warranty 940,-- .

• There is also an Evo Plus variant:

  • with hydrogeneration (charging while sailing)

  • remote control (steering wheel controls)

  • and man overboard bracelet (optional)


• The power is comparable to 3 HP. However, electric motors have a much higher thrust than petrol engines. The engine is suitable for bringing boats up to 900 kilograms to cruising speed and boats up to 300 kilograms to hull speed .

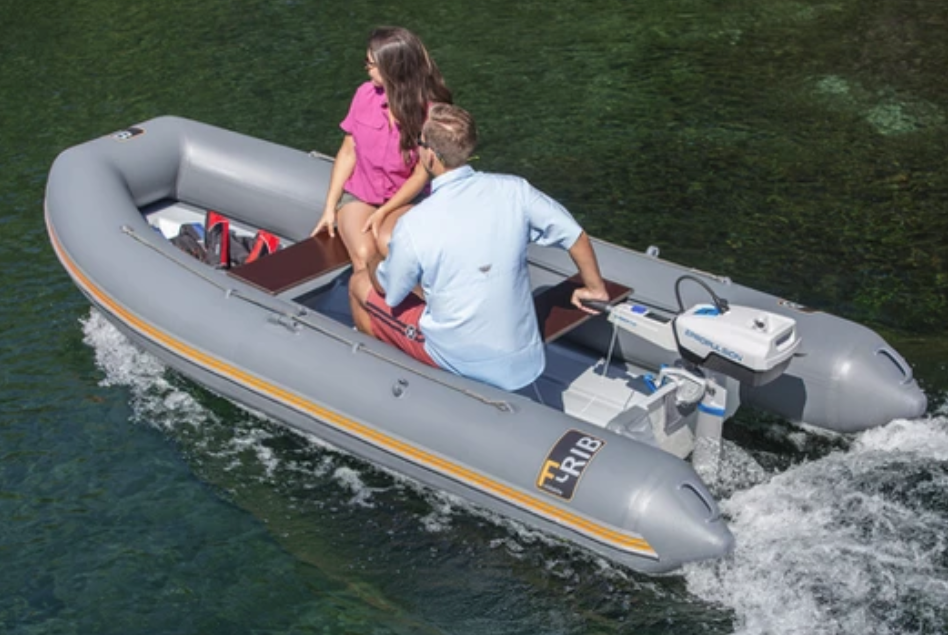

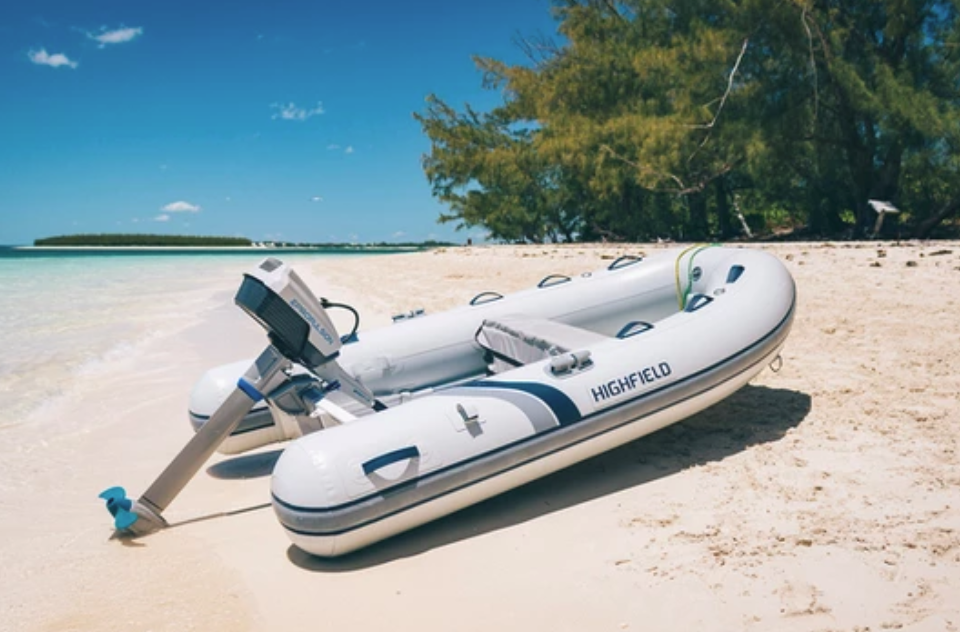

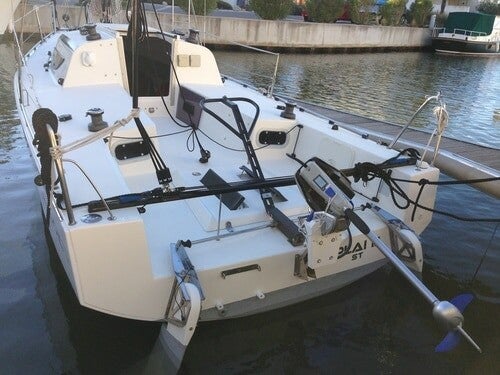

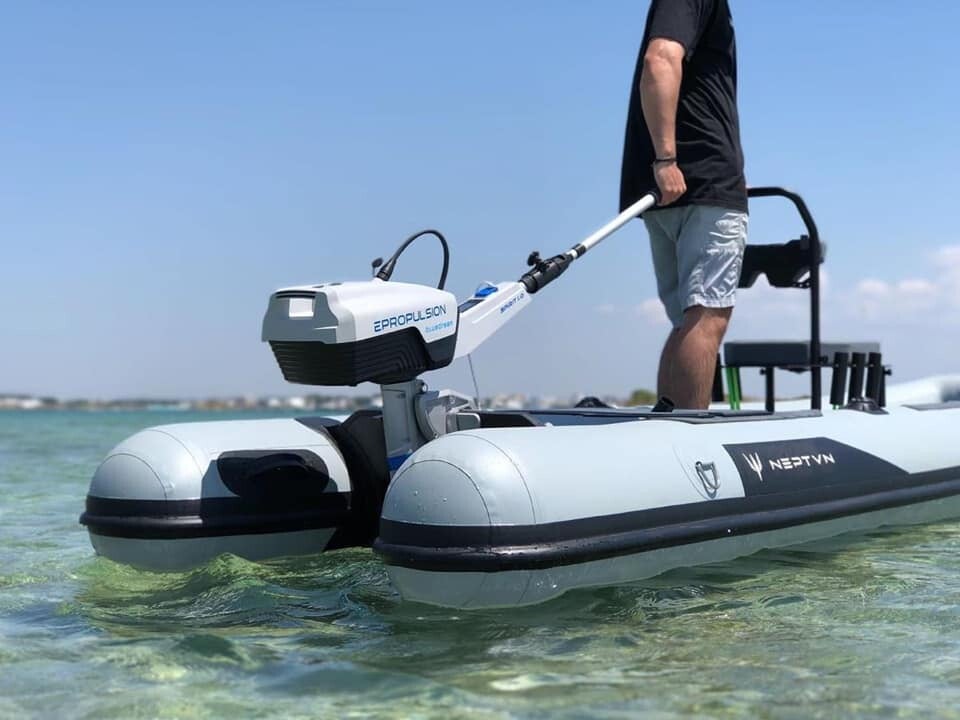

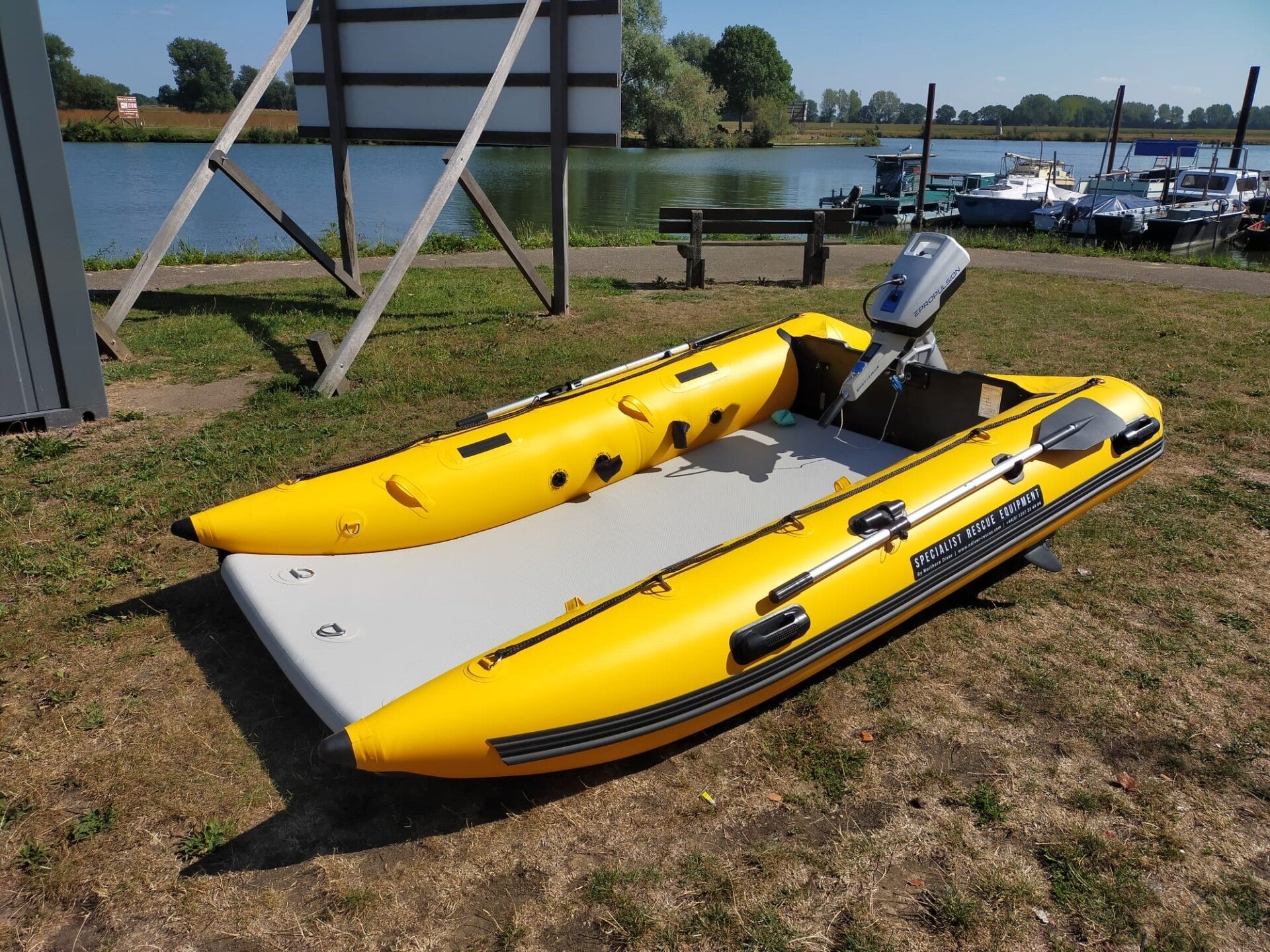

  This engine is therefore very suitable for RIBs, sloops, rubber boats (usually up to 5 metres) and sailing boats (up to 7 metres).


  For heavier boats you can order an ePropulsion Navy 3.0 Evo 3kW 6 hp Electric Outboard Motor 48V or an ePropulsion Navy 6.0 Evo 6kW 10 hp Electric Outboard Motor 465 LBS 48V.

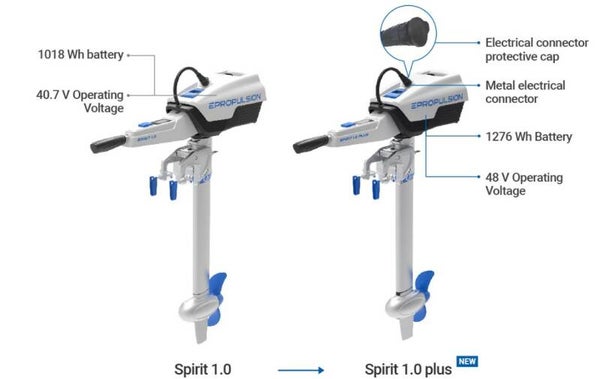

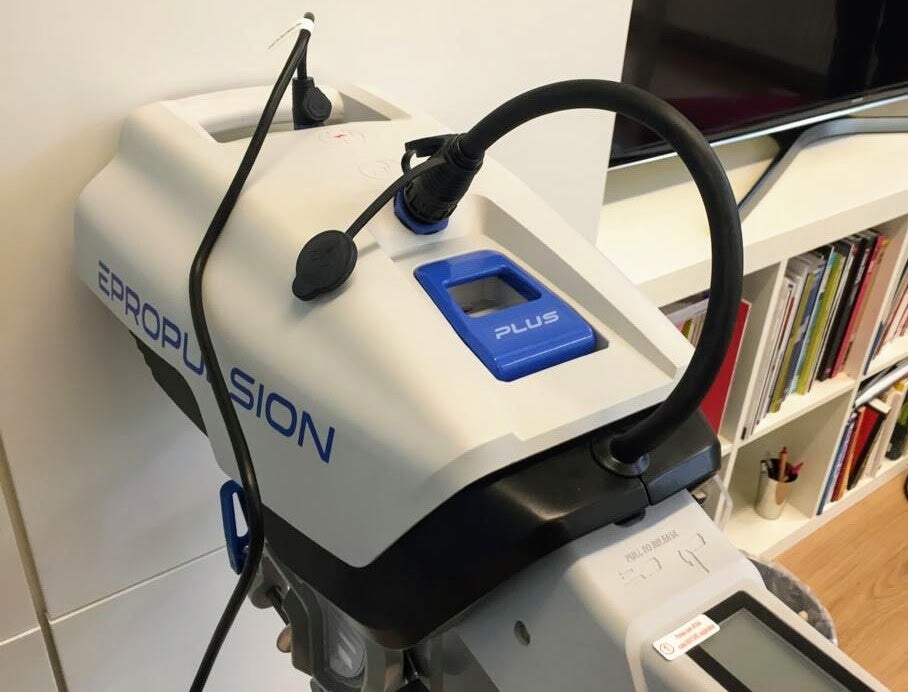

• 1.276 wH unsinkable battery: E asi ly replaceable for a second battery for extra range. Cheaper and 40% (!) greater battery capacity than the Torqeedo Travel 1103 C. Assume a consumption of 330 Watt per hour (Wh) 4.5 hours of sailing. At 6 kilometers per hour the range is then 27 kilometers. Sufficient for most water sports enthusiasts.
• You can also connect the E40 battery 2048wH or other AGM or LiFePO4 (for this you need a special external E-series battery cable 1.5 meters 159,- Article number 00-0601-08

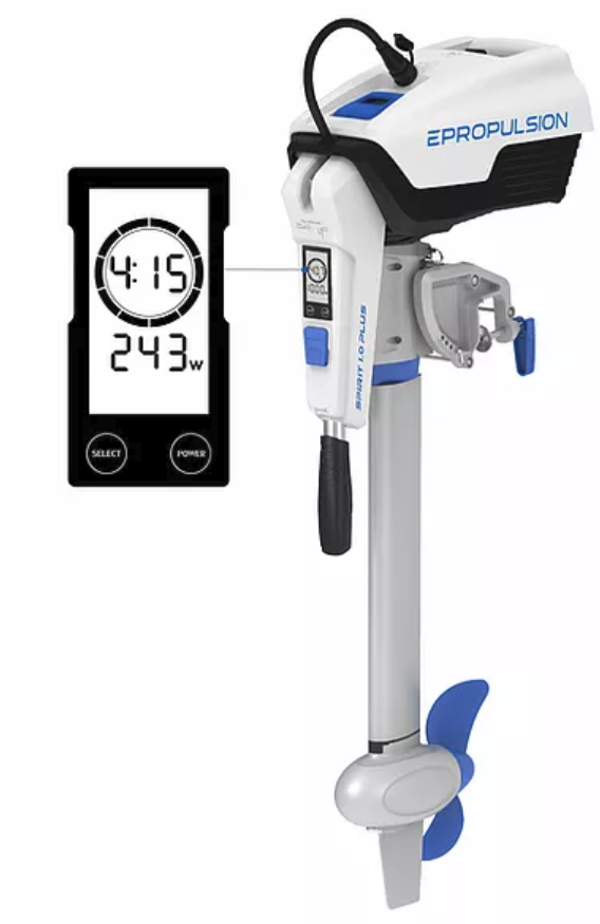

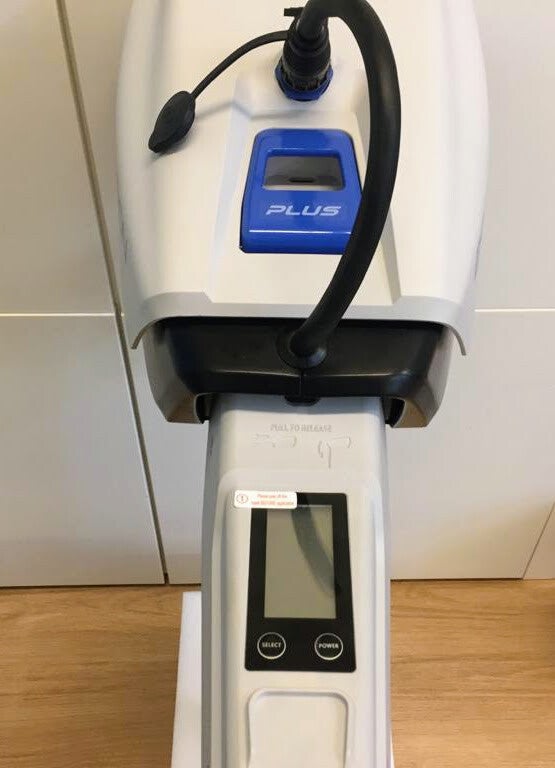

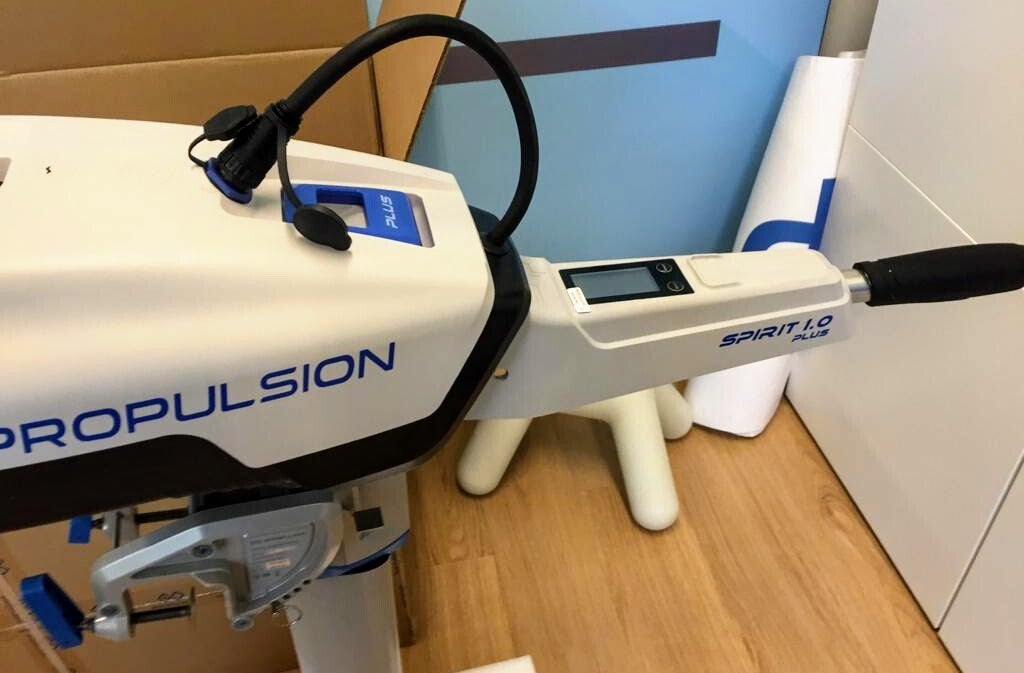

• Supplied as a complete set: The Spirit 1.0 Plus comes with a complete package: you will receive a multifunctional display, screw, battery, charger and intelligent key (select variant with battery).

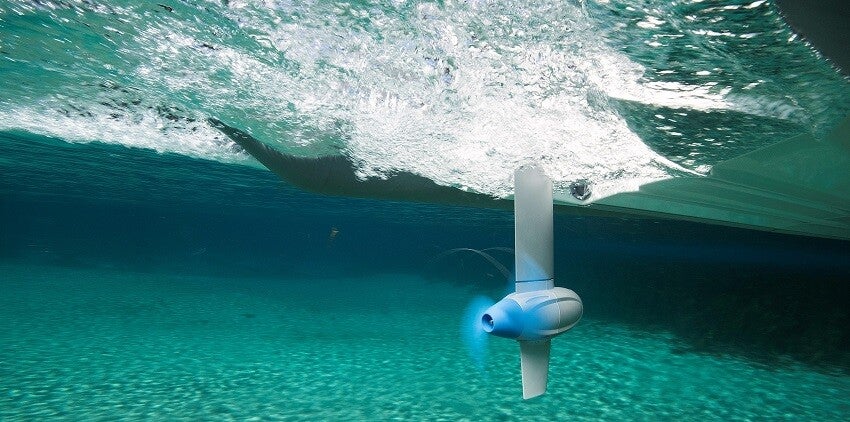

• Amazing silent : The Spirit 1.0 is virtually silent with a direct-drive motor. There is no gear transmission which means less friction in the motor. The noise level of the Spirit can be compared to the noise level of an electric toothbrush. Fancy a relaxing trip? That is exactly what electric boating offers.

• Electric start: No longer pulling like with a combustion engine.
• Maximum power adjustable: Safe for children, for example.
• Left-handed friendly: You can accelerate by turning the throttle to the left or right.
• Maintenance free : The Spirit Plus 1.0 is a game changer. Much less time spent on maintenance or winterizing. Only replace the rust-resistant anode after 200 hours when necessary and grease some parts. Spend less time on your outboard and more time enjoying the water.
• More economical than a combustion engine: 1 hour of full throttle sailing with the Spirit costs less than 0.25 euros (1 kWh). 1 hour of full throttle with a 3hp fuel engine costs about 1 liter = 1.80 euros. A fuel engine needs an annual minor maintenance service (110 euros) and sometimes a major service (200 euros). So with 50 hours per year you save more than 225 euros in costs! After only 3 years of sailing electric boating becomes the most beneficial (a combustion engine is approximately 50% cheaper to purchase).
• Automatically turns off after half an hour of inactivity.

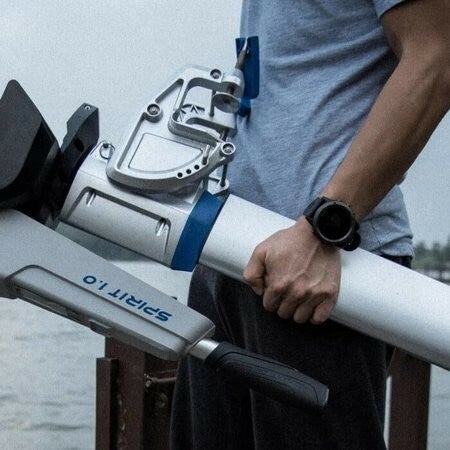

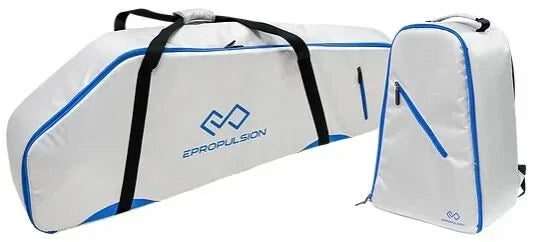

• With a total weight of 19 kilograms including the battery, the set is portable especially with the accompanying ePropulsion Spirit 1.0 Motor and Battery Bag. The control lever (stick) is easily foldable.
• In case of damage caused by sailing, the coverage falls under your private liability insurance. This usually covers up to and including engine power of 1 kW.
• Advantages of electric boating: A premium boating experience . Electric boating is clean, quiet and requires less maintenance. Compared to other electric boating options, ePropulsion stands out as a technological pioneer with guaranteed quality. ePropulsion promises to amaze you and can deliver the boating experience you want.
  • Why electric boating?

    • Environmentally friendly : Zero greenhouse gas emissions and the engines will not leak oil or fuel.
    • Carefree transport: No stains or odors in your car when transporting fuel or engine.
    • No harmful exhaust fumes : A boat trip with family and friends without the dirty exhaust fumes. Choosing an electric motor means that no harmful substances are inhaled by you and your passengers.
    • Save on maintenance costs: A combustion engine requires an annual minor service (110 euros) and sometimes a major service (200 euros).
    • Subsidy : Electric boat engines and lithium batteries are eligible for Environmental Investment Deduction and Arbitrary depreciation of environmental investments for vessels that are used commercially. The tax benefit can amount to more than 14% of the investment amount with the MIA\Vamil.
    • Why ePropulsion?
      • It best product for the best price : With ePropulsion you get more horsepower and battery capacity at a lower cost. ePropulsion products are more technologically advanced, more reliable and of higher quality.
      • Pioneer in technology: ePropulsion is the first company to offer advanced technologies such as FOC (field-oriented control), a maintenance-free closed-loop fluid circulation that you won't find on any other outboard.
      • High demands on customer satisfaction: This is noticeable in the quality of the products, the finish and the after-sales service (good technical support in the Netherlands and Belgium).
      • Quality Control: ePropulsion maintains strict quality controls and innovates faster than others.
      • Focus on electric boating: The focus has always been on improving the experience of electric boating. To achieve this, the past six years have been spent on research and development. Ease of use and experiences are central.
      • Attention to detail: Every detail matters and affects the performance of your outboard. That's why ePropulsion stays detailed from production to design. It's the smaller details that create the best user experience.
• Available in:

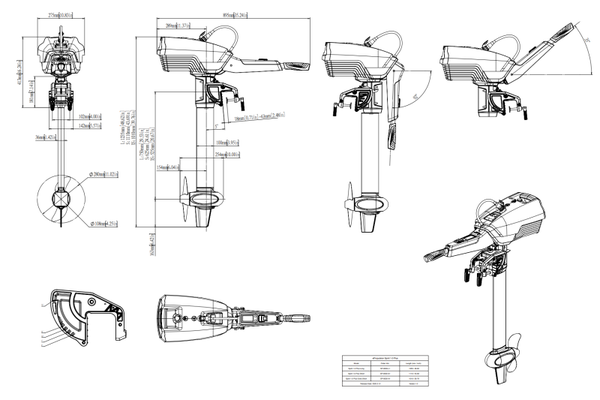

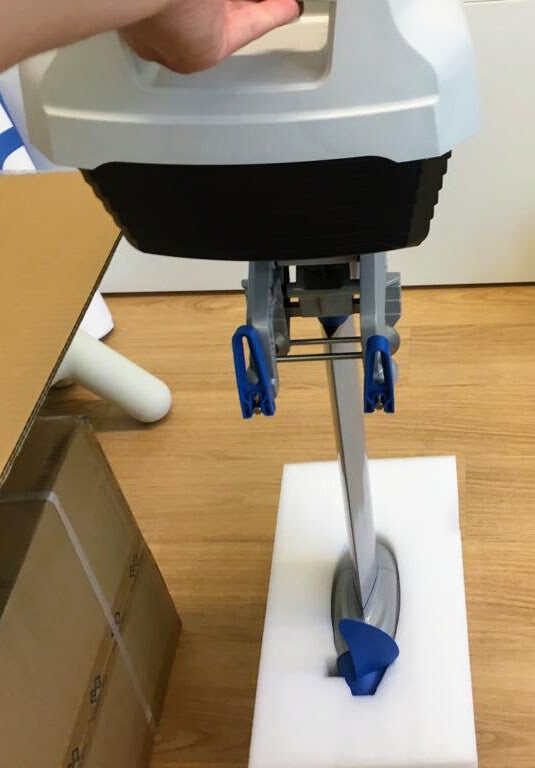

  • Extra short shaft (shallow water or for mini boat, transom height 30-40 centimeters). Dimensions: 884 mm × 275 mm × 942 mm and shaft 525 mm (XS)
  • Short tail (mirror height 40 to 50 centimeters. Dimensions: 884 mm × 275 mm × 1042 mm and shaft 625 mm. EAN number 6971312631524;
  • Long tail (mirror height longer than 50 centimetres). Dimensions: 884 mm × 275 mm × 1167 mm and shaft 750 mm.
    Please note which length you need, as this differs from fuel engines.
    The transom height is the distance from the top where the engine rests to the bottom of the boat. For most small inflatables and aluminum boats shorter than 4.5 meters either extra short shaft or short shaft will work regardless of the shaft length.
    ---

Specifications:

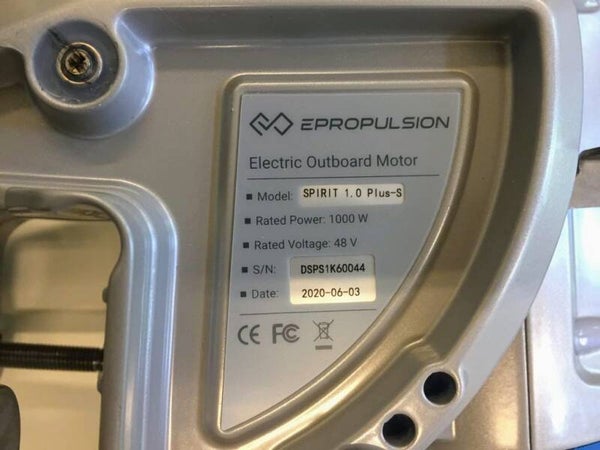

• Article number SP-0000-X1 (extra short shaft with battery) / SP-0000-S1 (short shaft with battery) / SP-0000-L1 (long shaft with battery)
• Article number SP-1111-X1 (extra short street without battery) / SP-1111-S1 (short tail without battery) / SP-1111-L1 (long tail without battery)
• EAN code: 6971312631500 (extra short tail) / 6971312631487 (short tail) / 6971312631470 (long tail)
• Power 1000 W / 3hp / 150 LBS (4hp) (1,500-3,000 kilograms thrust)
• Engine weight 10.6 kilograms
• Rated Current: 20.8 Ampere
• Input voltage: 39 Volts to 60 Volts
• Maximum Overall Efficiency: 55%
• Tail length: 525 mm (extra short tail), 625 mm (short tail), 750 mm (long tail)
• 360 degree rudder, lockable
• Drive: Infinitely variable
• Motor: Brushless DC motor, so less maintenance, with Direct Drive

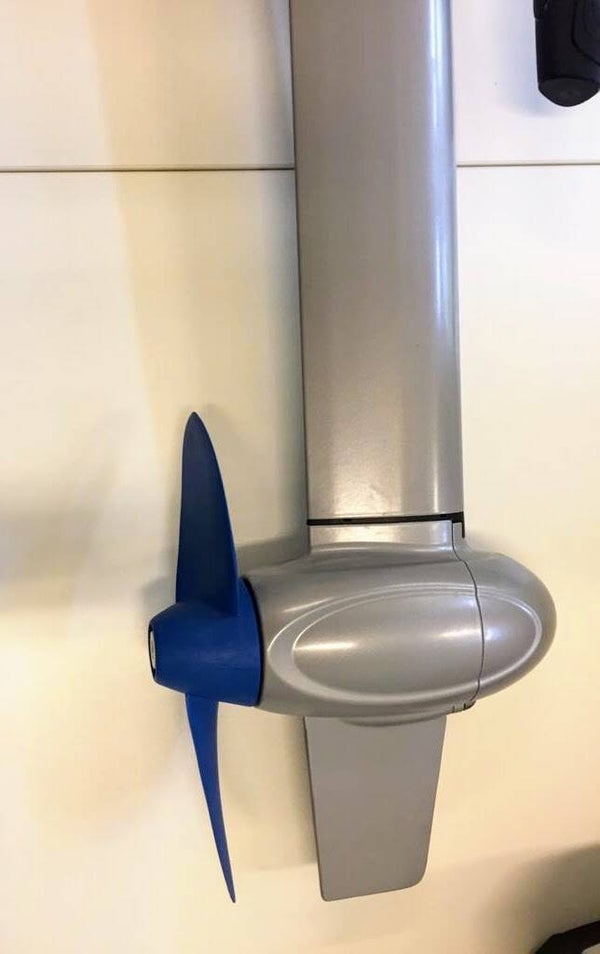

• Propeller Diameter: 28 centimeters by 15 centimeters 2-blade composite propeller
• Propeller speed: 1200 revolutions per minute
• Saltwater suitable

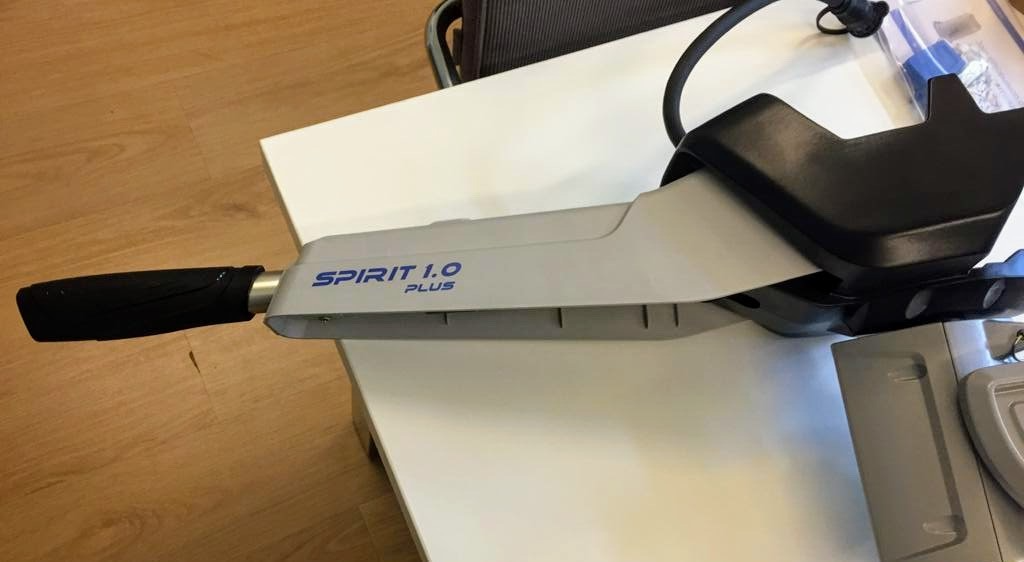

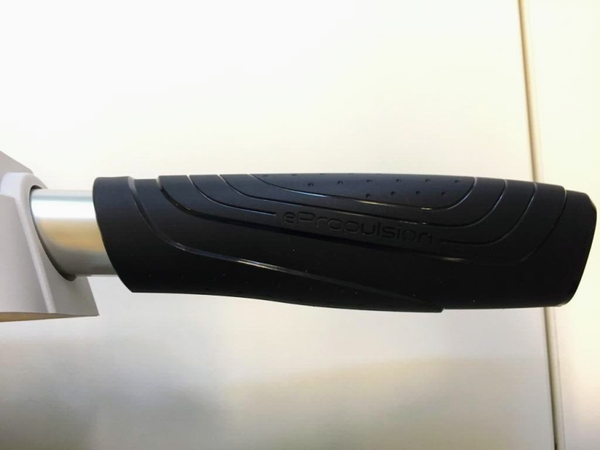

• Control Tiller (Tiller / Tiller)
• Steering: 360°

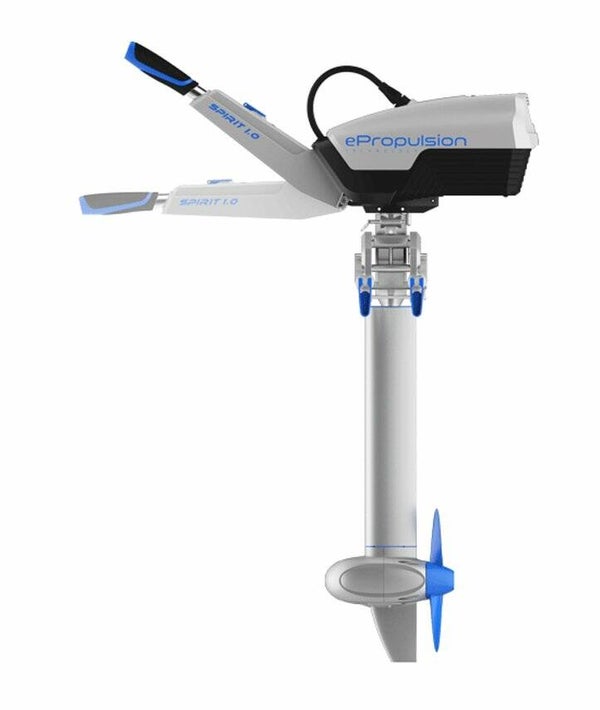

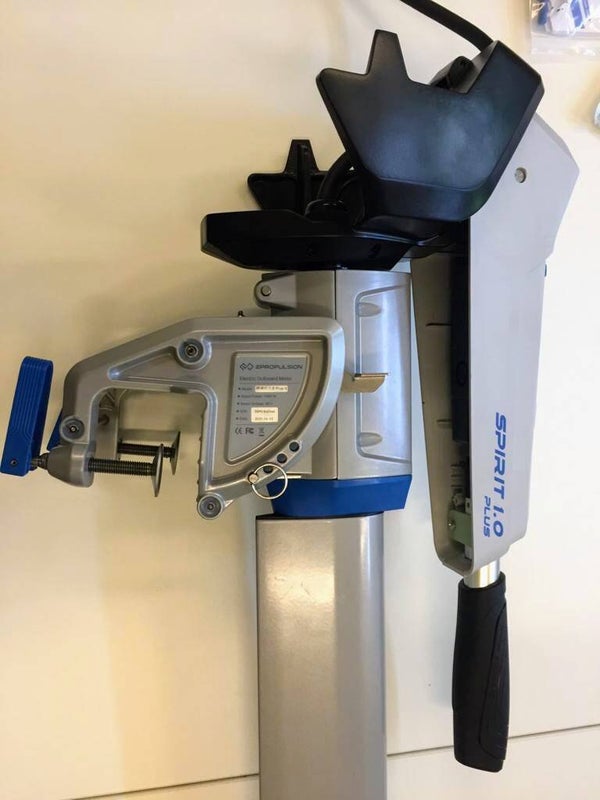

• Upward tiltable: yes Maximum tilt angle: 70°.
• Trim: Manual in 4 positions: 0°, 7°, 14°, 21°, 70°. Trim up to 75 degrees. This allows you to position the engine out of the water after sailing to prevent algae growth. The other 3 positions can be set depending on your boat and speed to obtain more efficiency.
• Manual

Battery (included) - also available without battery

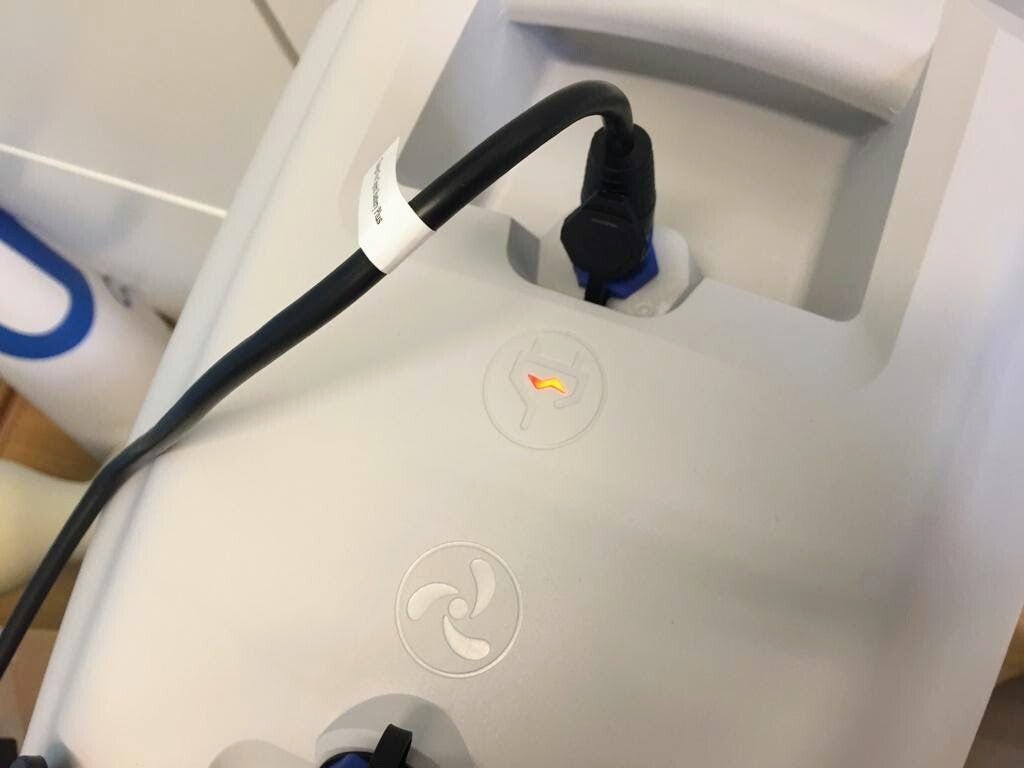

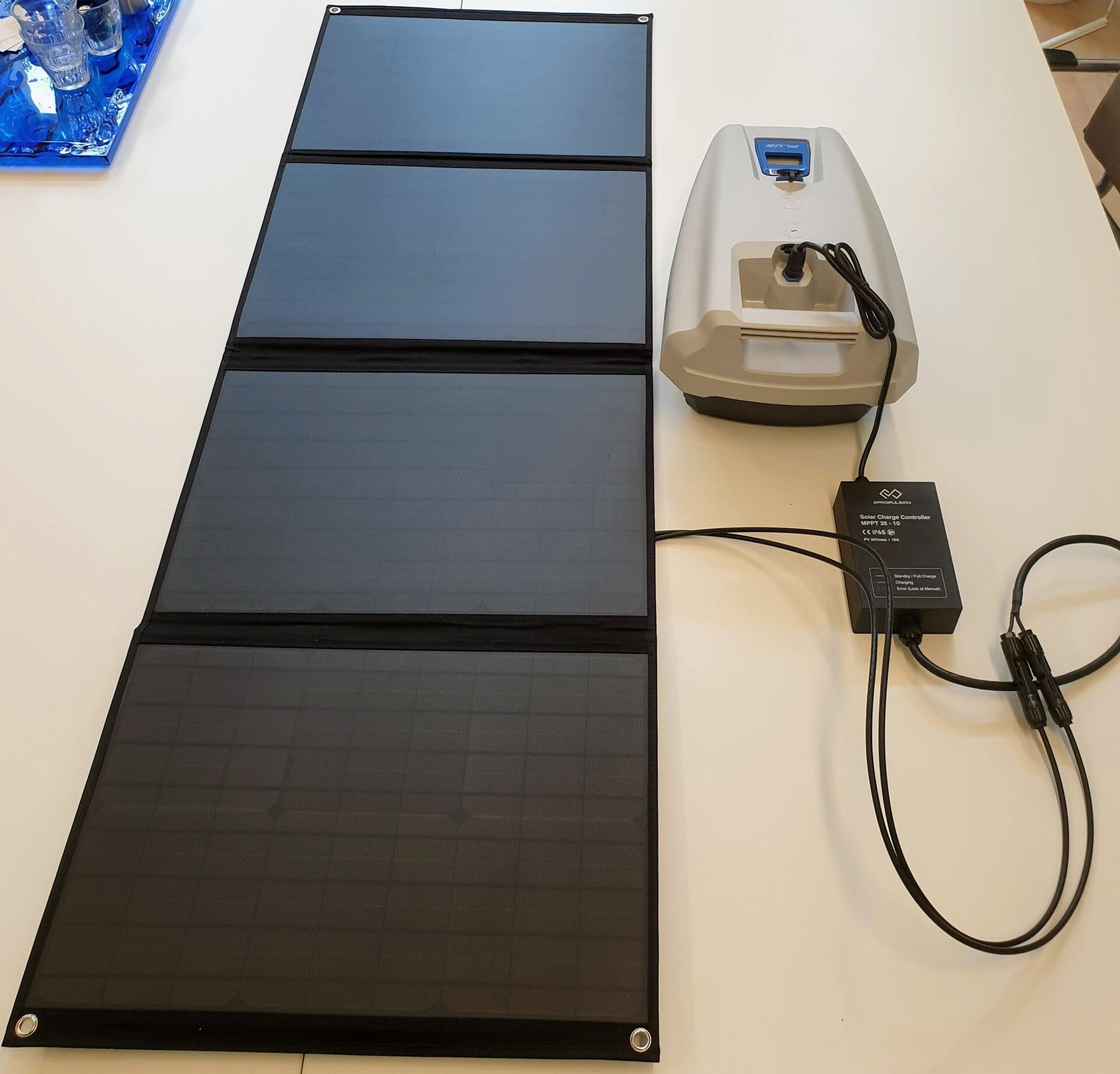

• Charging the battery: The Spirit battery has independent charge and discharge ports, so you can connect the charge port of the battery to an input power source while it is discharging. On a sunny day, you can connect the Spirit battery to a foldable solar panel while boating and the battery can last a full day at an economical speed.

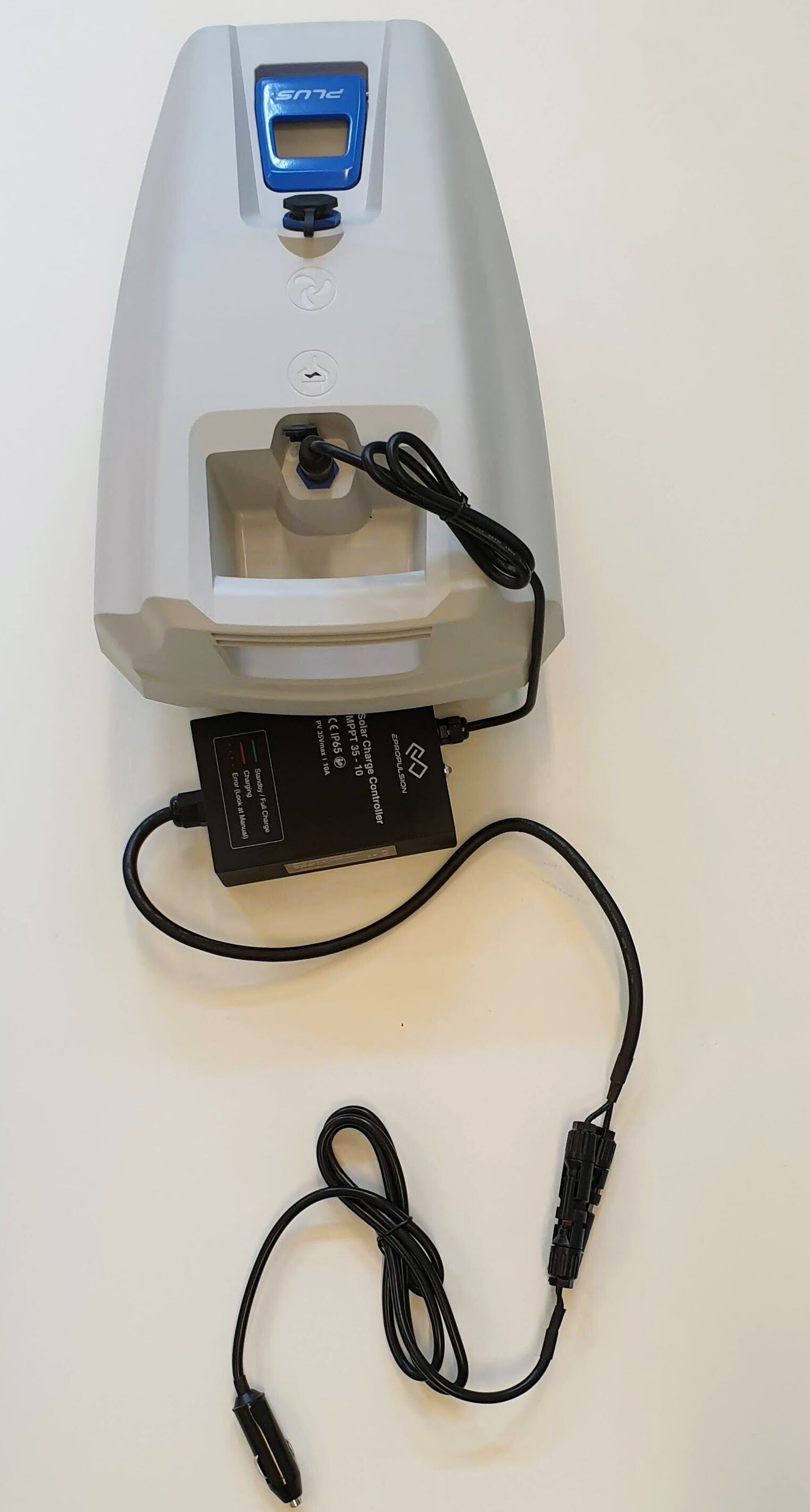

• Charging time: 8.5 hours (standard charger included). Fast charging with the fast charger (optional): 3 hours. Charging with a 12 Volt charger in the car or boat is also possible. Or even with a solar panel or generator while sailing.
• Weight: 8.8 kilograms
• Battery type Lithium/Polymer. Advantages:
  • No maintenance required
  • Very low self-discharge
  • No memory effect, can be loaded at any time
  • High charging currents possible, allowing for faster charging
  • Constant discharge voltage, which ensures that the device provides a stable current throughout the entire discharge period
• Capacity: 1,276 Wh
• Rated Voltage: 45.6 Volt
• Cut-off Voltage: 33.6 Volt
• Fully Charged Voltage: 52.2 Volts
• Lifespan: ≥500 cycles (80% of Rated Capacity). The battery can remain at 80% capacity after more than 500 cycles at 80% DoD (Rated Capacity).
• Charging temperature: 0°C ~ 45°C
• Operating temperature: -20°C ~ 60°C
• Dimensions (L×W×H): 416mm × 275mm × 202mm

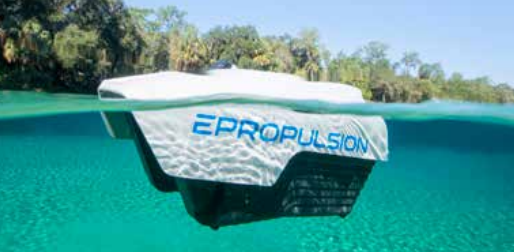

• The battery is IP67 waterproof: Complete protection against dust and is so waterproof that it can be submerged (up to 30 minutes at a depth of 1 meter).
• You can also connect the E40 battery 2048wH. For this you need an ePropulsion Spirit Plus external E-series battery cable 1.5 meters and possibly an ePropulsion Spirit 1.0 Plus hood.

• Advantages of electric boating
• How fast can I sail?
• How much engine and battery power do I need?
• How long and how far can I sail?
• How much money do I save?
• Read all about it here
  and calculate it for your own boat.

Reviews

• Since this summer the owner of Gentle 430. A wonderful boat for 6 people. With the boat we bought the E-propulsion Spirit (motor). Silent, but very strong and a great battery life. Dico
• Very satisfied with the Epropulsion Spirit 1.0 PLUS - whisper quiet and very powerful, highly recommended! René December 22, 2020
• I like this extra short tail! We tried it out this afternoon and this engine is just right. It still sits well below the waterline and tilted it almost sticks out above the water. Absolutely fine. It also sails great, full throttle between 8 - 9 km / h. At third of power we get between 6.5 and 7 km / h. It is striking that if you turn the power down considerably, the speed does not even decrease that much while the action. radius increases considerably! Dirk Jan May 2021.
• Great product, well made and delivers performance, convenience, portability and QUIET! Would give 5 stars except for two things: 1) the tilt mechanism keeps the prop from fully coming out of the water; 2) the short shaft is still quite long, too long actually. I would go EXTRA short shaft if you think you need a short shaft. But performance wise the ePropulsion meets all my expectations. Not only is it quiet but the fine control for docking is far beyond anything a gas outboard can deliver. Starting/stopping etc is completely silent and effortless. Also impressed with the battery life and rechargeability - we are using this on a tender replacing a larger Yamaha gas outboard. On my first 5 day trip with the Spirit 1.0 I used it to go to shore or across a bay 2-3 times per day for 5 days and only used 40% of the battery. While at anchor and running my generator for an hour, I charged back up to 15% capacity. When running the boat, charging via my alternator, I fully charged to capacity (from 60% balance to 100% balance) in 2.5 hours of boating. The battery life seems so good, and charging so efficient, that I do not need a 2nd battery, which was a concern/consideration. Finally, I enjoy wildlife photography, and the ease of use combined with near silent operation allows for close proximity to wildlife to capture images that would not be possible with a gas outboard. Highly recommended! Mark Leopold August 13, 2019 Source
• Very happy with this purchase, these electric motors make perfect sense now and I am very glad I ditched my old Nissan 8hp for this 6hp electric. It is completely silent with no gas or oil leaks to worry about.Matthew Terrill April 12, 2019
• Excellent: easy to use and store; get many shore trips on one charge. Love it. David M.
• After using the outboard for a couple of weeks and running it for around 10 hours in a range of conditions from calm to heavy Atlantic waves I am very happy with it. As expected I had to modify the outboard on my Drascombe Scaffie quite a bit to give more clearance but it was worth it and the extra short shaft length is absolutely perfect. My daughter has referred to the whole process as "sailing without the sails up Rick - 16 May 2018
• I've been playing with the ePropulsion all weekend and I'm a little bit in love. Here are some observations: - the ePropulsion is definitely faster than the torqeedo (at least the 1003 I had). We get an extra half knot at half power and a whole extra knot at full power. This may have to do with the fact that it is more effective for heavier loads, Amélie weighs about 700 kg. I no longer hold up faster boats behind me when I leave the lock. We can start at a very respectable 7 kilometers per hour (where the torqeedo topped out at 5.5).
  - the ePropulsion reacts faster than the torqeedo. I don't know if it's the gearbox, but the power is seemingly instant, which is a real bonus when you're dodging a racing dinghy that's been blown off course.
  - We found the ePropulsion to be virtually silent at times. There were a couple of occasions when we were sailing into the wind and didn't even notice the engine was still running!! I wondered how we were doing 7 mph
  - battery is good! On a 7 nm trip we used half the battery both days. This was a combination of driving, sailing & motorsailing. At least half the time it was running.
  - The ePropulsion beats the tide!! The torqeedo just couldn't handle this.
  - ePropulsion is more agile
  - the battery may be heavier, but the bag is great! Since it is a backpack, it is much easier to carry despite the extra weight. Seems to be of better quality too.
  Overall, I'm quite pleased and glad I went for it.
  RD Rainham - July 19, 2018.
• It has been a fantastic change for us to have the peace and quiet of the electric motor on the River Thames during the summer. The performance has been quite good, we can get the boat (a Drascombe Lugger) up to about hull speed but at 4mph or so (the max speed on the river is 4-5mph) we are comfortably getting between 4 and 5 hours of power. We usually only do between 3 and 4 and that probably includes a lunch or sundown drink before anchoring/bank tying or a dip in the swim so we haven't really tested the motor to 'Max'.
  Apart from the quietness, the simplicity of the engine in terms of starting, restarting and changing gear has given Erica a lot more confidence to go out on her own with the boat (she never quite got the hang of the petrol outboard). The other real advantage is that once we have removed the battery, the engine is so light that we always take it off the transom and store it underneath - there have been many cases of outboards being stolen. I hope all goes well, the engine has attracted a lot of interest from other River users, who all can't believe how quiet it is. Ian Bron
