- Direct-drive motor for high reliability and ultimate silent operation.
- Hydrogeneration > delivers charging current to the battery if the propeller rotates during sailing, for example!
- The ePropulsion Navy 3.0 is a 3 KW electric outboard motor and is the solution if you want to sail sustainably and comfortably.
- The Navy series electric outboard motors are very agile and deliver efficient power.
- Comparable to a 5 hp (propulsion power) to 8 hp (thrust) petrol engine.
-
The motor is suitable for bringing boats from 900 to 2,700 kilograms to cruising speed and boats from 300 to 950 kilograms to hull speed.
If you want a motor with more power, go for the Navy 6.0.
- With most boats up to 7 meters, you sail at 1 kW power (and therefore 1 kWh battery consumption per hour, about 7 kilometers per hour). With a 4 kWh battery you then have a minimum range of 28 kilometers, which is sufficient for most sailors' daily range.
- Sleek, easy to use, and environmentally friendly. This outboard motor enriches your boating pleasure!
- Integrated display and freedom of control: The integrated display shows you all the necessary information. The Navy 3.0 Remote can be controlled with a single-cable steering control or a tiller arm control.
- Impressive thrust: Green power and top performance come together here.
- Optimal propeller efficiency: The intensive development process includes hundreds of hours of design and research into the most efficient product. This ensures that all aspects of the marine propeller are optimized to the highest level.
- Closed cooling: The Navy 3.0 is the first mass-produced outboard motor to be equipped with a closed cooling system for liquid cooling. The cooling system is completely closed and does not use outboard water. Keeps the motor at a safe temperature under all circumstances.
- Review Jan Romeijn April 8, 2024, with a 750-kilogram console boat "Saturday was the first time I went boating with the new E Propulsion Navy 3.0. I sailed for 6 1/2 hours straight and I must say I really enjoyed it, very quiet and if necessary I can still reach 10 km, I was alone in the boat but with 1 or 2 more people it won't be a problem."
- Available in short shaft (transom height 30 to 40 cm) or long shaft (transom height 40-50 cm). The transom height is measured from the top surface where the motor rests to the bottom of the boat.
- Easy installation.
-
Subsidy: electric boat motors and Lithium batteries are eligible for environmental investment tax relief and arbitrary depreciation for environmental investments for vessels used for business purposes. The tax benefit with the MIA\Vamil can amount to more than 14% of the investment amount.
- Technical drawing (Navy 3.0 Remote)
- Manual (Navy 3.0).
- Brochure
---
SPECIFICATIONS
- Article numbers and EAN codes
- NE-3000-S0 NAVY 3.0 Evo Shortshaft NAVY 3.0 Evo-S 6971312632002
NE-3000-L0 NAVY 3.0 Evo Longshaft NAVY 3.0 Evo-L 6971312632019
- Power 3,000W / 48 Volt
- Weight: 22 kilograms
- Shaft length 650 mm (short shaft), 775 mm (long shaft)
- Trimming Manual in 4 positions
- Stepless drive
- Propeller diameter 320 mm
- Excluding: Battery: minimum 63Ah. Assume a consumption of 1 kWh and 4 hours of sailing from a 4 kWh battery. Recommended: ePropulsion E80 LiFePO4 Battery 4.1 kWh 48V. At 8 kilometers per hour, the range is then 32 kilometers. Sufficient for most boaters.
- Premium fiber-reinforced nylon propeller 260 × 171 mm (product number N3-LU05-00).
- LCD Screen: The remaining battery hours are displayed in real-time on the LCD panel. The battery constantly sends accurate real-time information, including remaining battery hours, battery capacity, battery voltage. And also speed, remaining range/hour, traveled range/hour, etc.
Options (necessary for a complete installation):
-
At Marinaut, operation is included:
- Top mount remote control.
- Integrated 5 centimeter (2 inch) display shows all information in real time, including battery status, traveled/remaining range, speed, power, and error reminders.
- Charging with the integrated solar panel.
- Includes kill cord for emergency stop.
-
Support for both wireless and cable connection (cable excluded). Wireless communication distance up to 10 meters
- Can also be connected to ePropulsion Wristband with kill switch
- Article number NE-RC00-00
- EAN number 6971312631906
- Weight 0.65 kilograms
- Dimensions (Length x width x height) 193 mm x 130 mm x 112 mm
- or Side control:
- Suitable for Spirit Evo, Navy Evo, and Pod Drive Evo
- The display provides the following information:
- speed
- remaining battery capacity/sailing time
- sailing time
- actual sailing power in Watts
- The package includes the ePropulsion Side Control Handle, an 8-centimeter screen, and a communication cable (0.5 meters (to connect the display) and 2 kill cords.
- Includes ePropulsion communication cable Spirit and Navy 5 meters
- The side control handle and display have a sleek finish.
- View the manual and quick start guide here.
- You can also set up batteries other than ePropulsion, and then you will see the voltage and the estimate of the remaining sailing time.
- You can also limit the motor power both forwards and backwards. Useful for rental.
- You only need a steering cable (from about 100 euros) and a steering wheel (from about 30 euros).
- or ePropulsion Navy Tiller; this also allows you to control the motor without a remote control (steering) but via the tiller/tiller. Article number NE-TC00-00.
- Option: Steering bar for 2 motors 245,-. Both a longer and shorter version are available. Two variants 700-900 mm Article number 00-0800-02. If you want to install 2 motors, the transom plate must be longer than 120 cm and the space between the motors more than 60 cm.
-
Option: dual control for 2 motors. With the Evo Dual Remote Control, you can control sync two motors in one operation. It is also possible to control the two motors independently. Integrated 4.3-inch (11 centimeter) display shows all information in real-time, including battery status, traveled/remaining range, speed, power, and error messages (for both motors separately). Article number NE-DR00-00 EAN number 6971312631920. 795,- including communication cables.
Product comparison
About electric boating

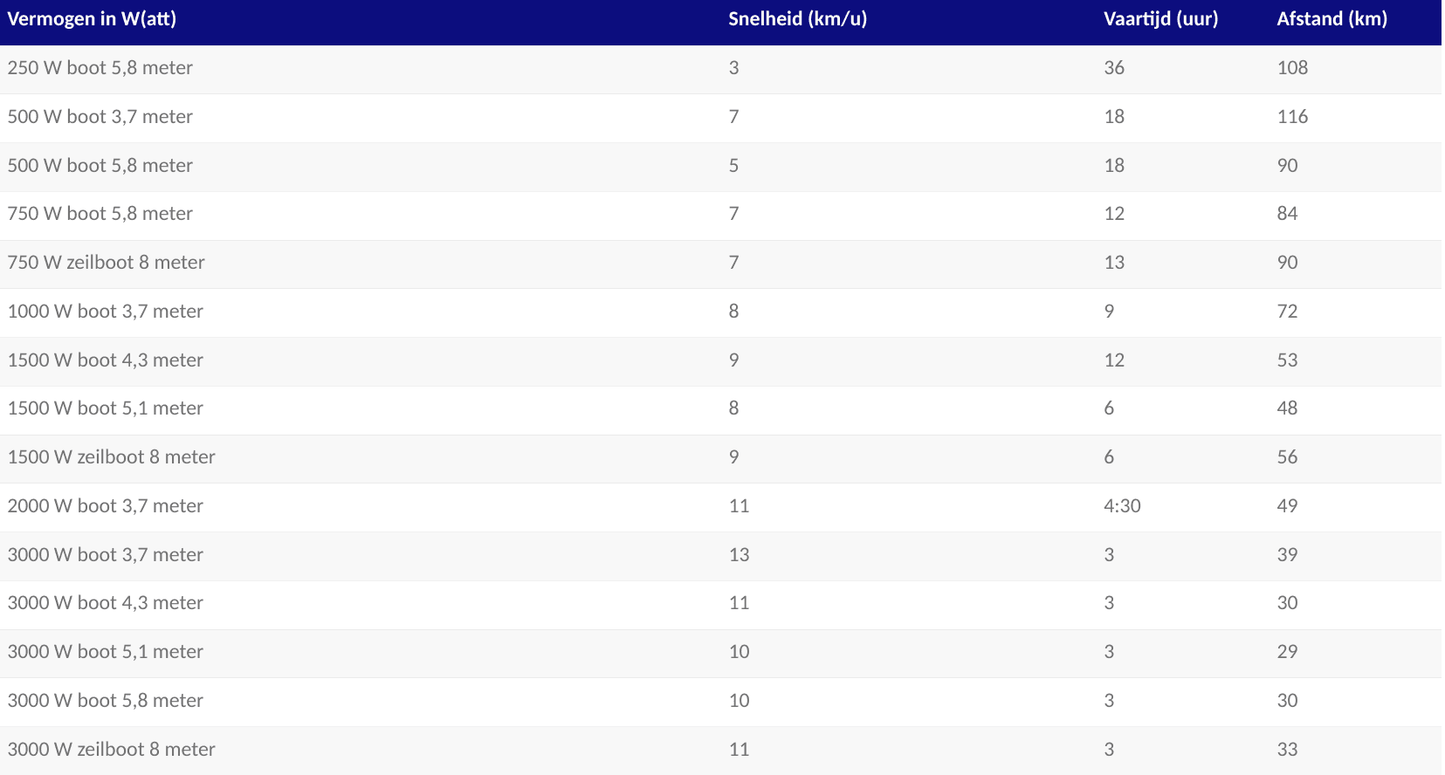

Sea trial 2: 495 sloop with three people: at 200 Watts 4 kilometers per hour, 500 Watts 6 kilometers per hour, 1,000 Watts 7 kilometers per hour, 2,000 Watts 8 kilometers per hour, 3,000 Watts 9 kilometers per hour. With 4 kW of battery, your range will then be well over 50 kilometers, more than sufficient for the average boater.
Sea trial 5 boat 5.8 meters: Gentle 590 Number of people: 2, Hull: rigid, Weather: little wind, Dry weight kg: 750 (estimate)
Sea trial 6 boat 3.7 meters: Number of people: 1, Hull: rigid, Weather: no wind, Dry weight kg: 60 (estimate)
Sea trial 7 boat 4.3 meters: Test date: August 22, 2019, Number of people: 1, Weather: Calm, Boat Quintrex 420 Explorer, Length 4.3 meters, Beam mm: 1880, Dry weight kg: 132, Hull: rigid, Test report.
Sea trial 8 boat 5.1 meters with an ePropulsion Navy 3.0: Number of people: 1, Weather: Calm Boat: Silveryacht 525 sloop, Length mm: 5100, Beam mm: 2050, Dry weight kg: 400 Test video, Test report.
Sea trial 9 sailboat 8 meters, 2,000 kilograms with an ePropulsion Navy 3.0: United Kingdom Test report Test report
Test reports where smaller batteries were used, the range has been converted.
