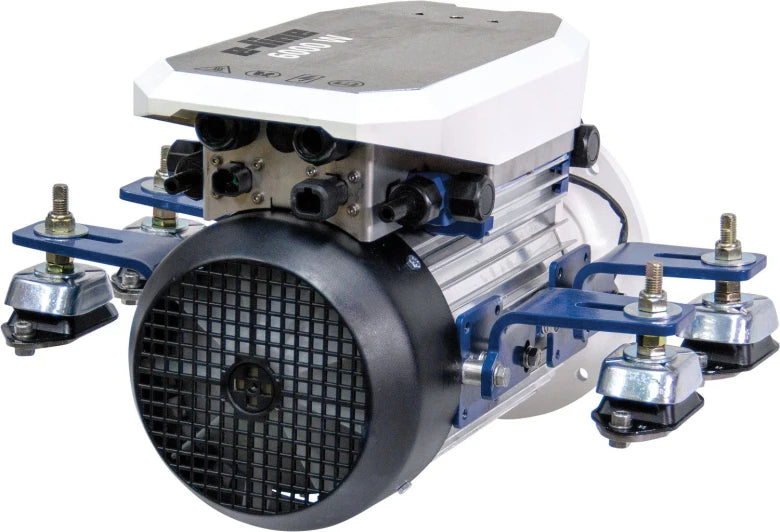

Vetus E-LINE e-drive electric inboard motor 6 - 22 kW 48V

Marinaut DOES include Connection material and throttle (€ 1,292)

E-LINE e-drive inboard propulsion engine 6-22 kW

Added value: truly silent, Vetus quality.

The compact and efficient 48 Volt E-LINE packages are suitable for both re-power solutions and new builds, enabling silent, environmentally friendly cruising with exceptional maneuverability.

VETUS electric boating solutions
Compact, complete, highly efficient, plug & play, and suitable for both new and existing vessels – that's how VETUS envisions electric boating.

Silent electric enjoyment

Enjoy undisturbed peace, unlimited cruising, and a carefree watersports experience at the touch of a button. VETUS' smart and modular electric propulsion systems are easy to install (also as a refit) and stand for performance, savings, and convenience. With a VETUS electric propulsion system, you are always ready for a wonderful time on the water. A whole day of pure enjoyment is now within your reach.

With VETUS E-DRIVES, you get closer to yourself, nature, family, and friends

Years of development and thousands of hours of testing were dedicated to developing proprietary technologies that virtually eliminate noise without sacrificing performance. And because VETUS E-DRIVES comply with all environmental regulations, you can say goodbye to more than just the sound of a diesel engine. Emissions, fumes, exhaust gases, and environmental restrictions are also a thing of the past!

Experience long, carefree days on the water

VETUS E-DRIVES offer you optimal cruising comfort. No need to wait for the engine to warm up... you step aboard and can go! And thanks to the high starting torque, you'll be on your way quickly with a powerful and fast-accelerating engine.

You have a choice of three propulsion modes: NORMAL, ECO, and POWER. In ECO mode, the maximum power of the E-DRIVE is limited, giving you maximum range. POWER mode unleashes peak power for quick maneuvers. This allows you to reach up to 13.3 kW at 1,600 rpm. Peak power is available for fifteen minutes per hour.

You never have to worry about your day on the water ending sooner than planned. With VETUS electric propulsion systems, you have access to a comprehensive set of real-time data. You can therefore always keep an eye on your battery and range. And with the right battery bank, you can easily sail all day.

Compact, all-in-one design

Don't judge a VETUS E-DRIVE solely by its compactness. Just because it takes up little space doesn't mean it doesn't offer a LOT. VETUS electric propulsion systems offer countless intelligent cruising benefits:

Sailing Assist gives you multiple engine mappings with adaptive RPM curve technology for maximum efficiency.
Active electric braking technology enables fast and active maneuvering. Going astern in an instant or stopping within a boat length is a reality.
Advanced engine electronics feature a battery protection function that protects your battery bank from damage and extends its lifespan.
The patented engine control unit actively monitors the battery to prevent unwanted damage.
With the Boosted Battery Charge function, a 48VDC battery bank can be charged with a 24VDC charger. This innovative solution makes it possible to build boats with a safer network due to the lower voltage.

Easy refits

VETUS electric propulsion systems are designed with compactness and easy installation in mind. The included mounting brackets and engine mounts allow for a quick refit. Thanks to the mounting brackets with engine mounts that can be easily adjusted in height, length, and width, and whose angle can be changed (0° or 8°), VETUS E-DRIVES can be installed on almost any existing engine foundation. In addition, VETUS electric propulsion engines are designed to be compatible with your existing propeller and propeller shaft.

Costs?

Worried about switching to electric? No need. In the long run, VETUS E-DRIVES will make your boating experience better, cleaner, and cheaper. No gaskets, air or fuel filters to replace, no oil to change, and no carburetor to clean – that means less downtime and lower maintenance costs. And because you also have no fuel costs, an electric boat ultimately costs less.

Peace of mind with VETUS

VETUS has more than 25 years of experience in groundbreaking designs and technology in the field of electric drive systems, plus almost half a century of experience in the best production methods and strict quality controls.

Active electric braking
The E-LINE engine and E-POD system accelerate more powerfully and faster than a diesel engine. Moreover, this electric propulsion works without a reverse gear. This means that when reversing the propeller, the complete high-speed electric motor must immediately come to a standstill and then rotate in the opposite direction. To be able to maneuver quickly astern, as with a reverse gear, VETUS has developed Active Electric Braking for the E-LINE and E-POD. This uses the high torque of the electric motor to quickly and actively change the direction of rotation. With Active Electric Braking
it is possible to bring the boat to a standstill within one boat length. Full control and a familiar way of sailing, with the benefits of a high-torque electric motor.

Battery protection function

The battery protection function of the VETUS electric propulsion motor ensures that the battery pack is not unnecessarily overloaded and that the lifespan of the batteries is longer than just the current sailing season. Discharging the battery bank below the specified voltage damages the batteries and reduces their lifespan. To prevent this, the patented VETUS Motor Controller actively monitors the battery bank based on voltage and current consumption.

Boosted Battery Charge function

Another unique feature of the VETUS e-drive motors is the Boosted Battery Charge function. With the Boosted Battery Charge function, a 24 VDC charger can be used to charge the 48 VDC battery pack of the propulsion. This is an advantage as 24 VDC battery chargers are used much more frequently. Moreover, this offers the yacht builder the possibility to integrate the drive into a 24 VDC electrical onboard network in a simple way.

A long day on the water with peace of mind, now and in the future

Thanks to the cleverly applied water cooling, you get maximum power from the engine and maximum range from the batteries. A full day on the water without limitations. The control panel makes it easy to measure the energy level, and with the right battery pack, you can sail all day.

VETUS' vision for electric boating is compact, complete, highly efficient, plug & play, and suitable for both new and existing vessels. VETUS electric propulsion is integrated with our V-CAN bus system and naturally complies with all emission requirements. Silent, infinitely adjustable, and equipped with robust overload protection: the ideal partner for a comfortable trip!

The VETUS e-drives (E-LINE and E-POD) work with V-CAN, just like the VETUS proportional bow thrusters (BOW PRO). This internally developed CAN control system means fewer cables through your boat, robust and reliable operation, and is easily expandable.

Unique features

Wonderful relaxation on the water with only the sounds of nature
Emission-free boating with the performance of a diesel engine
Low maintenance costs
VETUS offers a unique 5-year warranty on engines and a worldwide service network, so you can always count on support.

Versions

Model	Voltage	Power (Nom/Peak)	Max. Torque	Max. Speed	Weight	Dimensions (LxWxH in mm)
EAIR05024	24V	4.9 / 6.0 kW	40 Nm	1300 rpm	68 kg	518 x 504 x 380
EAIR050	48V	5.0 / 6.3 kW	50 Nm	1300 rpm	68 kg	518 x 504 x 380
EAIR060	48V	5.6 / 7.1 kW	55 Nm	1350 rpm	68 kg	485 x 504 x 335
EAIR070	48V	7.1 / 8.6 kW	65 Nm	1450 rpm	68 kg	518 x 504 x 380
ELINE080	48V	8.4 / 9.3 kW	60 Nm	1500 rpm	69 kg	485 x 504 x 335
ELINE110	48V	11.3 / 13.3 kW	70 Nm	1600 rpm	71 kg	485 x 504 x 335
ELINE220S	48V	22.0 / 24.1 kW	130 Nm	1600 rpm	85 kg	614 x 504 x 335

Complete package

Engine at Marinaut is complete, therefore including:

MPE1KB key switch
- all-in-one; V-CAN power supply, 12 VDC cooling water pump power supply, and anti-theft device. The V-CAN and the 12 VDC cooling water pump are switched on with the ignition key.
- Compact design and high-quality materials
- Stylishly designed aluminum bezel (85 x 85 mm)
- Quick installation in a Ø 75 mm hole
  • Can be installed in a double frame (XTASF2P 167.5 x 85 mm)
  • Waterproof IP65 (Dustproof and protected against water jets from any direction)
  • V-CAN certified CANBUS protocol
  • Power supply 12 VDC
  • Reverse polarity protection for V-CAN output
  • Switched output V-CAN plug 12 Volt DC, protected with 5 Ampere fuse maximum.
  • Switched output 12 Volt DC, protected with 30 Ampere fuse maximum.
  • LED indication when in use
  - This control lever allows three propulsion control modes: NORMAL, ECO, and POWER mode. Pressing the ECO mode button limits the maximum output power of the e-drive. In ECO, POWER mode is not available. When ECO mode is switched off, the e-drive is in NORMAL mode. Pressing the POWER button engages the electric peak power for quick maneuvers.
  - Start/Stop command button with LED status indication
  - ECO mode lock button for extended range
  - POWER (PWR) mode button to deliver full electric power
  - LED and acoustic indication of the e-drive status
  - Safe and simple proportional control of your vessel
  - High-quality materials
  - Stylishly designed aluminum bezel 61/16" x 315/16" (154 x 100 mm)
  - Waterproof IP65 when mounted
  - V-CAN CANBUS protocol certified
  - Double connector for multiple stations
  - Includes Control Lever for e-drives
  The E-LINE and E-POD are operated with the ELPS, the V-CAN side-mount control lever. The panel has a standard neutral position switch, which prevents the engine from being started when the control lever is engaged.

  On the control lever, you can choose three engine settings;
  NORMAL, ECO, and POWER. Pressing the ECO mode button limits the maximum power of the e-drive. In ECO, POWER mode is also not available. If ECO mode is switched off, the e-drive is in NORMAL mode. Pressing the POWER button now engages the electric peak power for quick maneuvers.

  Specifications
  - Start/Stop command button with LED status indication
  - ECO mode lock button for extended range
  - POWER (PWR) mode button to unleash full electric power
  - LED and acoustic indication of the e-drive status
  - Safe and simple proportional control of your vessel
  - High-quality materials
  - Stylishly designed aluminum bezel 61/16" x 315/16" (154 x 100 mm)
  - Waterproof IP65 when mounted
  - V-CAN CANBUS protocol certified
  - Double connector for multiple stations
Includes Alu. electric boating V-CAN panel monitoring, black. Control panel MPE1MB monitoring panel - V-CAN monitoring, battery indication, engine alarms, and engine status
Includes
1x DC-DC converter from 48V to 12V for CAN power supply
1x V-CAN hub
3x V-CAN cable 1m
1x V-CAN cable 5m
2x V-CAN Terminator

Optional

For water-cooled versions: Excludes keel cooling system with closed circulation, this is recommended for salt or very sandy water. Using the ELINEKC keel cooler (371,-), the coolant (VETUS Organic Coolant) dissipates heat from the engine and controller.
Swap & Go engine mounts and engine mounts type EMX65
Integrated thrust bearing
Mounting flange 4” suitable for flexible propeller shaft coupling Vetus Combiflex (COMFL 314,-) or Bullflex1 (BULFL01 421,-).
Excluding remote control / control lever Vetus ELPS 683,-.
Excluding batteries and battery charger.
Excluding flexible propeller shaft coupling (e.g. Vetus Combiflex (1225 (25 mm)/1230 (30 mm)) or Bullflex1 (20 or 25mm)) €421. While aligning the engine and the propeller shaft is often a time-consuming job, the Vetus Combiflex makes it easy for the installer. Even with an alignment error of up to 2 degrees, the propeller shaft remains perfectly centered on the gearbox flange. An ideal flexible coupling, therefore, for a propeller shaft with a floating propeller shaft seal and an engine on flexible mounts. If the propeller shaft makes a 2-degree angle with the engine, the maximum permissible rotational speed is 1500 revolutions per minute on the shaft. Torsional vibrations that arise during load changes and/or are caused by the uneven running of the engine are damped thanks to the very flexible rubber element. This pre-tensioned rubber element ensures a play-free and vibration-damping connection between the engine and the propeller shaft. Thanks to the breakthrough protection (both axial and radial), this connection remains optimally guaranteed. The non-tapered clamping hub ensures problem-free assembly, and perhaps even more importantly, disassembly (unlike a tapered clamping hub). The propeller shaft is easy to cut to length; saw, deburr, degrease, and assemble, that's all. The Vetus Combiflex flexible coupling has a 4” flange that fits common models of gearboxes. Suitable adapter flanges are available for Yanmar, Volvo, and Kanzaki gearboxes. Maximum permissible power at 1500 revolutions per minute 36KW (48HP).
Excluding propeller shaft.
Excluding propeller.

Or consider a more affordable pod motor or the Waterworld 4.0 i 7.5 i 10.0 i 20.0 i electric inboard motor 4 - 20 kW 48V
Subsidy: Electric boat engines and Lithium batteries are eligible for Environmental Investment Deduction and Random Depreciation of Environmental Investments for vessels used commercially. The tax advantage with MIA\Vamil can amount to over 14% of the investment amount.
