Tohatsu 50 HP Outboard Motor MFS50A

€7.995,00 EUR

Sale Sold out

Taxes included. Shipping calculated at checkout.

Quantity

OUT OF STOCK - ORDER IS POSSIBLE

Tohatsu MFS50A 4-stroke outboard motor

The 4-stroke models from Tohatsu … have the latest technology! These Tohatsu outboards are reliable and have robust technology that is easy to use. The MFS 50 is the first model of the new Tohatsu lightweight Sportief ECO line. It is the lightest 4-stroke outboard in this class.

Tip consider whether Tohatsu 60 HP outboard motor MFS60A ETL this has an even better power to price ratio.

This outboard motor is suitable for water sports; for water skiing, wakeboarding or wakefoiling (for boats with a speed from 20 kilometers per hour for beginners up to 35 kilometers per hour for advanced users).

According to a rule of thumb, for fast boats you need 1 hp for 10 to 20 kilograms of total weight. Based on this, this outboard motor is then suitable for 500 to 1000 kilograms of total weight.
For displacement boats, 1 hp per 150 to 200 kilograms is sufficient; the engine is then adequate for 7.5 to 10 tons of total weight.

Test report 1 Review by magazine Boten.nl: Speed and comfort in an attractive package by Laurens Koster.

The test boat is equipped with a 50hp Tohatsu. We have sailed with it more often and each time the conclusion is that Tohatsu's do their work remarkably smoothly and quietly. This 3 cylinder 4-stroke is no exception. Incidentally, the boat has no rudder, so steering is also done with the engine. In the bun it is important to provide the engine with sufficient oxygen. Exhaust gases must also not accumulate in the closed space. With a set of generously sized air vents and a drain hose that is perfectly arranged.
On a virtually flat and windless Veluwemeer it is striking how easily the Oud Huijzer 616 gets into plané. We sail effortlessly at about 20 kilometers per hour with the throttle half open. Full throttle the boat clocks a top speed of about 42 kilometers per hour.
Test report 2 review magazine Boten.nl by Arne Smit.
For water sports enthusiasts who like to sail a bit faster, a 50 hp Tohatsu four-stroke outboard motor is a great choice. These engines weigh less than 100 kilograms, which means the Topcraft 605 can sail light-footed with a top speed of 50 kilometres per hour. More than enough for water skiing, wakeboarding or blowing out a breeze on open water with a boat full of friends.
Test Report 3: review on Test Report on Tohatsu.com.au
The test was carried out using a Clark Abalone 435 boat with a total weight of 750 kilograms.
At 3,500 rpm a speed of 27 kilometers per hour was achieved and a consumption of 5 liters per hour.
At 6,300 rpm a maximum speed of 55 kilometers per hour was achieved and a consumption of 16 liters per hour.
Source: Tohatsu.com.au. For more details see image.
Test report 4: With the Topcraft 565 with a boat weight of 600 kilograms, you can sail with a 50 hp outboard motor at a maximum speed of 45 kilometers per hour.
With the Lago Amore 600 Tendersloep With a boat weight of 750 kilograms, you can sail with a 50 hp outboard motor at a maximum speed of 45 kilometers per hour.
With an Oud Huijzer 616 Tendersloep 6 meters with a boat weight of 600 kilograms you can sail up to a maximum speed of over 35 kilometers per hour.
Test report 5: With the Lago Amore 633 with a boat weight of 800 kilograms, you can sail with a 50 hp outboard motor at a maximum speed of 40 kilometers per hour.
Test report 6: With a Van Zutphen 633 tender with a boat weight of 700 kilograms, you can sail with a 50 hp outboard motor at a maximum speed of 40 kilometers per hour.
Test report 6: With a Van Zutphen 633 tender with a boat weight of 700 kilograms, you can sail with a 50 hp outboard motor at a maximum speed of 40 kilometers per hour.
Test report 7: With a Van Vossen 777 with a boat weight of 1,000 kilograms, you can sail with a 50 hp outboard motor to a maximum speed of 34 kilometers per hour.
Test report 8: With a Topcraft 565 with a boat weight of 550 kilograms, you can sail with a 50 hp outboard motor at a maximum speed of over 50 kilometers per hour.
Test report 9: With an Amigo 475 Sport with a boat weight of 410 kilograms, you can sail with a 50 hp outboard motor at a maximum speed of 51 kilometers per hour.
Test report 10: With a Tridente 19S with a boat weight of 580 kilograms, you can sail with a 50 hp outboard motor at a maximum speed of 48 kilometers per hour.

SPECIFICATIONS

Power 50 hp
Lubrication 4-stroke
Weight 95 kilograms
Start Electric
Control type Remote control
Acceleration Forward - Neutral - Backward
Fuel system Injection
Number of cylinders 3
Cylinder capacity 866 cm3
Maximum power 37 kW
Full throttle working speed 5000-6000 rpm
Bore x impact 70x75 mm
Trim/tilt mode Power trim
Tail length L (20'' = 51 centimeters)

Model / MFS 50

Type Four-stroke EFI
Maximum output kW (hp) 36.8 (50)
Maximum working range speed 5000-6000
Fuel consumption at WOT L/hr (gal/hr) 15.7 (4.15)
Number of cylinders 3
Bore x Stroke mm (inch) 70 x 75 (2.75 x 2.95)
Displacement ml (with inside) 866 (52.84)
Engine lubrication system Trochoid pump
Starting system Electric starter
Spark plug NGK DCPR6E
Ignition Timing Electronically Advanced
Dynamo output 12V 252W 21A
Motor oil Tohatsu 4-stroke motor oil
Engine oil capacity L (gal) 2.4 (0.63) with filter change
Fuel tank capacity L (gal) 25 (6.6)
Speed control Multifunction joystick or remote control
Gear ratio 2.08 (13:27)
Emission Compliance EU & EPA & CARB 3-star

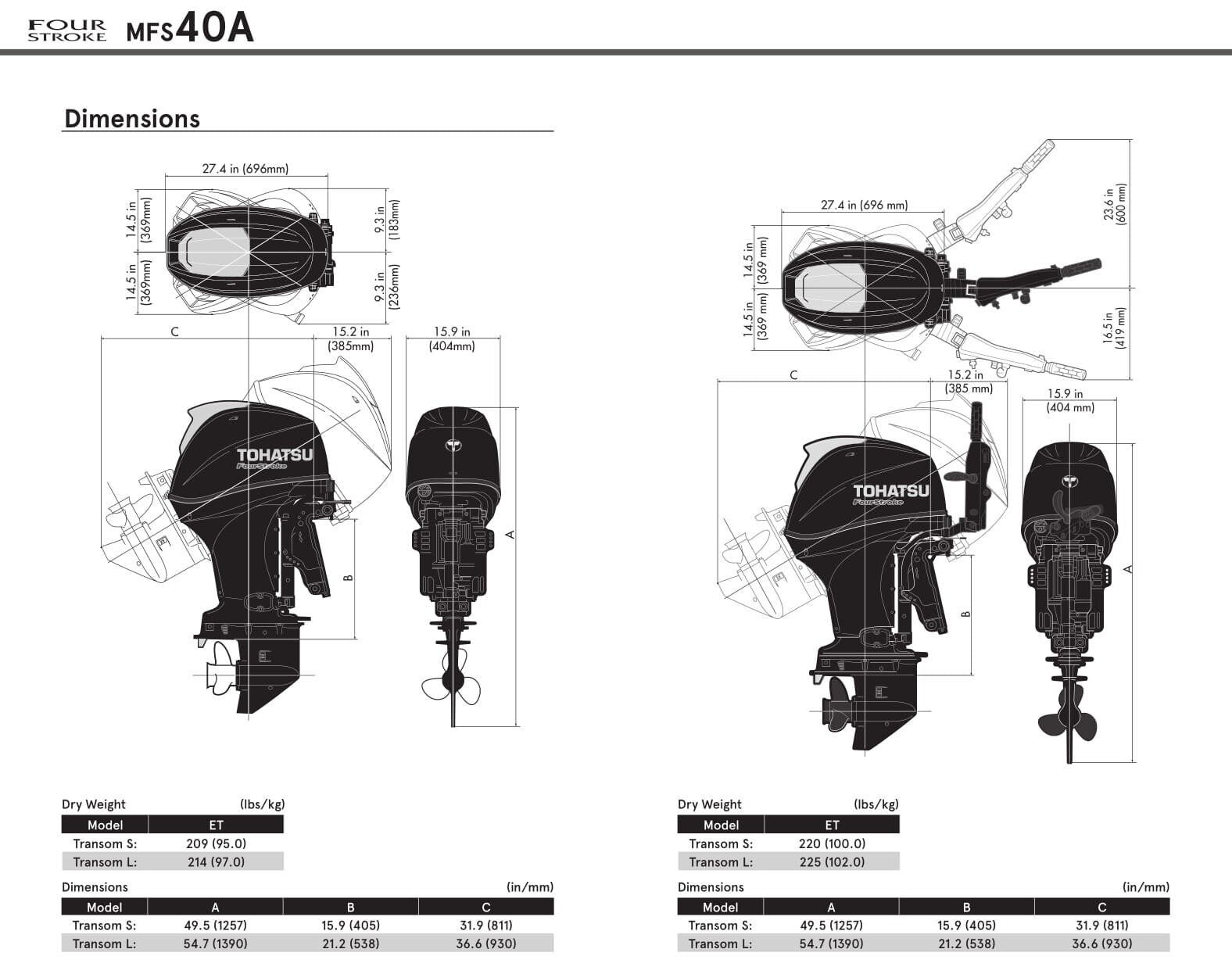

The transom height of the boat determines the outboard motor's shaft length. Measure from the point where the motor is attached to the bottom. Is the transom height around 43 centimetres? Then you need a short shaft. For a length of 51 centimetres, it is best to go for a long shaft. You need an extra long shaft for a length of 63 centimetres.

Standard & optional equipment

Type ETS / L EGL

Electric starter ● ●

Decompression release ● ●

Lanyard for engine stop switch ● ●

Dynamo ● ●

Rectifier ● ●

Powerful tilting ● -

Gas assisted tilt - ●

Mirror 15/20 20

Propeller ● ●

Analogue tachometer ○ ○

Analog Trim Meter ○ ○

Remote control box ○ ○

Multifunction joystick ○ ○

25 L (6.6 gal) plastic fuel tank. ● ●

Toolbox ● ●

Emergency starting rope ● ●

Spare spark plugs ● ●

User Manual ● ●

● Standard ○ Optional

VERSIONS:
- ETS: E: electric start , T: remote control and power trim, S: short shaft. With steering wheel control both monocable and hydraulic. With powertrim you can electronically optimize the trim angle for improved acceleration, higher speed and stable position. Also handy for trailering.
- ETL: E: electric start , T: remote control and power trim , L: Long tail or W: in the color Beluga White.
  With steering wheel controls, both mono-cable and hydraulic.
  With power trim and tilt you can optimize the tilt angle of the engine at the touch of a button. With the trim meter you can quickly read whether the angle of the engine is correct. Then you accelerate faster, sail smoother, faster, more economically, more stable and above all also safer. Also handy for trailering.

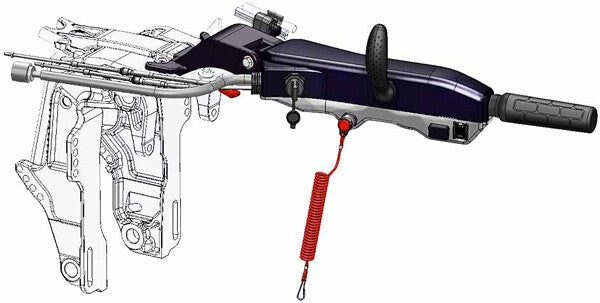

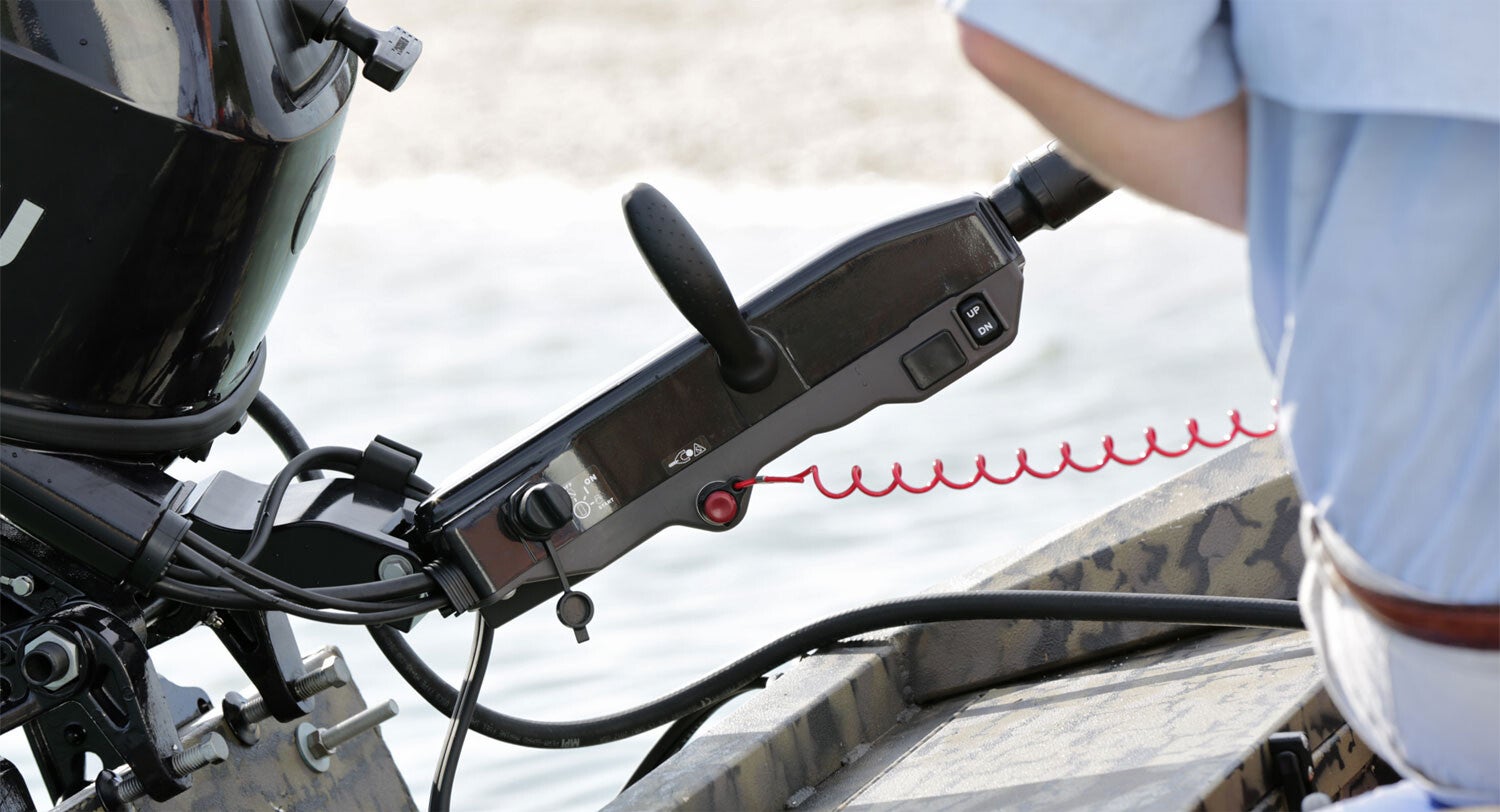

- EFTS (short shaft) (W) EFTL (long shaft) tiller / tiller version with Big Multi Tiller B handle (see images). This gives you an electric start and power trim of the outboard motor, without the need for a steering function with remote control.
  - Ergonomically designed shift lever.
  - Longer Thottle handle with 110 degrees of rotation for maneuverability
  - Throttle Friction function for fine-tuning the comfort of the tiller
  - Steering Co-Pilot for steering wheel control.
  - Warning lights, key switch and tilt and trim switch (in the handle) easily accessible.

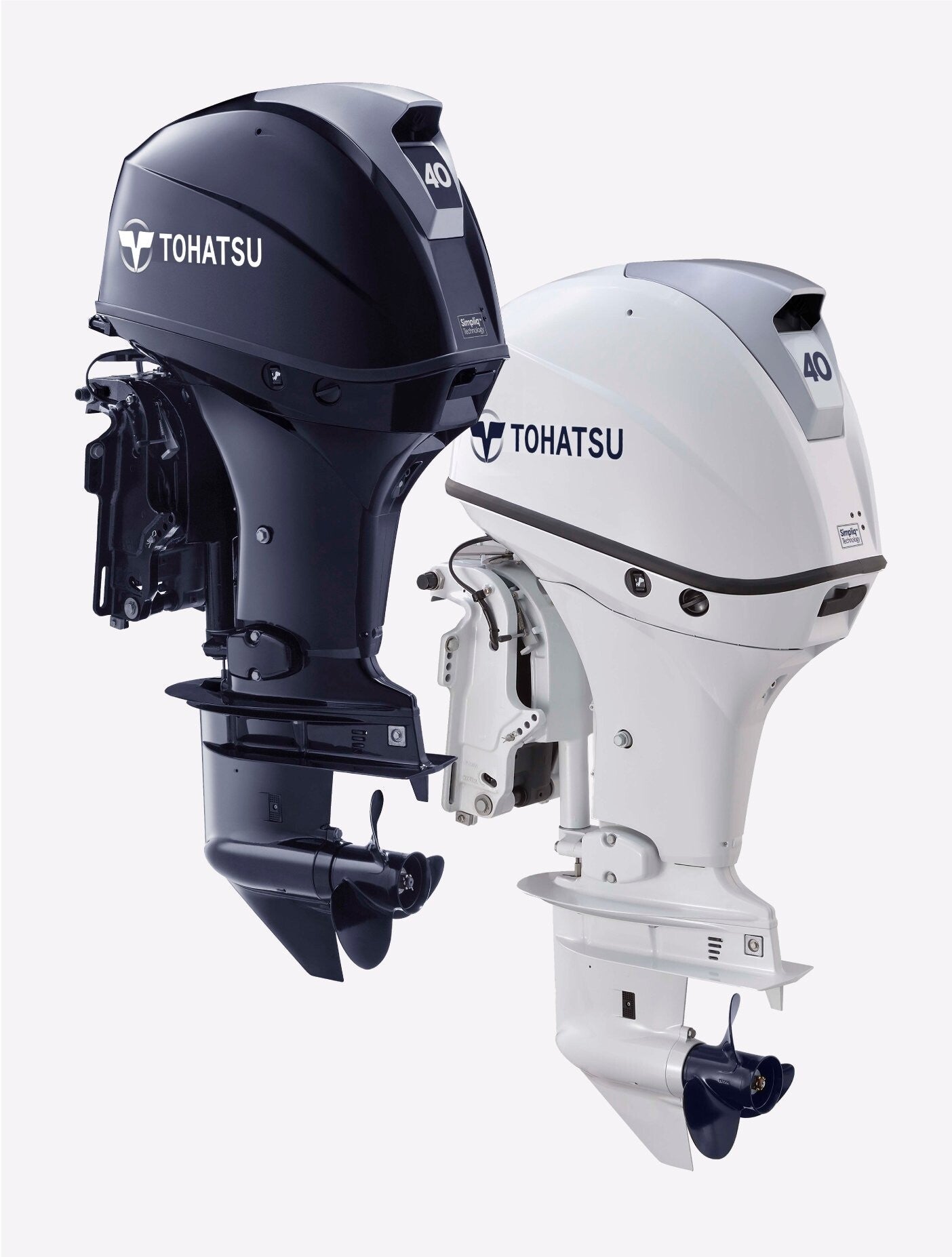

  - Available in the colour Aqua Blue Article number 3KYQ63000-6 or Belgua White Article number 3KYW63000-6.
Inclusive :

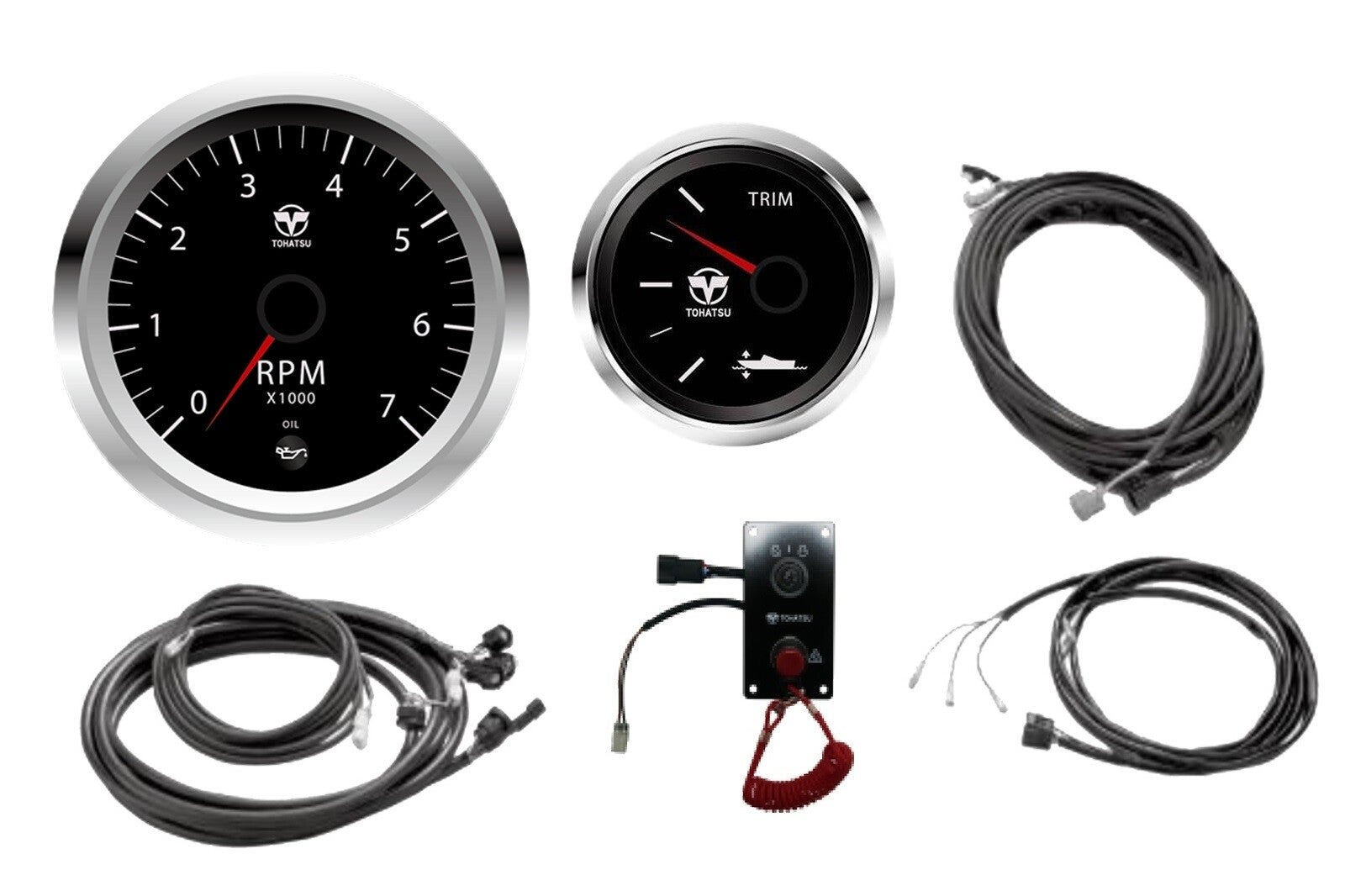

- standard vertical mounting panel without remote control (optional) with tachometer, trim meter, wiring harness with ignition switch and dead man's switch, communication cable kit (part number 3ZG-84556-0)

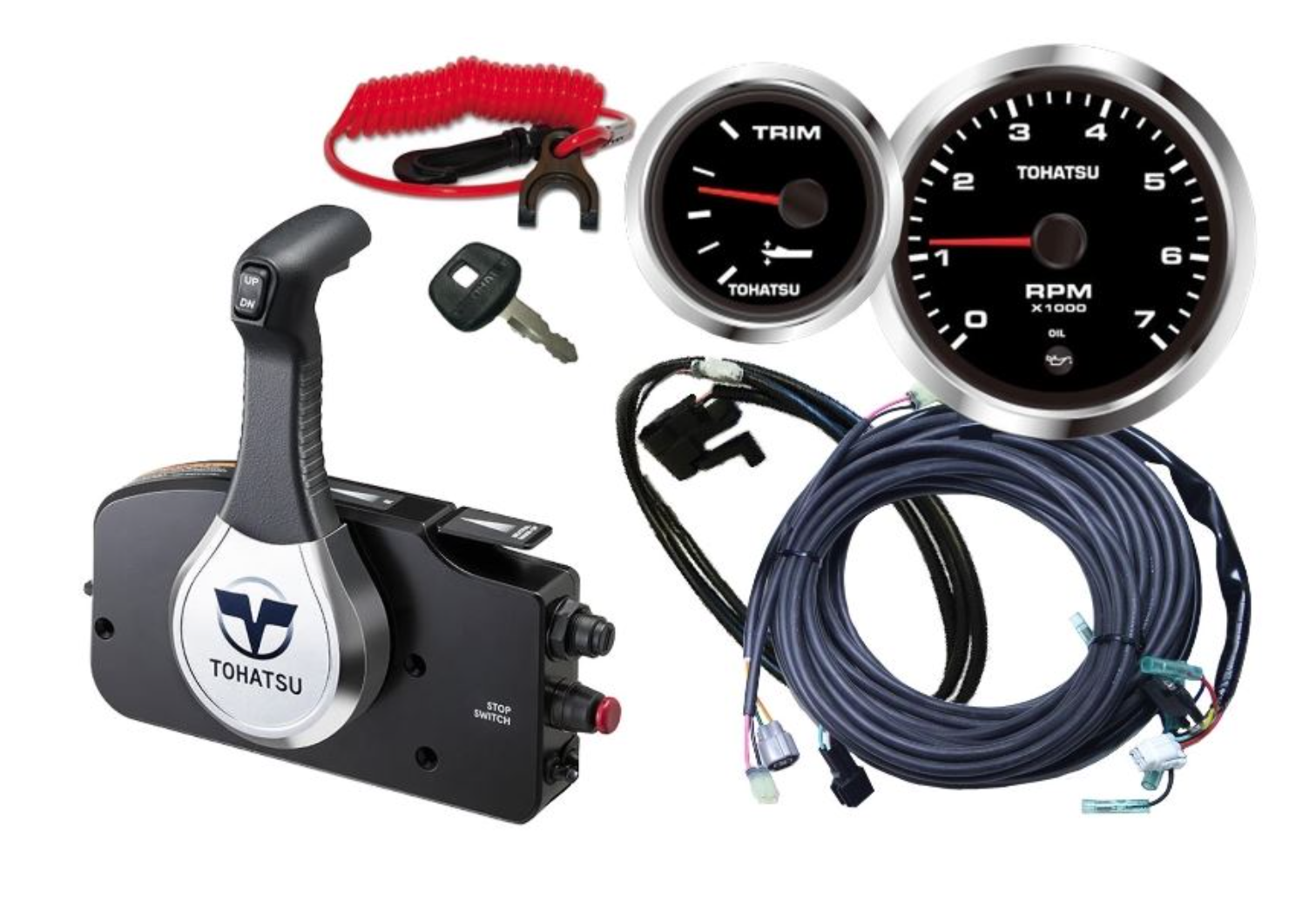

  - or on request: remote control with power trim: side mounting switch box with mounting kit, tachometer, trim meter, wiring harness with ignition switch and dead man's switch, communication cable kit (part number 3ZG-84555-0)
- screw/propeller (standard 11.1 diameter, 14 pitch other pitch on request)
- 24 liter fuel tank.
Excluding : starter battery, engine oil and delivery inspection.

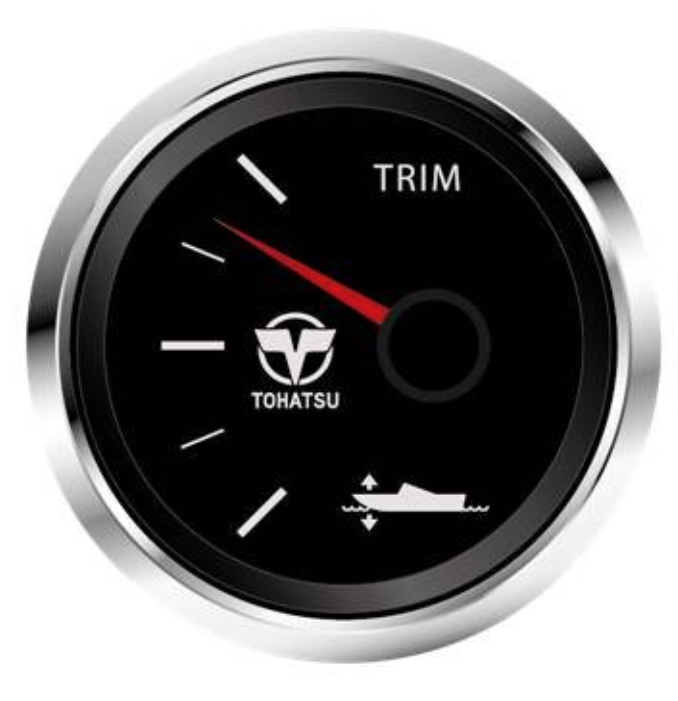

Trim meter

Trim gauge (2" diameter) displays engine angle for optimum performance and efficiency. Features domed lens to minimize glare in direct sunlight, fog and scratch resistant coating, and chrome bezel.

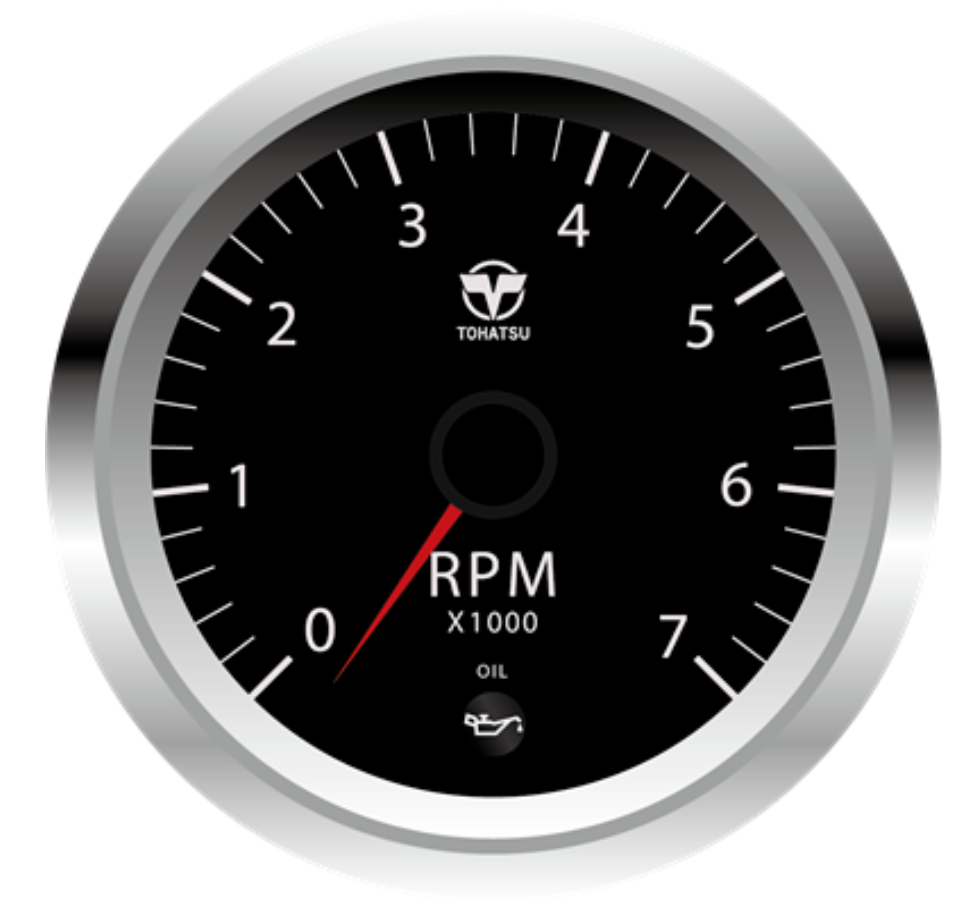

Tachometer

The 7,000 rpm tachometer (10 cm diameter) has a chrome ring and is illuminated for good visibility in the dark. Features a domed lens to minimize glare in direct sunlight and a fog and scratch resistant coating.

The tachometer informs the operator of potential problems such as low oil pressure, low battery and overheating via built-in warning lights.

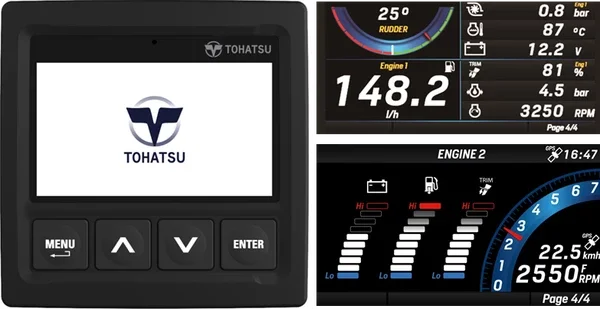

Optional: TOCS 4.3 inch LCD color display with information about:

Engine speed
Engine operating temperature
Battery voltage
Fuel consumption
Tilt/trim meter*
Total engine operating hours in hours
Total fuel consumption
Fuel tank level(s)
Current consumption
Course/speed
Various warnings
Self-diagnosis system

With NMEA2000 , J1939 CAN Bus and coupling.

It is also possible to order a package of original Tohatsu analogue built-in gauges for the same price; tachometer, speedometer, hour meter, trim meter, voltmeter and fuel gauge.

Tohatsu 4 stroke advantages:
• Completely new design
• Favorable fuel consumption
• Lightest weight in its class, starting at 94.5kg
• Ultra Low Emission, US EPA and CARB Approved

Performance and ease of operation

• Electronic fuel injection
• Inductive ignition system for faster starting
• Large dynamo and rectifier 21 amp
• New and improved gear ratio, improved pulling power and torque
• Adjustable steering friction to reduce steering effort
• Power trim & tilt

Essential for ease of use and reliability
• Exhaust through the propeller for a quieter outboard motor
• Thermostat controlled cooling system for controlled engine temperature
• Water flushing system for simple routine flushing
• Stainless steel water pump housing for excellent durability
• High quality aluminum alloy this provides the ultimate protection against corrosion
• Zinc coating on internal water passages for superior corrosion resistance

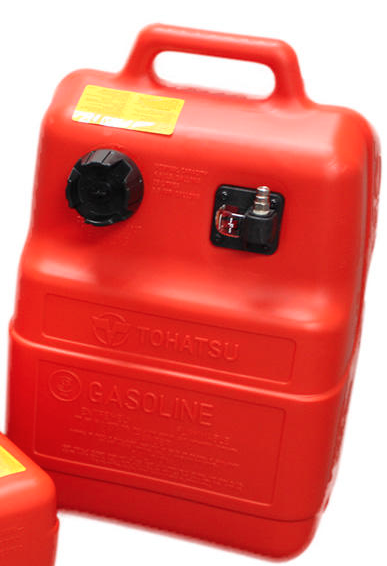

• External 25 liter fuel tank with engine connection and hose
• Variable Idle Control (650 to 950 rpm's)*
• Aluminum screw
• Includes trim meter
• Includes electronic tachometer

Warning and safety systems
• Low oil pressure indicator (optical and acoustic)
• Overheating warning (acoustic)
• Battery voltage warning (optical)
• Rev limiter
• Lanyard (an essential feature that comes standard on all Tohatsu outboards)
• Start protection (can only be started in neutral gear position)
• Rev limiter

* Certain models
** Remote control models

FEATURES

SOHC 9-valves and roller rocker arms
SOHC with unique 9-valve design with roller rocker arms provides minimal friction and offers faster throttle response, more durable against wear.

Variable idle system
allows to adjust the towing speed (RPM) in four levels from 650 rpm to 950 rpm (100 rpm each) using the key switch.

Built-in fresh water flushing system
Standard built-in freshwater flushing system simplifies routine engine flushing.

Audiovisual warning system
The tachometer informs the operator of potential problems, such as low oil pressure, low battery and overheating, through built-in warning lights. (For models equipped with a tachometer)

Trim meter

Trim gauge (2" diameter) displays engine angle for optimum performance and efficiency. Features domed lens to minimize glare in direct sunlight, fog and scratch resistant coating, and chrome bezel.

Tachometer

The 7,000 rpm tachometer (10 cm diameter) has a chrome ring and is illuminated for good visibility in the dark. Features a domed lens to minimize glare in direct sunlight and a fog and scratch resistant coating.

The tachometer informs the operator of potential problems such as low oil pressure, low battery and overheating via built-in warning lights.

THAT'S WHY TOHATSU

Tohatsu from Japan has been around for over 100 years and produces over 200,000 outboard motors per year. TOHATSU is the largest outboard motor manufacturer in the world.
Tohatsu has more than 10 percent market share in the Netherlands is growing fastest in market share in the Netherlands. For models up to and including 30 hp already more than 20% market share !
Did you know that Mercury even has their outboard motors up to 30 hp manufactured by Tohatsu? The only difference is the hood and the price.
The Tohatsu BFT models from 150 hp are rebranded Hondas since 2014. So you get a reliable Honda engine for a Tohatsu price.

The Tohatsu engines have the highest quality and a lower price than other A brands. Tohatsu is also the only brand that produces exclusively outboard engines so has really specialized.
Tohatsu pays a lot of attention to the appearance of its outboard motors and that is reflected in this model. The appearance is tough and robust. Under the beautifully streamlined hood you will find the trusted Tohatsu technology, developed for years of sailing pleasure with minimal maintenance.
The Tohatsu engine is user-friendly in every way. For example, the oil filter is positioned in such a way that you can easily replace it yourself. The lubrication of your outboard engine is optimal thanks to the generous oil reservoir. By using the proven Tohatsu electronic injection system, your engine starts smoothly and the throttle response is fast. The speed can be smoothly controlled.
Your newly purchased Tohatsu outboard motor comes with a full 5-year manufacturer's warranty .

Tohatsu always comes out well in comparative tests.
- Read the test reports for the 15 and 30 and 60 hp engine. Tohatsu is the price-performance winner according to the Boote Testen.
- The ANWB 'Waterkampioen' also carried out an outboard motor test. The Tohatsu 6 hp came out as winner forward based on weight, noise and ease of use. According to the ANWB you can best buy a Tohatsu 6 HP outboard motor.
- Boote-Magazin.de also has the Tohatsu MFS115 A tested: impressive result by the best torque-to-weight ratio and higher top speed. The small cylinder capacity also makes the Tohatsu extremely economical.
Most models are available from stock!

That's why Tohatsu is the best outboard motor.

Tohatsu pays a lot of attention to the appearance of its outboard motors and this is reflected in this model. The appearance is tough and robust. Under the beautifully streamlined hood you will find the trusted Tohatsu technology, developed for years of sailing pleasure with minimal maintenance. The engine is user-friendly in every respect. For example, the oil filter is positioned in such a way that you can easily replace it yourself. The lubrication of your outboard motor is optimal thanks to the generous oil reservoir. By using the proven Tohatsu electronic injection system, your engine starts smoothly and the throttle response is fast. The speed can be smoothly controlled.

WARRANTY & DELIVERY TIME

Your newly purchased Tohatsu outboard motor comes with a 5-year full factory warranty . This gives you solid certainty of carefree sailing. You will receive the warranty certificate and certificate with your purchase. Technical defects that occur within the warranty period and fall under the warranty conditions will be remedied free of charge.
