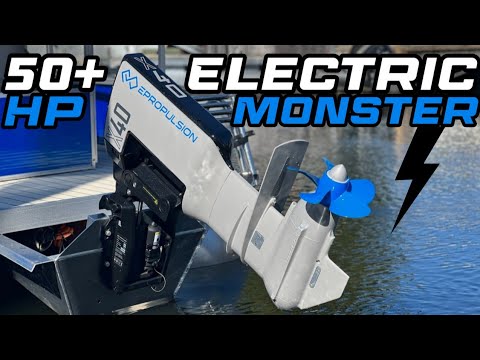

ePropulsion X40 40kW Electric Outboard Motor 96V

Comparable to a 68 hp (propulsion power) to 100 hp (thrust) combustion engine.
The engine is suitable for bringing boats from 18,000 to 36,000 kilograms up to cruising speed and boats from 3,600 to 12,000 kilograms up to hull speed.

Is your boat lighter? Then check out the ePropulsion X20 20kW Electric Outboard Motor 96V
The electrical steering, power trim/tilt, ECU (electrical control unit) and engine controller are all integrated into one unit.
Comfortable and intuitive operation

The X Series’ digital helm and smart throttles, with instant digital feedback, are responsive and easy to use, even for boating beginners.

Integrated electrical control

The X Series’ electric steering eliminates the need for hydraulics, simplifying installation and maintenance.

Advanced sailing assistance features

Integrated electrical controls enable automated functions such as "Position Hold," "Heading Hold," and "360 Motions" for added safety and ease of use. More features will be added in the future.

eSSA makes setting up an X Series system seamless and worry-free. Its modular architecture supports simple and secure connection of multiple components and enables integration with renewable energy sources, increasing the sustainability of your boating experience.

This electric inboard motor offers a user-friendly, intelligent and reliable boating experience.

Connectivity

The built-in ePropulsion Connectivity Service keeps you in touch with the real-time status of your boat and provides advanced monitoring, reporting, and voyage tracking features.

ePropulsion Link is a mobile application that allows boat owners to communicate safely and reliably with their boats. It provides users with access to cloud-based connectivity services without the need for additional accessories. This smart application works with the ePropulsion electric propulsion system and provides real-time data, valuable insights, and comprehensive statistics to optimize your boating experience.

Ultra-low noise and vibration

With a maximum noise level of 73 dBA, X Series outboards are quieter than most offices! Thanks to advanced dampening technology and frequency resonance isolation, this means you can enjoy more of the water, without shouting at each other or scaring away wildlife.

Environmentally friendly
X-Series outboards are emission-free. Compared to a 60hp petrol outboard running at full power for 100 hours, an X40 would save 1,900 litres of petrol and 4.3 tonnes of CO₂ pollution.

Engine manual (X40)

Battery

The G102-100 battery is designed to be fully compatible with the 96V X-Series electric outboard motors. For the X40, you will need either 4 or 8 batteries.
Fully compatible with X-Series electric outboard motors
Safe and reliable
High energy density
Long life cycle
Available in (similar to) L: short tail and XL: long tail.

Specifications:

Item number X4-0000-L0
Item number X4-0000-X0
Engine weight (excluding controls) 104 kg (L) (220.3 lbs) 106 kg (XL) (233.7 lbs)
Shaft length 508 mm (L) (20″) 635 mm (XL) (25″)
Dimensions (L x W x H) 757 x 350 x 1233 mm (29.8x14.2x48.5″) (L) 757x360x1360 mm (29.8x14.2x53.5″) (XL)
Input power 40 kW
Nominal voltage 96 VDC
Cooling system Closed liquid cooling
Nominal speed 1500 to 2000
Trimming and tilting Electric trimming and tilting
Trim/tilt angle -4° to 61°
Control Integrated electrical control
Steering angle ±45°
Propeller:
- 15” x 10 3/4” propeller (available in left and right rotation)
- or 13 3/8” x 16 3/4” propeller (available in L&R rotation)

Options (for a complete installation):

Remote control: Smart remote. The Smart Throttle supports three mounting options: Top or side, Single or double, and Port or starboard.
- Item number: XS-RC00-00.
- Manual
Screen: 5-inch/13-centimeter smart display. Item number: XS-DP00-00.
Propeller. Item number: X4-LU01-R0.
Digital Helm steering wheel. Item number: XS-SW00-A0.
Battery and charger not included. More affordable AGM or other LiFePO4 batteries are also available (can be connected in series to 96 volts).

Or consider a pod motor or a 48-volt inboard motor. The 96-volt ePropulsion system may only be installed by a company with NEN 3140VP certification.
Subsidy : Electric boat motors and lithium batteries are eligible for the Environmental Investment Deduction and the Arbitrary Depreciation of Environmental Investments for commercially used vessels. With the MIA/Vamil, the tax benefit can amount to over 14% of the investment amount.
