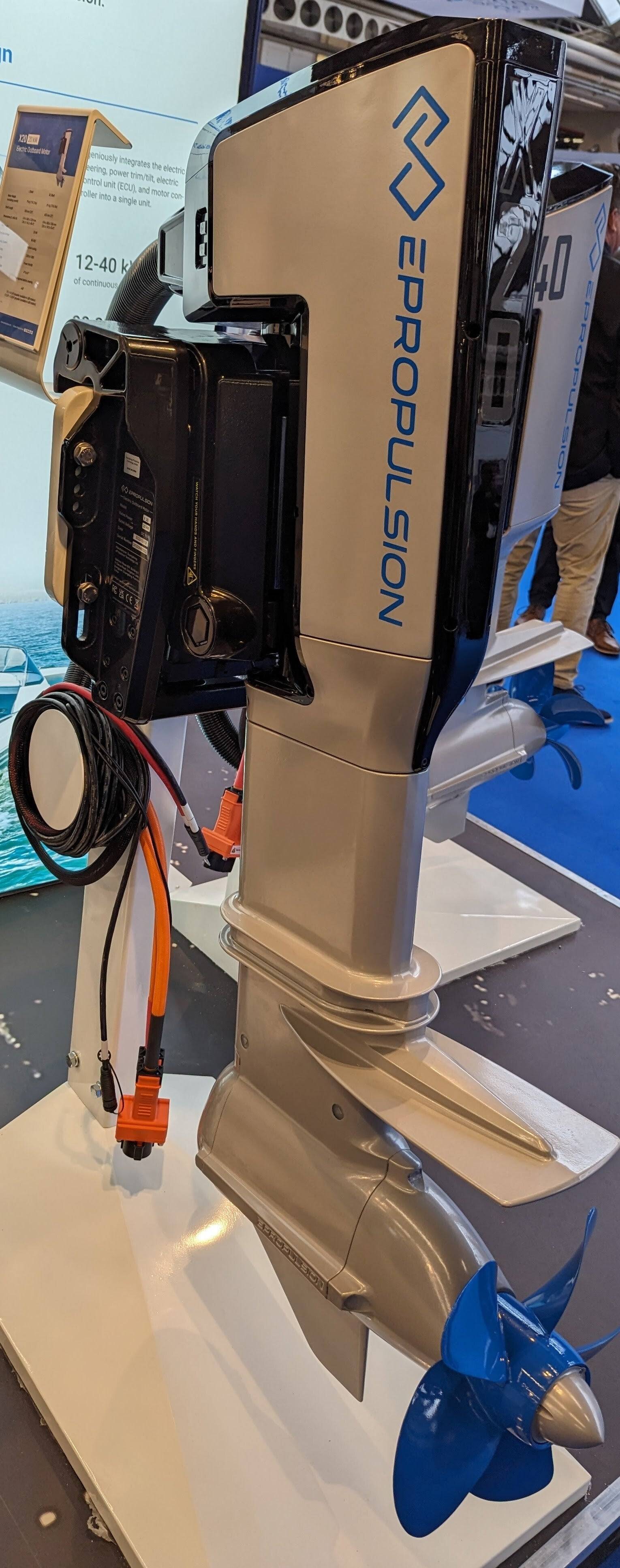

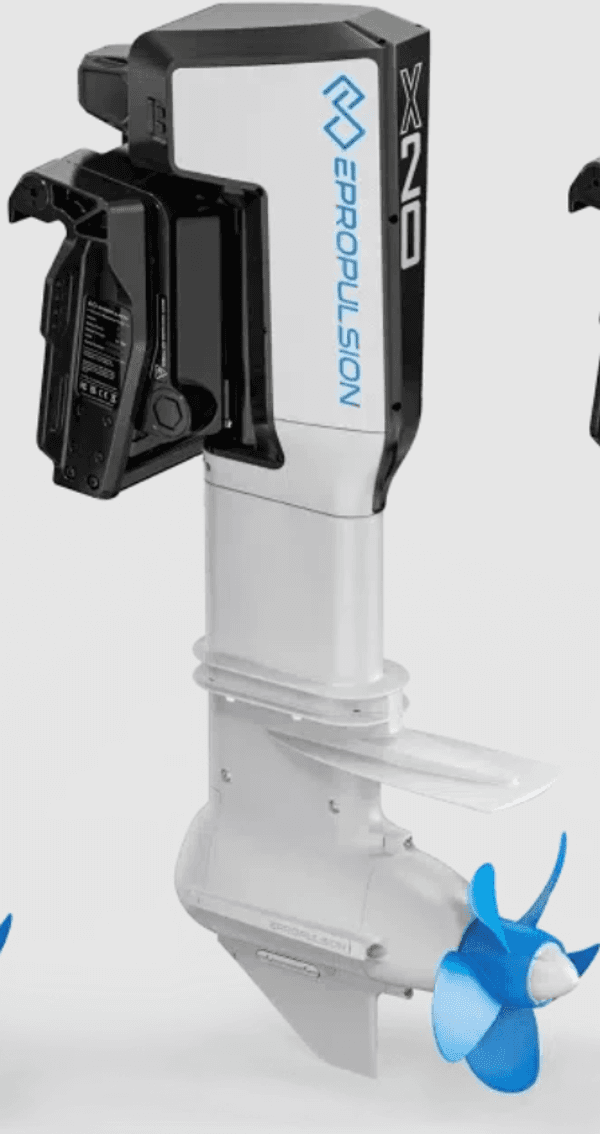

ePropulsion X20 20kW and 20kWh battery Electric outboard motor

Comparable to a 34 hp (propulsion power) to 50 hp (thrust) combustion engine.
The engine is suitable for bringing boats from 11,000 to 18,000 kilograms up to cruising speed and boats from 3,600 to 6,000 kilograms up to hull speed.

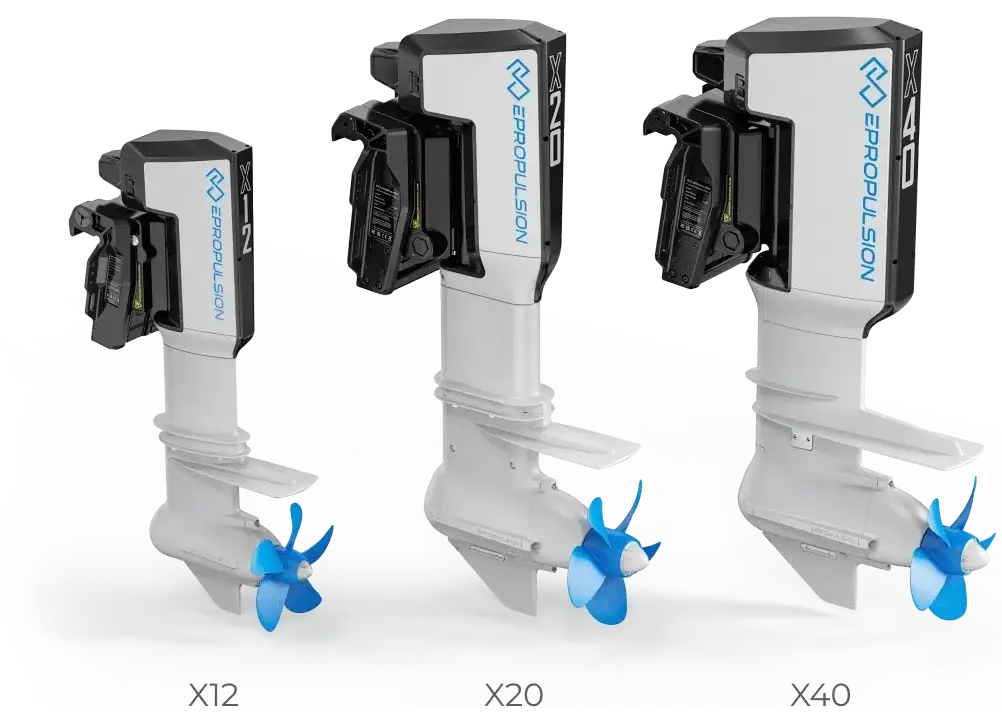

Is your boat lighter? Then check out the ePropulsion X12 12kW Electric Outboard Motor
For heavier boats or more speed: ePropulsion X40 40kW Electric outboard motor 96V
The electrical steering, power trim/tilt, ECU (electrical control unit) and engine controller are all integrated into one unit.

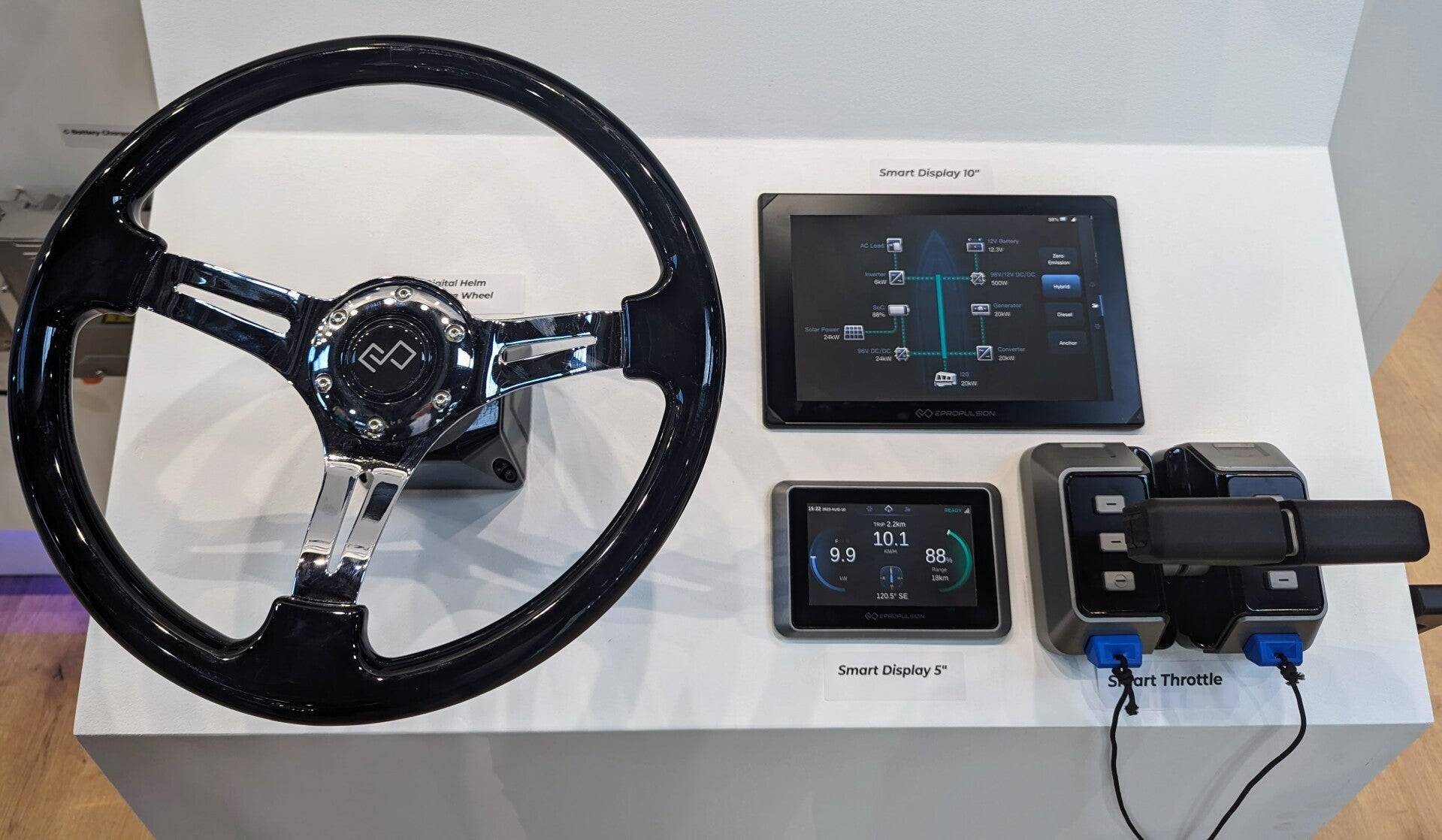

Comfortable and intuitive operation

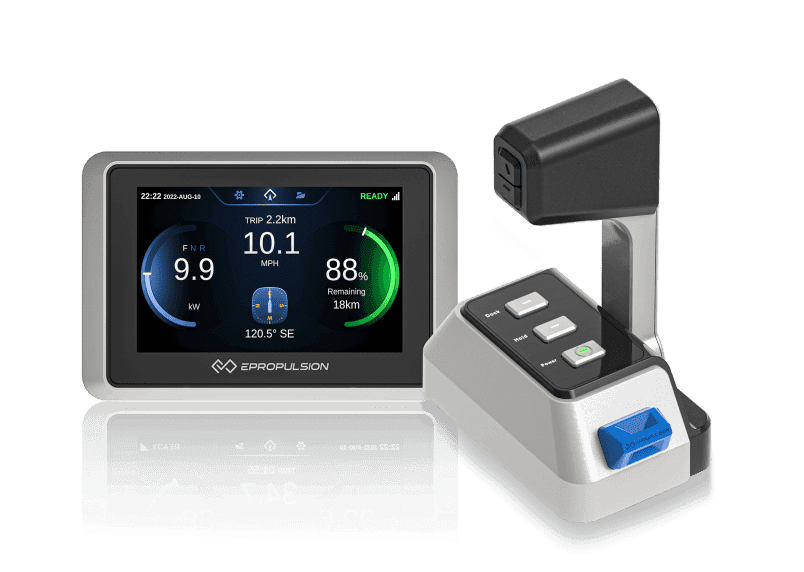

The X Series’ digital helm and smart throttles, with instant digital feedback, are responsive and easy to use, even for boating beginners.

Integrated electrical control

The X Series’ electric steering eliminates the need for hydraulics, simplifying installation and maintenance.

Advanced sailing assistance features

Integrated electrical controls enable automated functions such as "Position Hold," "Heading Hold," and "360 Motions" for added safety and ease of use. More features will be added in the future.

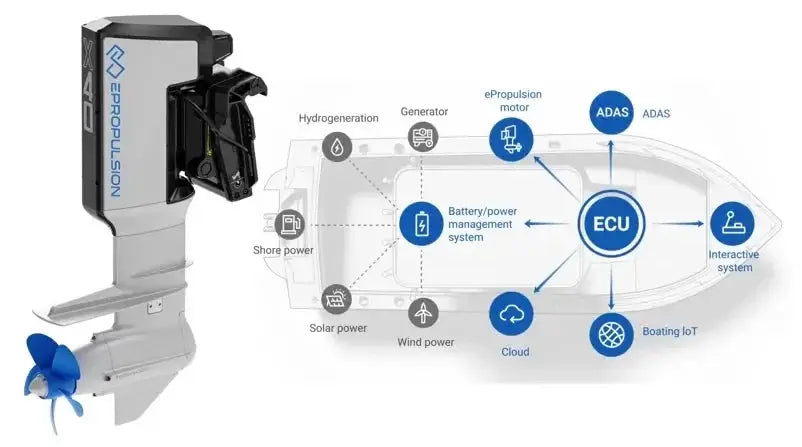

eSSA makes setting up an X Series system seamless and worry-free. Its modular architecture supports simple and secure connection of multiple components and enables integration with renewable energy sources, increasing the sustainability of your boating experience.

This electric inboard motor offers a user-friendly, intelligent and reliable boating experience.

Connectivity

The built-in ePropulsion Connectivity Service keeps you in touch with the real-time status of your boat and provides advanced monitoring, reporting, and voyage tracking features.

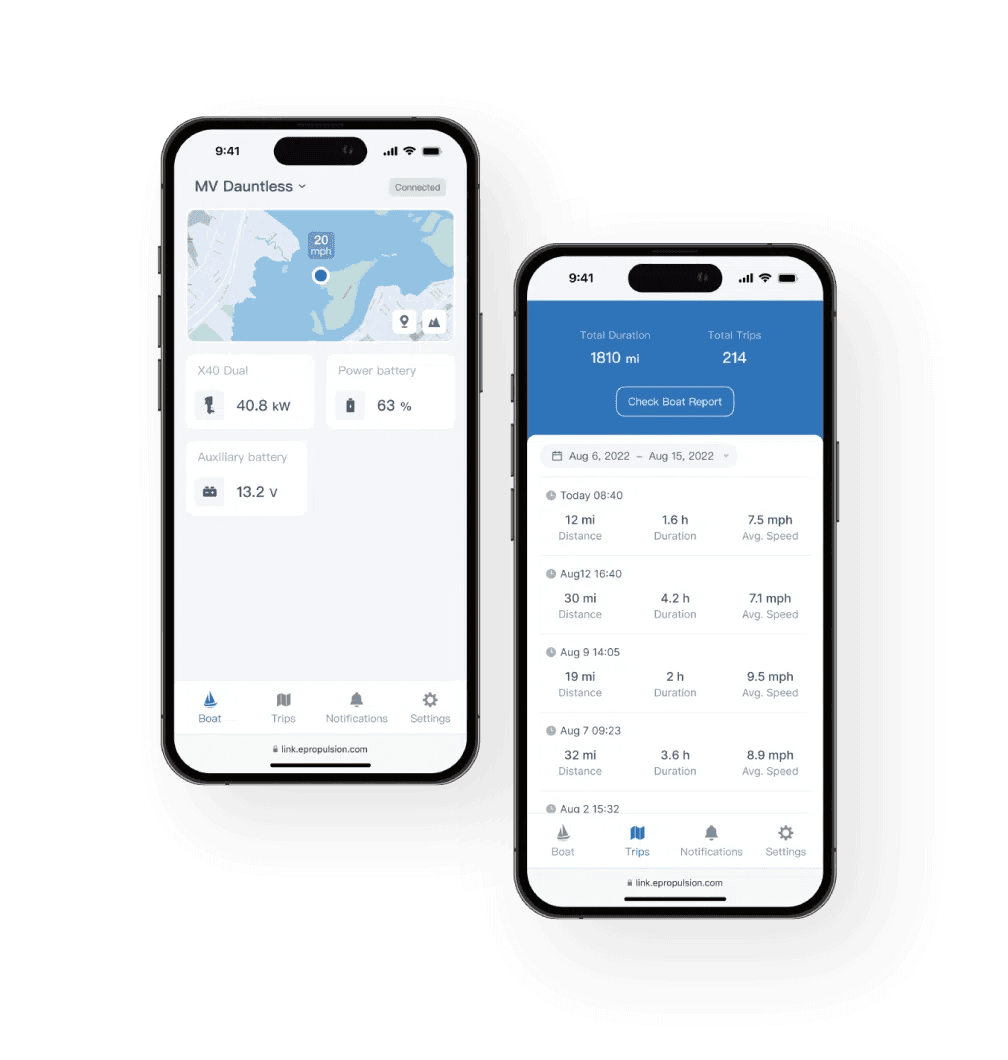

ePropulsion Link is a mobile application that allows boat owners to communicate safely and reliably with their boats. It provides users with access to cloud-based connectivity services without the need for additional accessories. This smart application works with the ePropulsion electric propulsion system and provides real-time data, valuable insights, and comprehensive statistics to optimize your boating experience.

Ultra-low noise and vibration

With a maximum noise level of 73 dBA, X Series outboards are quieter than most offices! Thanks to advanced dampening technology and frequency resonance isolation, this means you can enjoy more of the water, without shouting at each other or scaring away wildlife.

Environmentally friendly
X-Series outboards are emission-free. Compared to a 60hp petrol outboard running at full power for 100 hours, an X40 would save 1,900 litres of petrol and 4.3 tonnes of CO₂ pollution.
Engine manual (X40)

Battery

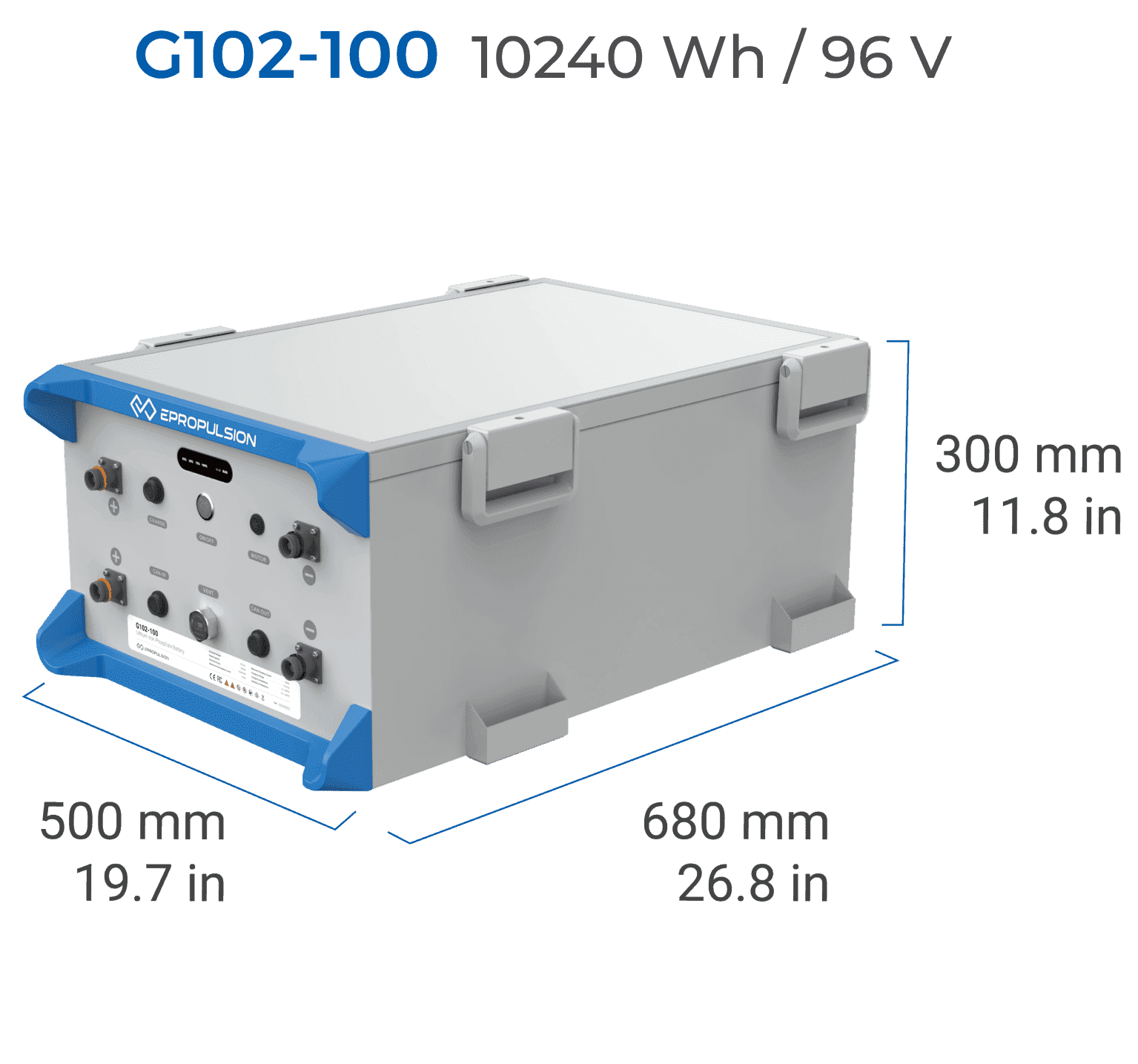

The G102-100 battery is designed to be fully compatible
Fully compatible with X-Series electric outboard motors
Safe and reliable
High energy density
Long life cycle

Available in (similar in length to) L: short tail and XL: long tail.

Specifications:
- Engine weight (excluding controls) 79 kilograms (L) (174.2 lbs) 81 kilograms (XL) (178.6 lbs)
- Shaft length 508 millimeters (L) (20″) 635 millimeters (XL)(25″)
- Dimensions (L x W x H) 674 x 360 x 1229 millimeters (26.5 x 14.2 x 48.4 inches) (L mirror up to 47 cm) 674 x 360 x 1356 millimeters (26.5 x 14.2 x 53.4 inches) (XL mirror from 47 cm)
- Input power 20 kilowatts
- Nominal voltage 96 VDC
- Cooling system Natural cooling
- Nominal speed 1200 to 1800
- Trimming and tilting Electric trimming and tilting
- Trim/tilt angle -4° to 61°
- Control Integrated electrical control
- Steering angle ±45°
- Propeller 15” x 10 3/4” propeller (available in left and right rotation)
- 13 3/8” x 16 3/4” propeller (available in left and right rotation)

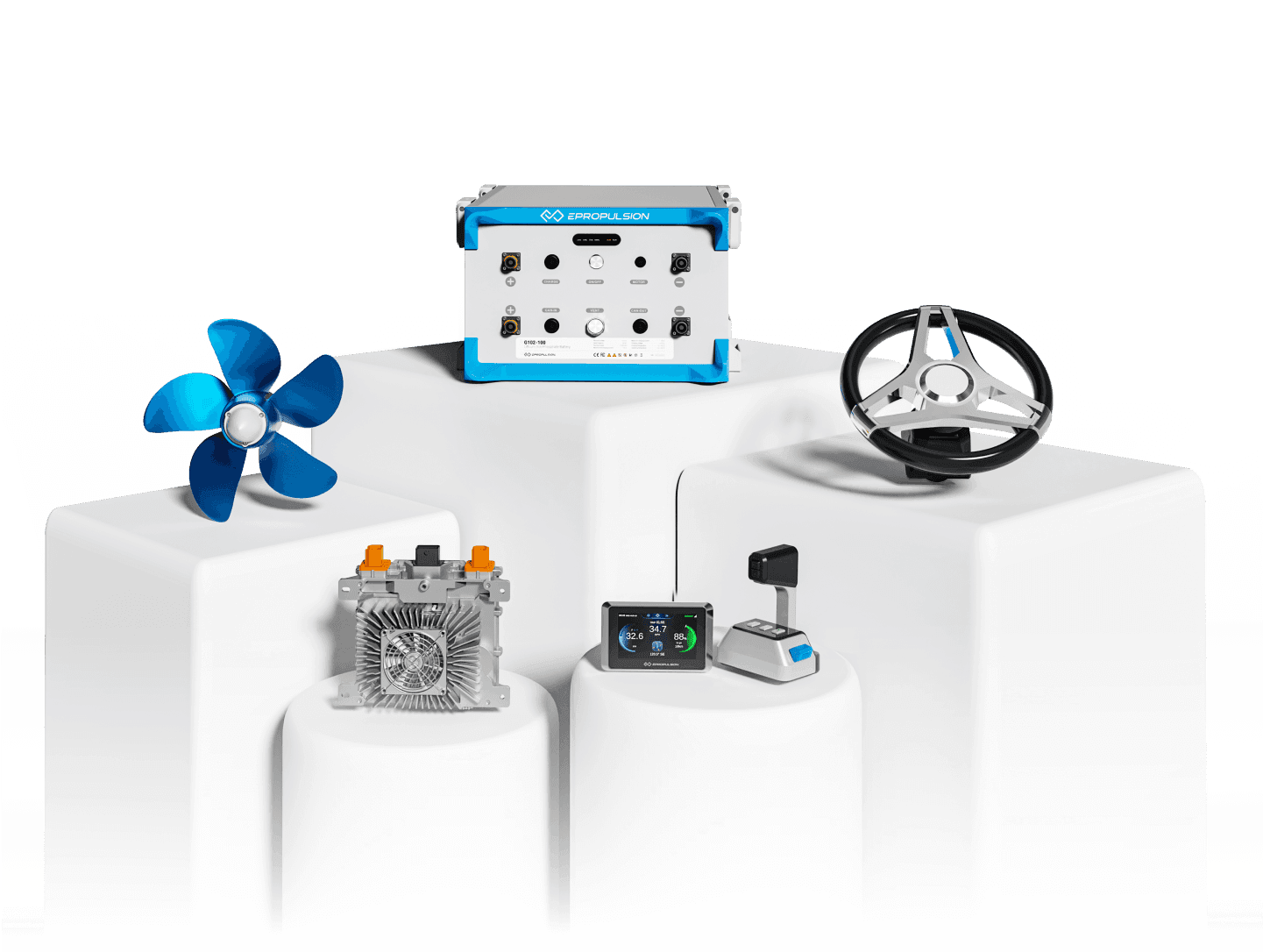

Included for a complete installation:
- 2 x 2 G102-100 batteries

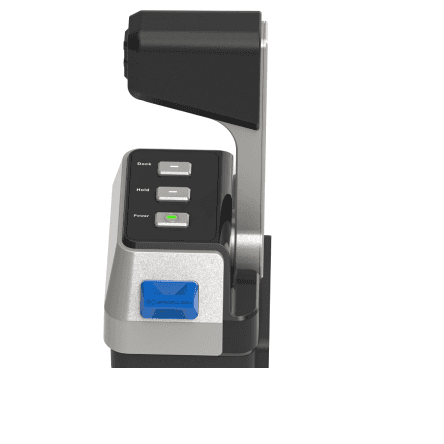

- Remote control: Smart remote. The Smart Throttle supports three mounting options: Top or side, Single or double, and Port or starboard.
  - Item number: XS-RC00-00.
  - Manual

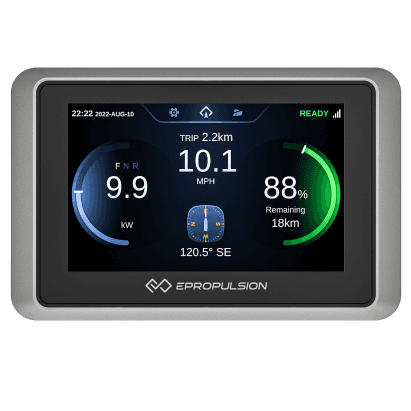

- Screen: 5-inch/13-centimeter smart display. Item number: XS-DP00-00.
- Propeller. Article number: X4-LU01-R0 or others upon request.
- Digital Helm steering wheel. Item number: XS-SW00-A0.
- Converter 96 volt to 12 volt A1-DC00-02 1 DCDC 96V-12V-500W NT

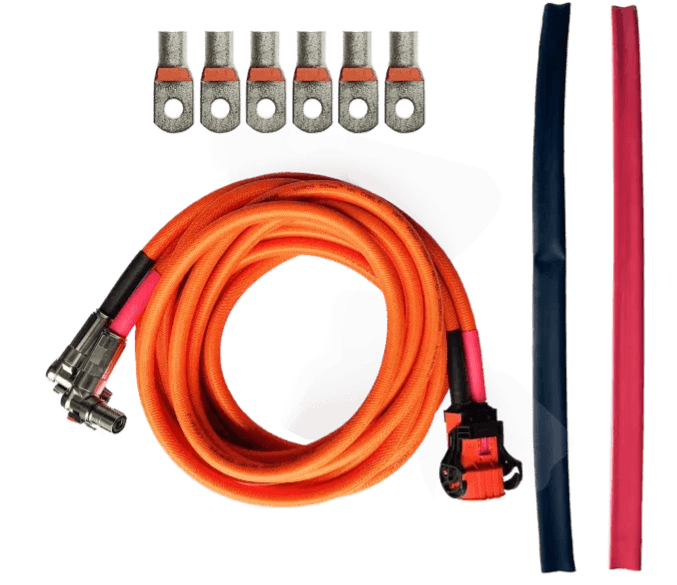

- Battery Communication Cable Kit 1.5m EB-CP11-00
- G Battery Bridging Cable 1.5m (Positive & Negative) GB-CP02-01
- Battery Communication Terminator EB-AC01-01
Excluding 12 volt 120Ah battery for display.
Or consider a pod motor or a 48-volt inboard motor. The ePropulsion 96-volt system may only be installed by a company with NEN 3140VP certification.
Subsidy : Electric boat motors and lithium batteries are eligible for the Environmental Investment Deduction and the Arbitrary Depreciation of Environmental Investments for commercially used vessels. With the MIA/Vamil, the tax benefit can amount to over 14% of the investment amount.
