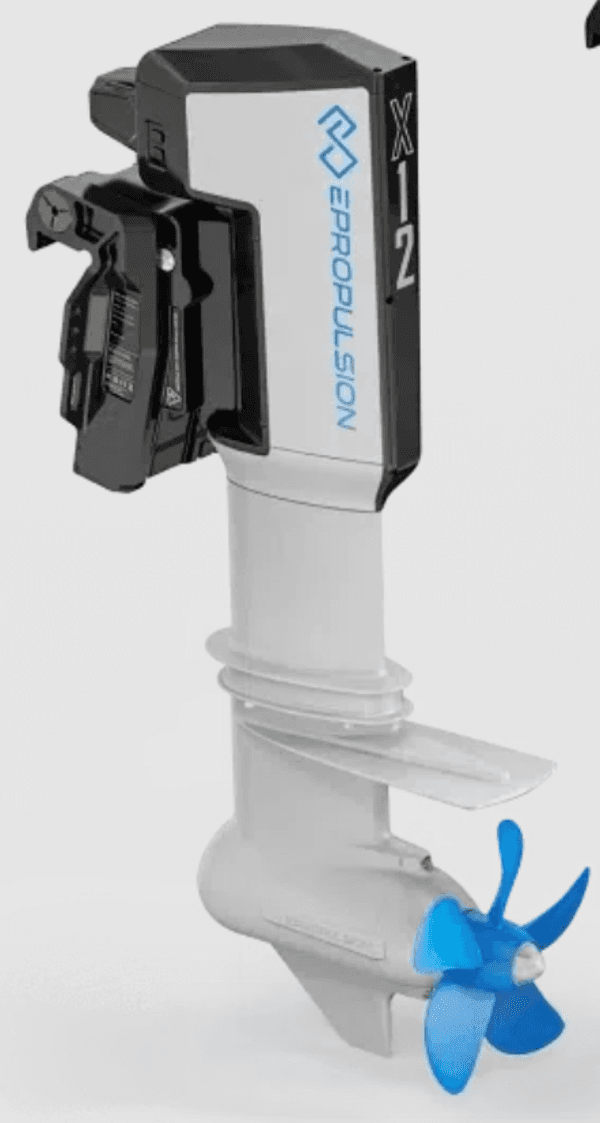

ePropulsion X12 12kW Electric Outboard Motor

€12.395,00 EUR

Sale Sold out

Taxes included. Shipping calculated at checkout.

Quantity

New! Place your reservation now.

Comparable to a 20 hp (propulsion power) to 30 hp (thrust) internal combustion engine.
The engine is suitable for bringing boats from 5,400 to 11,000 kilograms up to cruising speed and boats from 1,900 to 3,600 kilograms up to hull speed.

Is your boat lighter? Then check out the ePropulsion Navy 6.0 Evo 6kW Electric Outboard Motor .

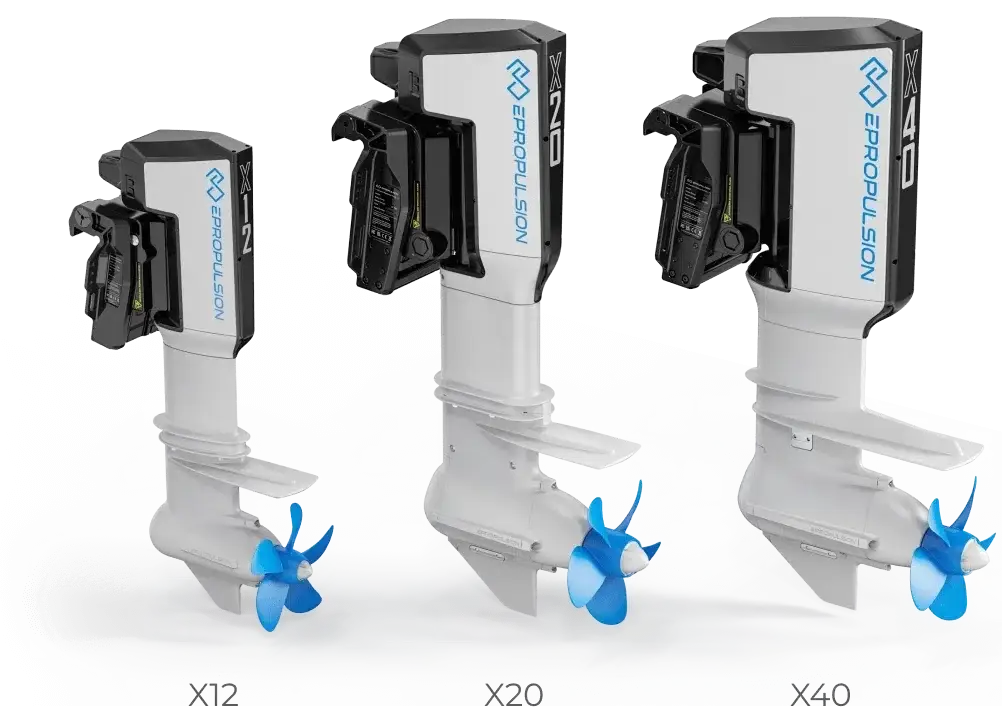

For heavier boats or more speed:
- ePropulsion X20 20kW Electric Outboard Motor 96V

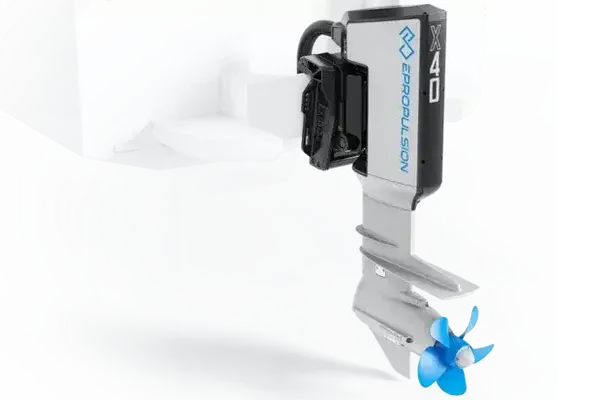

- ePropulsion X40 40kW Electric Outboard Motor 96V

The electric steering, power trim/tilt, ECU (electrical control unit) and engine controller are all integrated into one unit.

Comfortable and intuitive operation

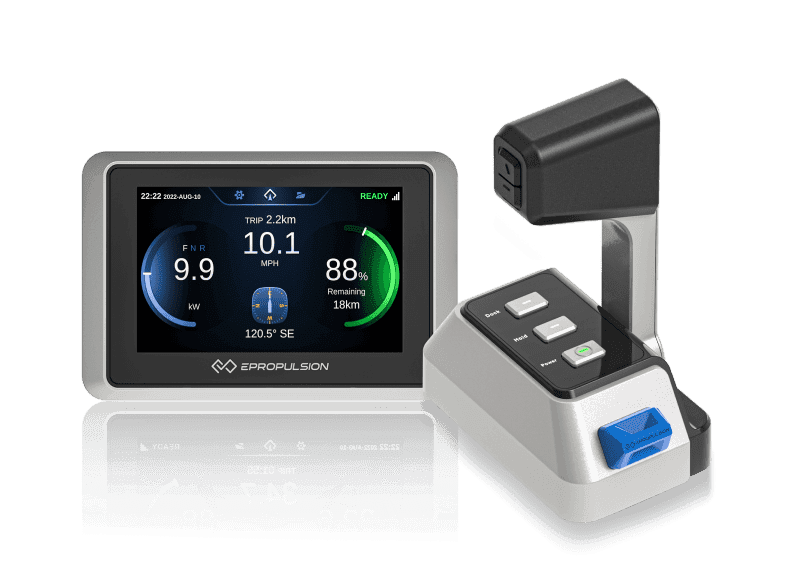

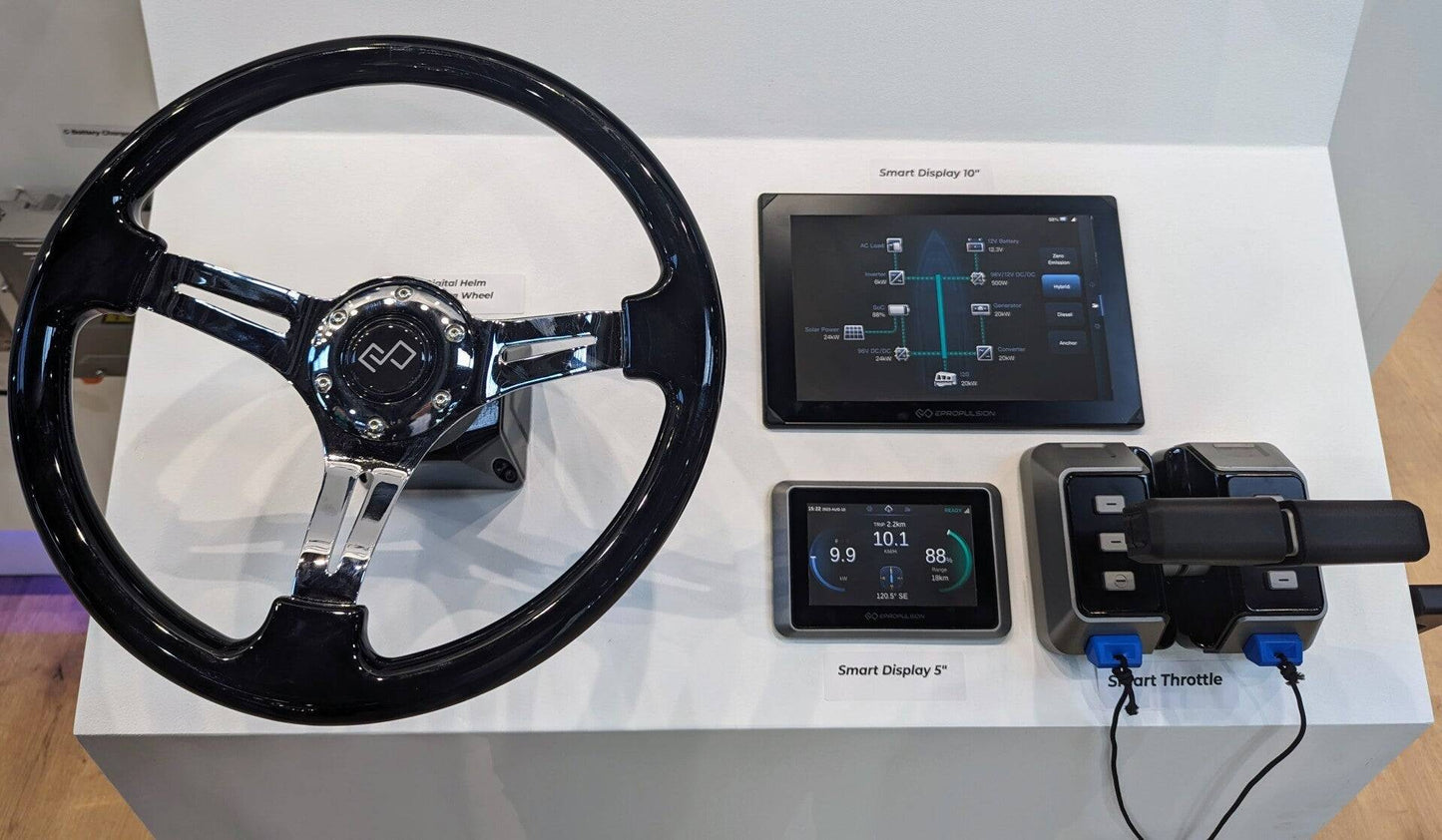

The X Series digital helm and smart throttle controls, with instant digital feedback, are responsive and easy to operate, even for boating beginners.

Integrated electrical control

The X Series’ electric steering eliminates the need for hydraulics, making installation and maintenance easier.

Advanced sailing assistance features

Integrated electrical control enables automated functions such as 'Position Hold', 'Heading Hold' and '360 Motions' for added safety and easy operation. More functions will follow in the future.

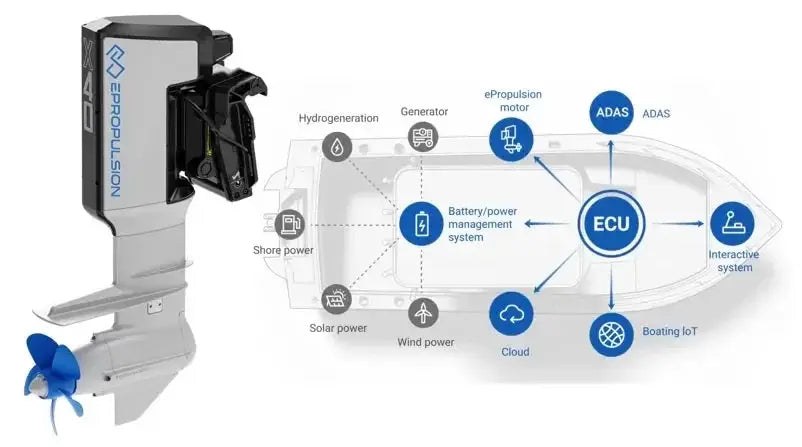

eSSA makes setting up an X Series system seamless and worry-free. The modular architecture supports simple and secure connection of multiple components and enables integration with renewable energy sources, increasing the sustainability of your boating experience.

This electric inboard motor offers a user-friendly, intelligent and reliable boating experience.

Connectivity

The built-in ePropulsion Connectivity Service keeps you in touch with the real-time status of your boat and provides advanced monitoring, reporting and voyage tracking capabilities.

ePropulsion Link is a mobile application that allows boat owners to communicate with their boats safely and reliably. It gives users access to cloud-based connectivity services without the need for additional accessories. This smart application works with the ePropulsion electric propulsion system and provides real-time data, valuable insights and extensive statistics to optimize your boating experience.

Ultra-low noise, vibration and harshness (NVH)

With a maximum noise level of 73 dBA, X Series outboards are quieter than most offices! Thanks to advanced damping technology and frequency resonance isolation, this means you can enjoy more of the water without shouting at each other or scaring away wildlife.

Environmentally friendly
X-Series outboards are emission-free. Compared to a 60hp petrol outboard running at full power for 100 hours, an X40 would save 1900 litres of petrol and 4.3 tonnes of CO₂ pollution.
Engine manual (X40)

Battery

The G102-100 battery is designed to be fully compatible with your 96V X-Series electric outboard motors
Fully compatible with X-Series electric outboard motors
Safe and reliable
High energy density
Long life cycle

Specifications:

Engine weight (excluding controls) 48 kilograms (S) (105.8 lbs) 50 kilograms (L) (110.2 lbs)
Shaft length 381 millimeters (S short tail) (15”) 508 millimeters (Long tail) (20”)
Dimensions (L x W x H) 560 x 266 x 978 millimeters (22 x 10.5 x 38.5 inches) (S short tail) 560 x 266 x 1105 millimeters (22 x 10.5 x 43.5 inches) (L long tail)
Input power 12 kiloWatt
Nominal voltage 96 VDC
Cooling system Natural cooling
Nominal speed 1100 to 2000
Trimming and tilting Electric trimming and tilting
Trim/tilt angle -4° to 61°
Control Integrated electrical control
Steering angle ±45°
Propeller 11 13/16” x 10 5/8” propeller (available in L&R rotation)
11 7/16” x 14 3/16” propeller (available in R-rotation)

Options (for a complete installation):

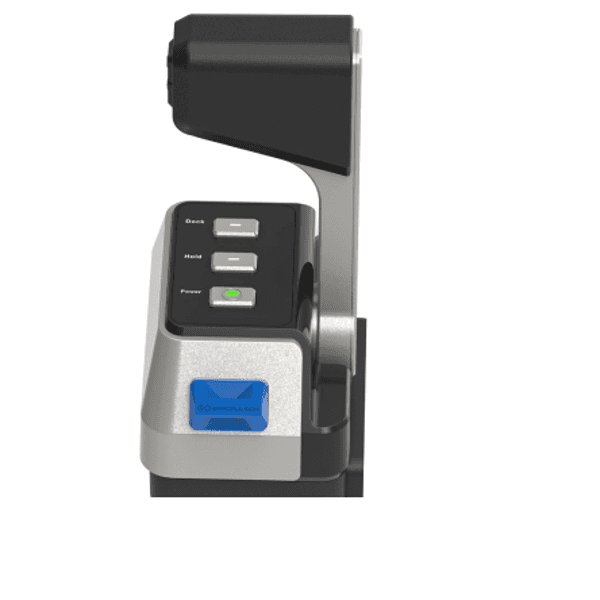

Remote Control: Smart Remote. Smart Throttle supports 3 mounting options: Top or Side, Single or Double, and Port or Starboard
- Item number: XS-RC00-00.
- Manual

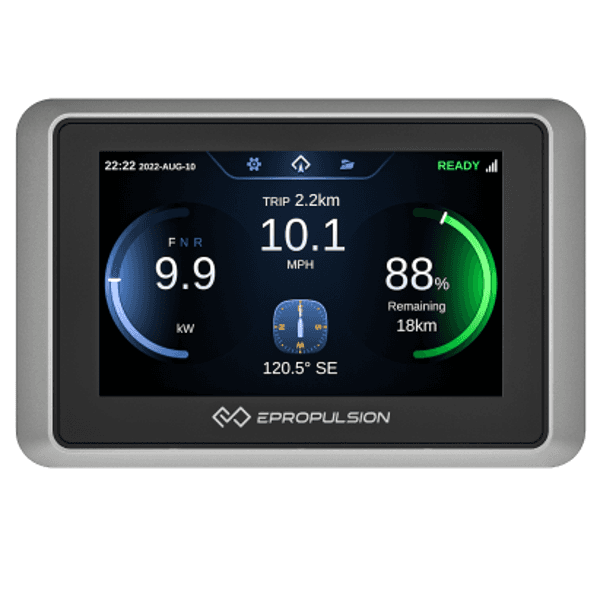

Screen: smart display 5 inch / 13 centimeter. Item number: XS-DP00-00
Propeller. Item number: X4-LU01-R0.
Digital Helm steering wheel. Article number: XS-SW00-A0.
Excluding battery and charger. Other cheaper LiFePO4 batteries are also available (to be placed in series to 96 Volt).
Or consider a pod motor or a 48 Volt inboard motor. The 96 Volt system from ePropulsion may only be installed by a company with NEN 3140VP certification.

Subsidy : Electric boat engines and lithium batteries are eligible for Environmental Investment Deduction and Arbitrary Depreciation of Environmental Investments for vessels used commercially. The tax benefit can amount to over 14% of the investment amount with the MIA\Vamil.
