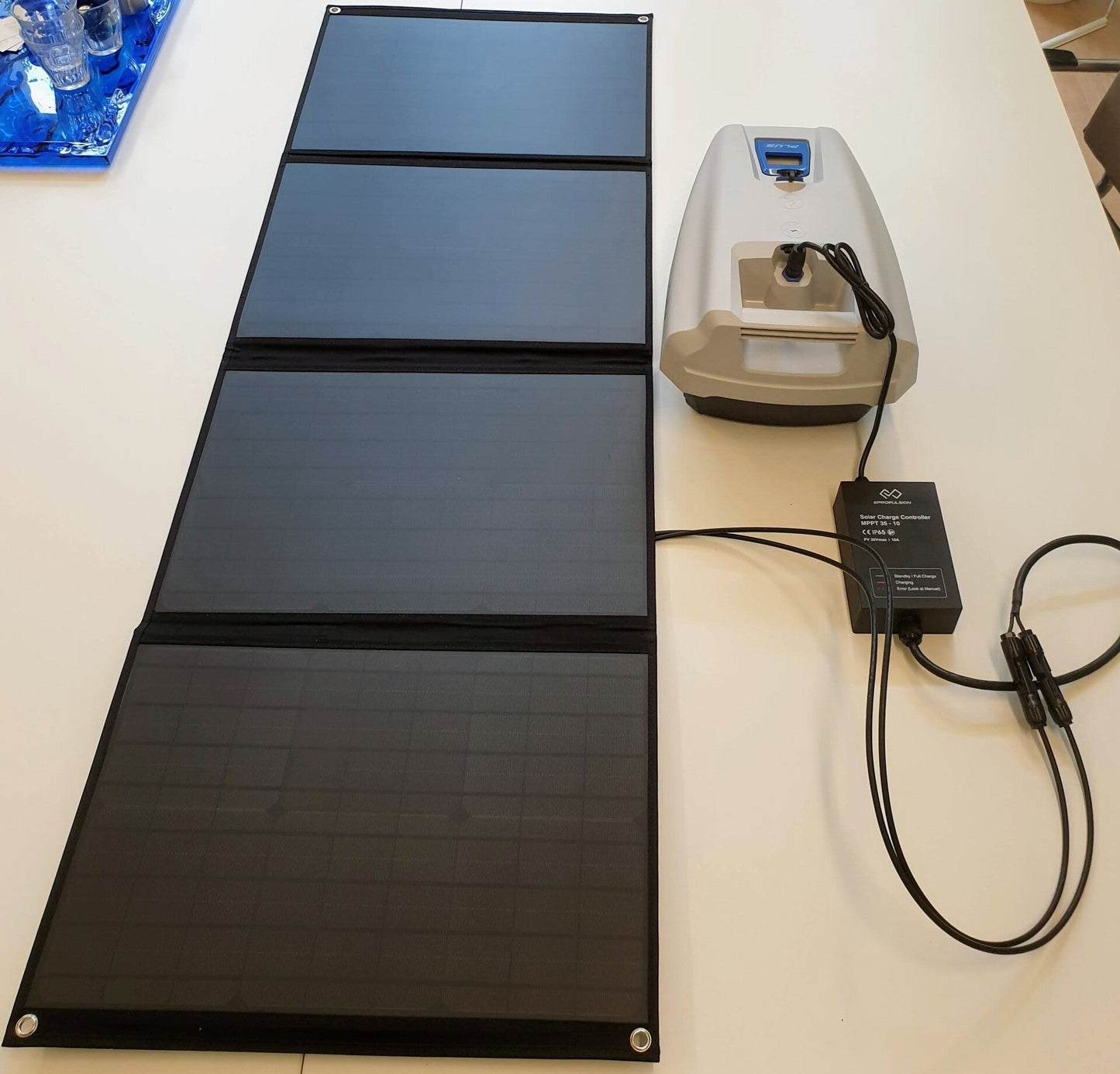

Solar panel specifications Item number FS-P000-00 EAN: 6971312630046 Max power 100W ± 5% (this allows you to sail at 10% power or, after 5 hours of charging at 50% power, sail for an hour with the Spirit 1.0, the Spirit 1.0 Plus or the Pod 1.0). Transformation efficiency 20% ± 2%. Dimensions (unfolded) 56.3 x 20.7 x 0.2 inches / 1430 x 525 x 5 mm. Dimensions (folded) 20.7 x 14.2 x 1.1 inches / 525 x 360 x 28 mm. Weight: 2.4 kg. Cable length: 1.5 m. Waterproof: rated IP65 (Has full protection against dust and is protected against water jets (and can therefore be sprayed with a garden hose).

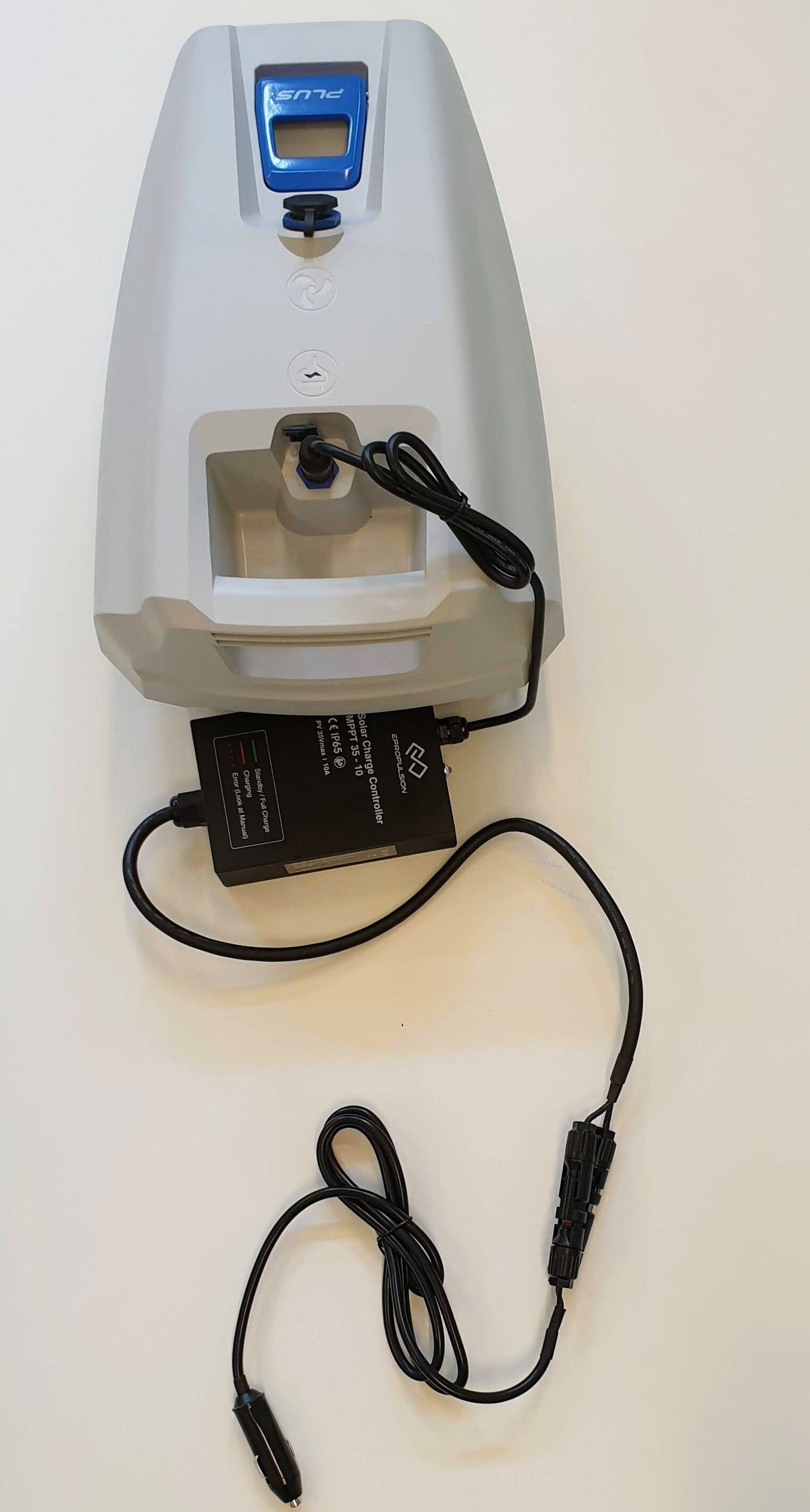

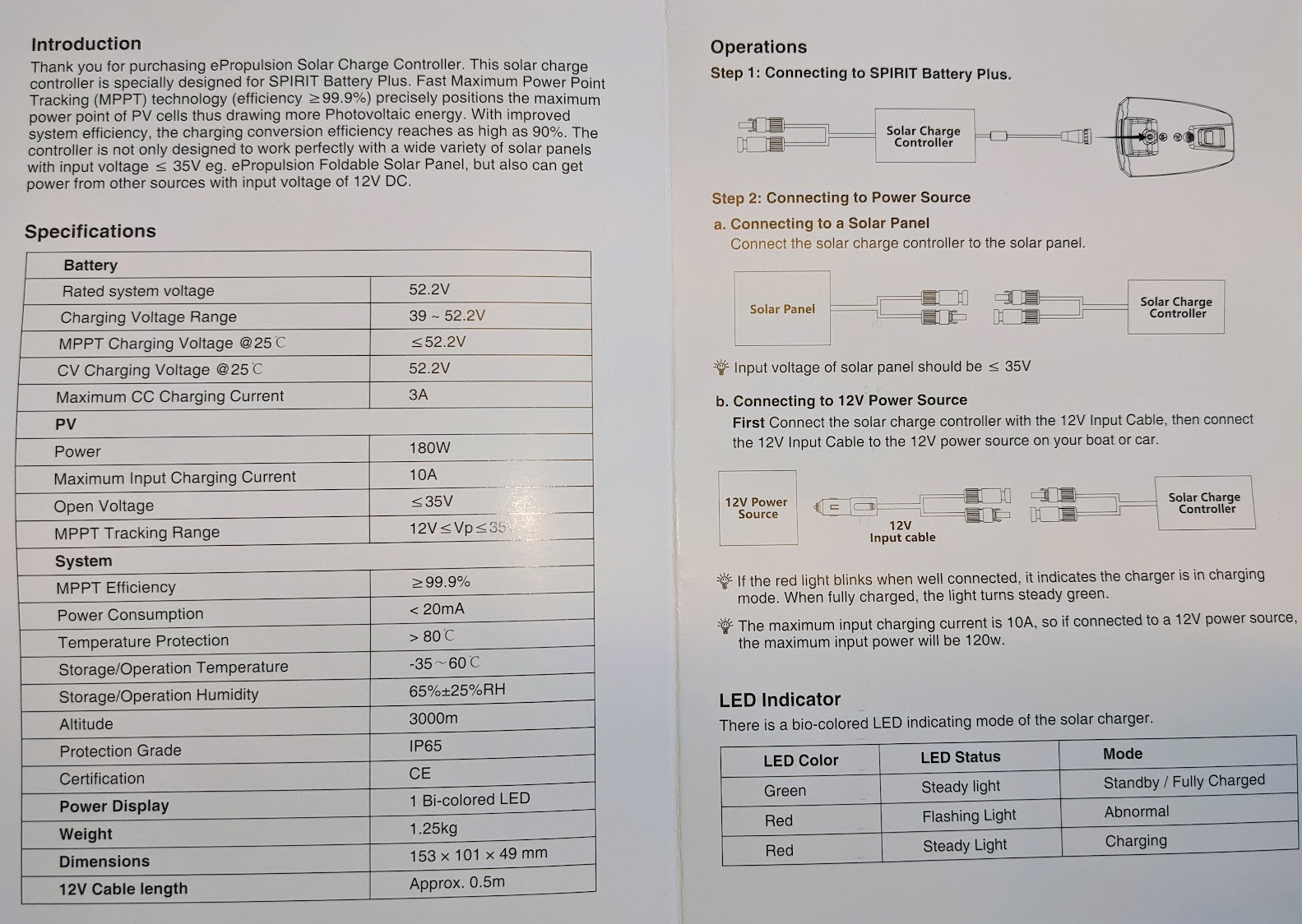

With these chargers, you can charge the ePropulsion Spirit Battery with the ePropulsion solar panel or in your car or on the boat's 12-volt electrical system. A 0.5 m 12V cable is included. The charger also works with other solar panels with an input voltage of up to 35 Volt.

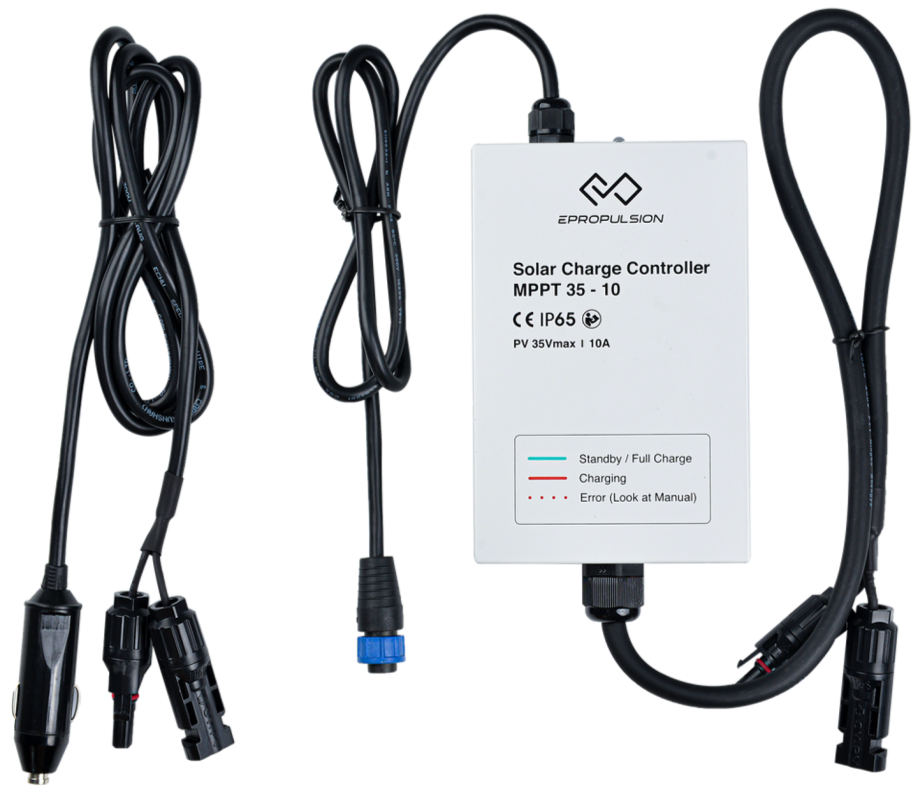

Item number SP-C003-00 Maximum output power 180 W Maximum output voltage 35V Maximum input current 10A MPPT tracking range 12V ~ 35V IP65 - Has full protection against dust and is protected against water jets.
