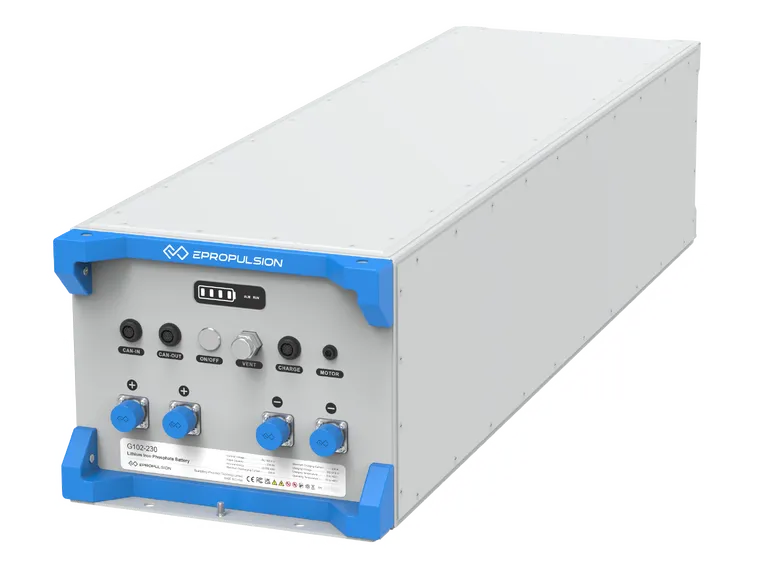

ePropulsion G-Series LiFePO4 boat battery G102 96 V

Available to order. Ask about delivery time.

€9.994,00

Sale Sold out

Taxes included. Shipping calculated at checkout.

Capacity G102-100 10kWh G102-230 24kWh

SKU: GB-0230-00

EAN: 6971312633603

The ePropulsion G-Series consists of powerful LiFePO4 marine batteries for 96 V electric propulsion systems. The batteries are designed for larger ePropulsion systems, such as the X-Series, and other applications that require high battery capacity.

ePropulsion G102-100

Capacity: 10.24 kWh
Voltage: 102.4 V
Type: LiFePO4 (Lithium Iron Phosphate)
Application: 96 V electric propulsion systems

ePropulsion G102-230

Capacity: 23.55 kWh
Voltage: 102.4 V
Type: LiFePO4 (Lithium Iron Phosphate)
Application: larger electric propulsion systems

Key features

LiFePO4 technology with long service life
Integrated Battery Management System (BMS)
Suitable for high-power electric marine propulsion
Designed for integration with ePropulsion systems

Compare specifications

Property	G102-100	G102-230
Nominal energy	10,240 Wh / 10.24 kWh	23,552 Wh / 23.552 kWh
Capacity	100 Ah	230 Ah
Nominal voltage	102.4 V	102.4 V
Weight	100 kg	180 kg
Dimensions	680 × 500 × 300 mm	1287 × 366 × 295 mm
Maximum continuous discharge current	100 A	230 A
Series connection	Not supported	Not supported
Parallel connection	Maximum 8 batteries per cluster	Maximum 8 batteries per cluster

Compatibility

The correct battery configuration depends on the chosen motor, the desired range, and the electrical installation. The G-Series is intended for compatible 96 V ePropulsion systems from the X, I, and eSSA Pod Drive series. The nominal battery voltage is 102.4 V. Series connection is not supported. For parallel connections and any multiple battery clusters, an appropriate system configuration is required.
