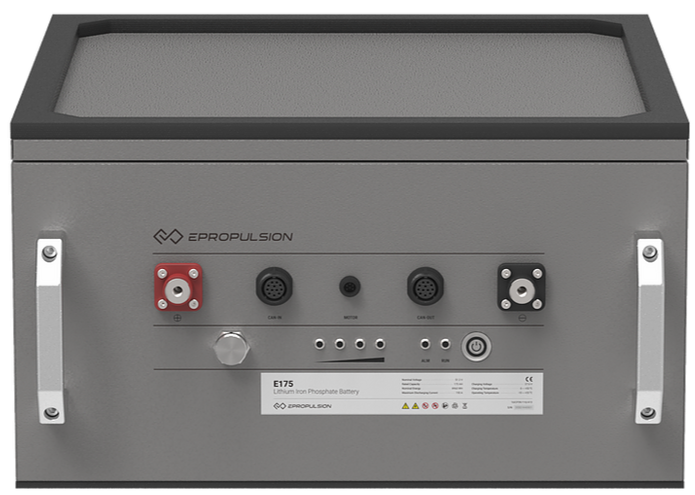

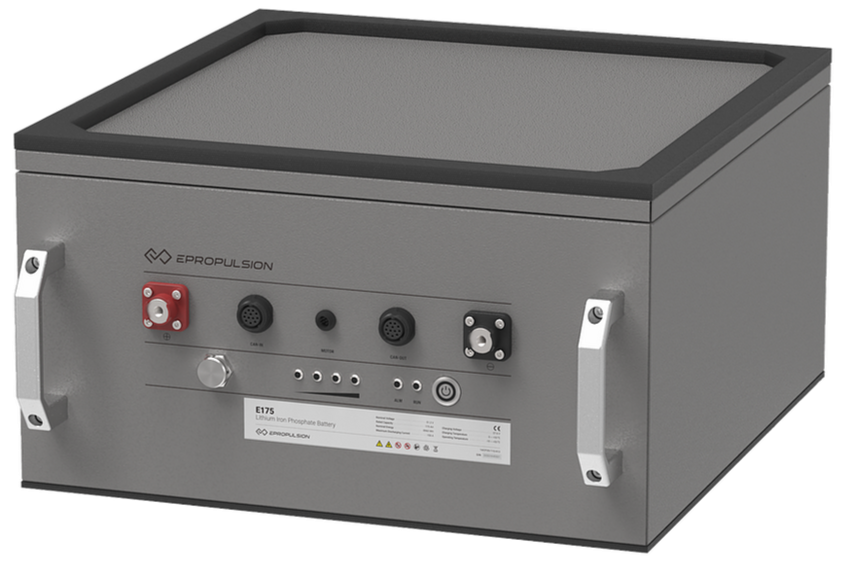

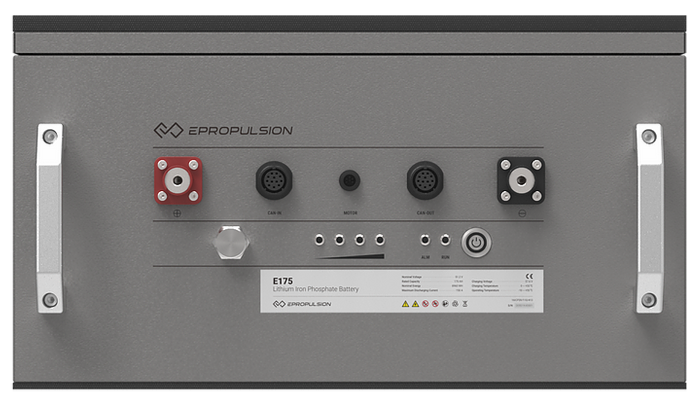

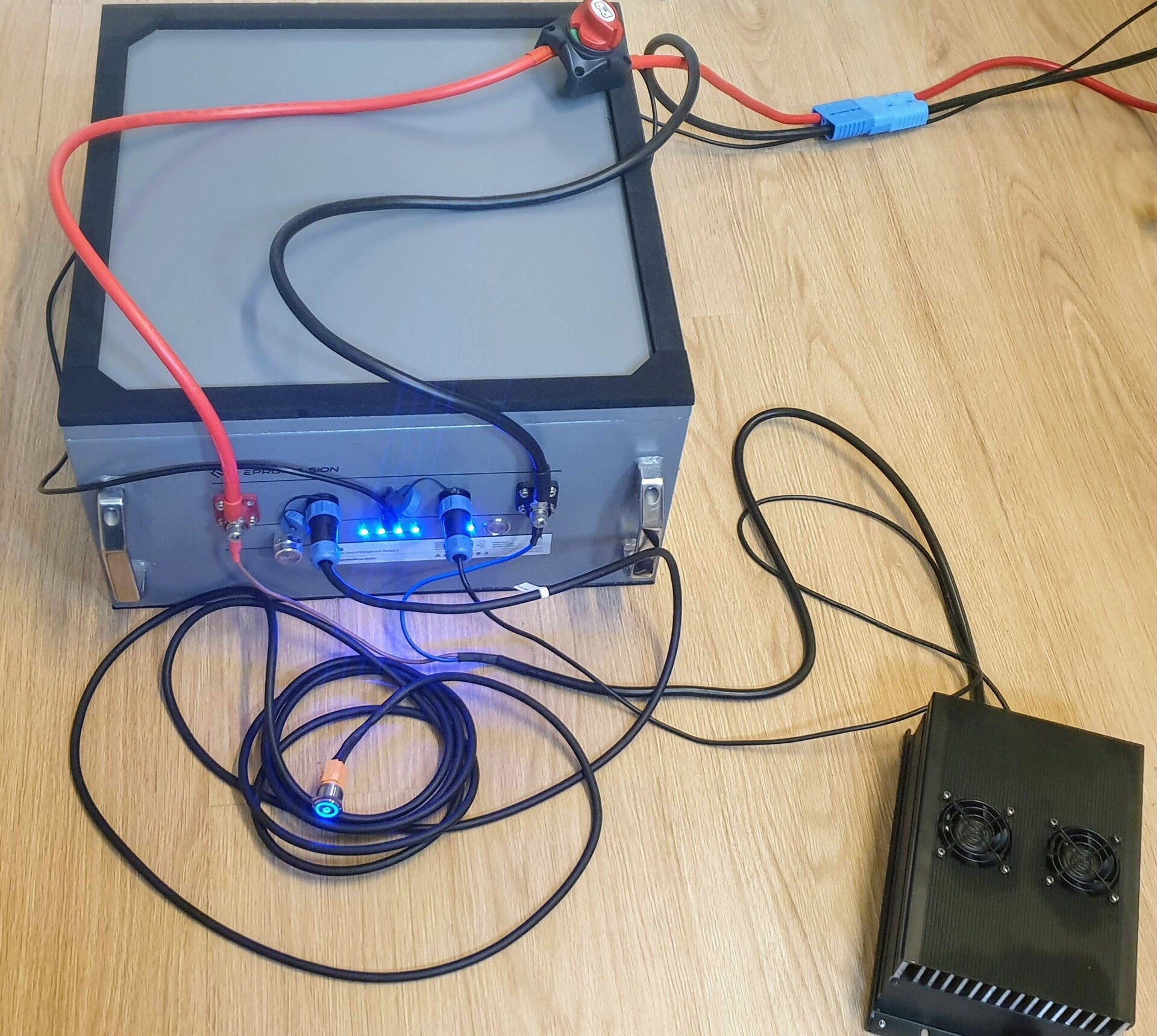

ePropulsion E175 LiFePO4 Battery 9 kWh 48V

8960 Wh LiFePO4 battery, an affordable battery due to its lower cost per unit, which can retain 80% of its capacity after 3000 cycles at 80% DoD (depth of discharge).

• Compatible with Spirit 1.0 Plus, Navy series electric outboard motors, and pod drives. Of course, you can also connect other 48 Volt motors.
• With this, you can even cruise for 9 hours at cruising speed with a boat weighing up to a ton.
• Complete protection through robust construction and a reliable battery management system.
• IP 67 waterproof: Submersible (no water ingress when submerged (30 minutes at 1 meter)).
• Read the manual (E-series) and the brochure.

• 50% cheaper than competitors: Affordability was the starting point for these E-series batteries. By optimizing the production process, these batteries can be brought to market at a very competitive price.
• Subsidy: Electric boat motors and Lithium batteries are eligible for Environmental Investment Deduction and Arbitrary Depreciation of Environmental Investments for commercially used vessels. The tax benefit with MIA\Vamil can amount to more than 14% of the investment amount.
• LiFePO4 is the best battery (and therefore better than Lithium-ion):
  • Safe: LiFePO4 is chemically stable and non-flammable. It is also resistant to high temperatures without decomposition. Ultimately, you don't have to worry about it exploding or catching fire during use.
  • Durable: Use this battery daily, and you can even use it for 8 years. LiFePO4 batteries have a long lifespan, and the fact that they are rechargeable makes them durable. Essentially, you can keep reusing a LiFePO4 battery again and again. LiFePO4 is a non-toxic material and does not release hazardous or dangerous fumes, making it safe for you and the environment.
  • Long-lasting: A Lithium LiFePO4 battery does not need to be fully charged for use. This means you can connect multiple batteries in parallel without damaging the batteries that are less charged than others. It can also be discharged quickly without damaging the cells. LiFePO4 batteries have a low self-discharge rate, meaning they can sit for months without running out of power or causing permanent damage. They also have a longer and better life cycle.
  • Efficient: Charging a Lithium LiFePO4 battery is easy. Additionally, it charges faster than other batteries. It also requires no maintenance, which means you experience minimal downtime and maximum productivity when using Lithium LiFePO4 batteries. Lithium LiFePO4 batteries are lighter.
  • Performance: Lithium LiFePO4 batteries have optimal energy density in both volume and weight and have a good specific amount of energy, meaning the battery can deliver the necessary power when needed.

SPECIFICATIONS

• Article number EB-0175-00
• EAN: 6971312631562
• Capacity 8,960 Wh
• Maximum discharge current 150 Amperes. So maximum deliverable power 7.2 kW.
• Weight 87 kilograms

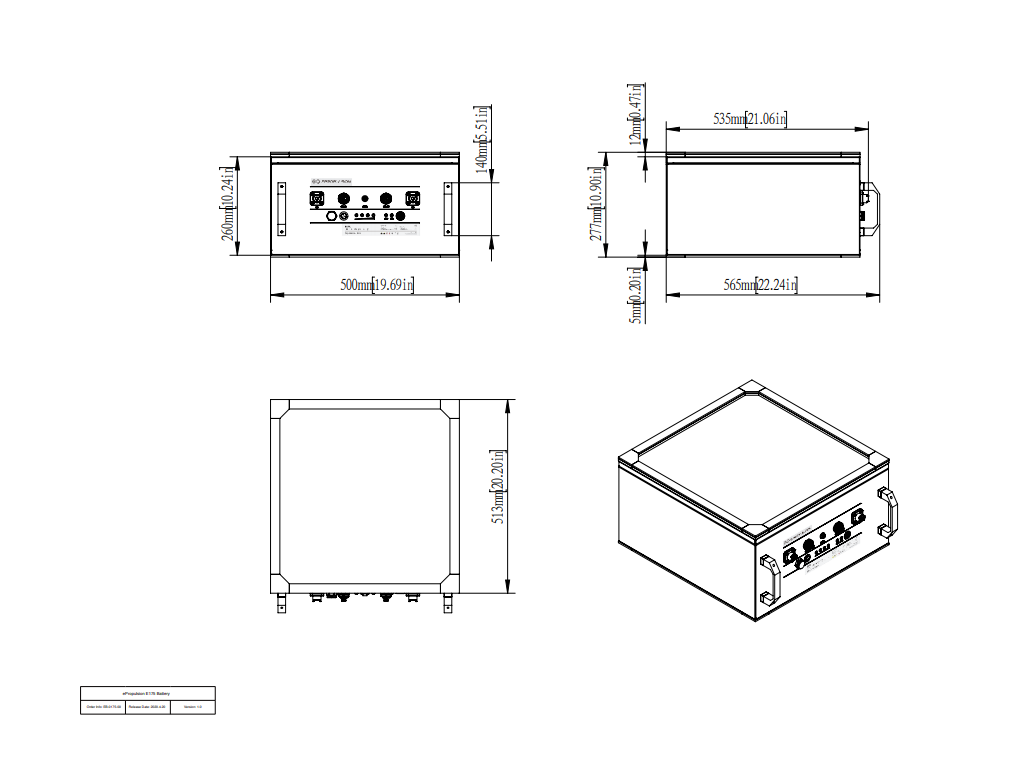

• Dimensions 50 x 56.5 x 27.7 cm
• Battery type Lithium-Iron-Phosphate
• Battery life: 3000 cycles at 80% DoD
• Nominal voltage 51.2 Volts
• Cut-off voltage: 41.6 Volts
• Maximum charging voltage: 57.6 Volts
• Charging time: 6 hours, and with 2 chargers connected in parallel, 3 hours
• Parallel connection: up to 16 batteries of the same type.
• Discharge temperature: -10°C to 55°C
• Charging temperature: 0°C to 55°C
• Mounting position: Upright or long side
• Cell configuration: 16S1P

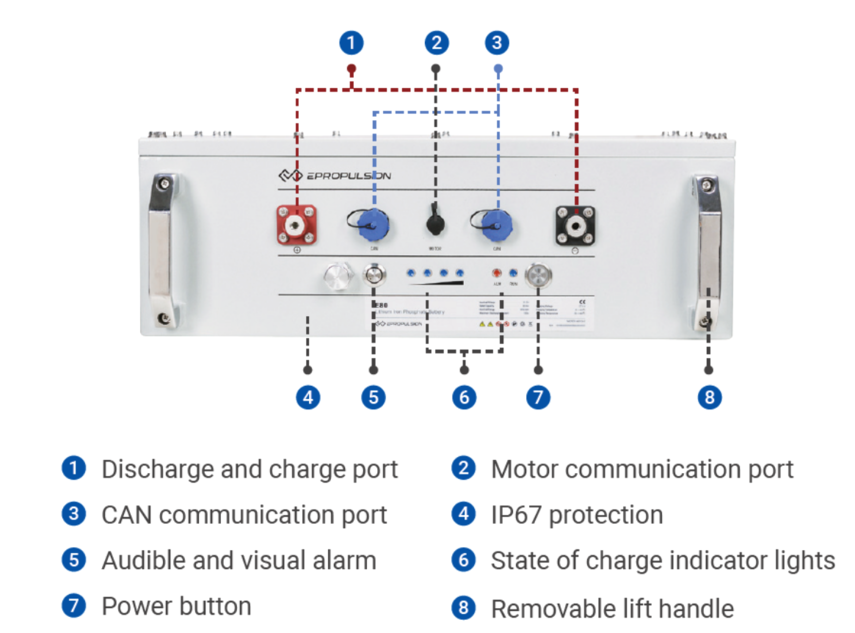

• Communication: CAN-Bus for parallel, RS485 for ePropulsion motors, N/A: NMEA 2000
• Approvals: CE, CCS
• Battery management system: Included
• Shipping classification: UN3480, Class 9, UN38.3 Certified
• Removable handle: Included
• Audible and visual alarm: Included
• Charge status indicator lights: Included
• Power button: Included

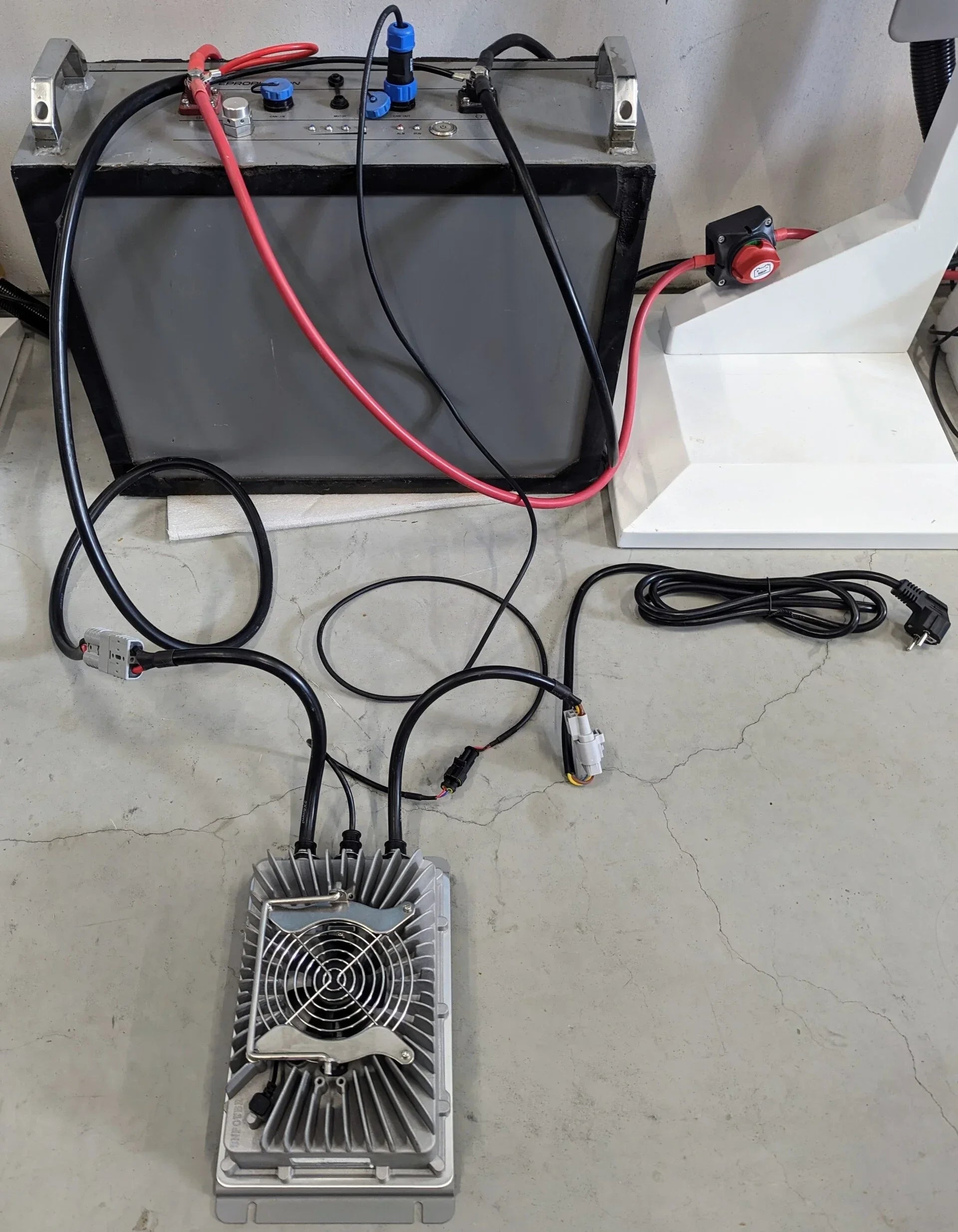

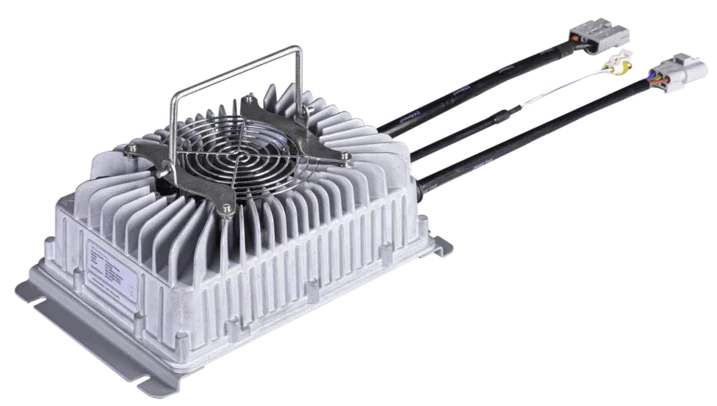

• Excluding: ePropulsion E Battery Charger 30A

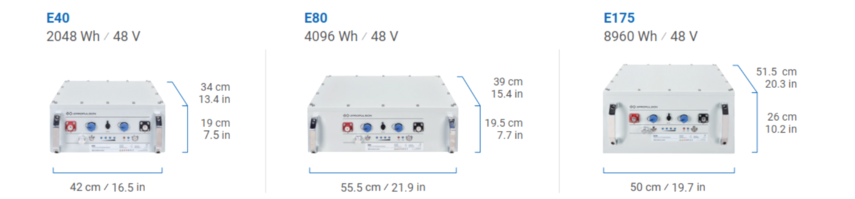

  • • Battery charger for the E40, E80 or E175 battery
    • This battery charger automatically switches off when charging is complete. The battery charger can be permanently installed in the boat as it is water-resistant. Use a splash-proof 220 Volt extension cable to connect the battery to an outlet.
    • Up to 8 chargers can be placed in parallel. This way, you can reduce your charging time by up to 8 times.
    • You can also charge multiple batteries with 1 charger.
    • Charge indicators: LED 1 Red: powered on. LED 2 Red: charging, green: fully charged status (cut-off state, float state). Make sure the battery is switched on during charging, otherwise it will not charge.
    • Article number:  EC-0030-20
    • EAN: 6971312630329
    • Waterproof rating IP 65 (dust-tight and resistant to water jets, thus splash-proof)
    • Max output power: 1152 Watts
    • Max output voltage: 57.6 Volts
    • Output current: 30 Amperes
    • Input current: 9 Amperes (The e30 charger consumes 8.2 amperes at 220 volts, so a 6 ampere shore power supply is insufficient). Also connectable to a generator with a pure sine wave: current of at least 9 Amperes / 2,000 Watts.
    • Input voltage (AC): 185V - 255 V (220V), so just plug into the wall socket.
    • With an input voltage of 85 VAC to 265 VAC, it can be used worldwide
    • Dimensions: 235 * 175 * 110 mm

    A. Features:
    1. E-battery chargers have an intelligent heat dissipation system when the temperature inside the housing is higher than 40°C.
    2. This charger is configured with reverse polarity, overcurrent over circuit protections.
    3. This charger has overheating protection, which switches off the internal temperature above 75 ° C. In extreme heat, the charger can go into an eternal cycle of suspension (a few minutes) and restart. In such cases, it is necessary to take additional measures for heating to prevent delay in completing the charge.



  • Also connectable to solar panels or a generator with a pure sine wave: maximum 57.6 Volts and current between 5 and 40 Amperes. Generator: current of at least 9 Amperes / 2,000 Watts.

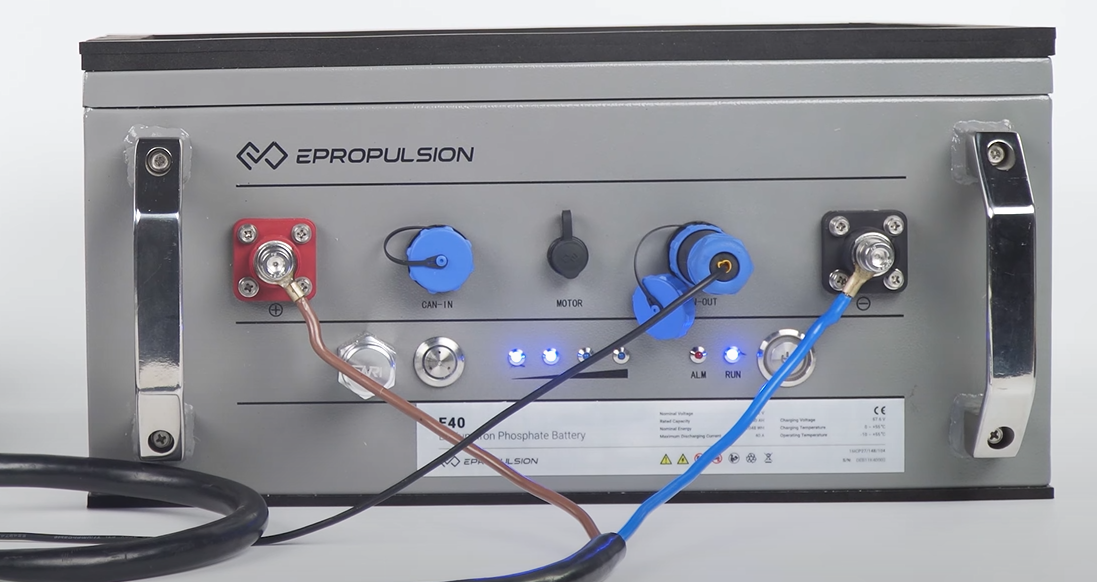

• For multiple batteries, you need a cable set (195,-) for coupling:
  • ePropulsion E-series battery cables (standard length 0.5 meters, 1 or 2 meters also possible).
  • ePropulsion E-Series Battery Communication Terminator: this improves anti-interference performance and signal quality. Article number: DW-EB-AC01-00.

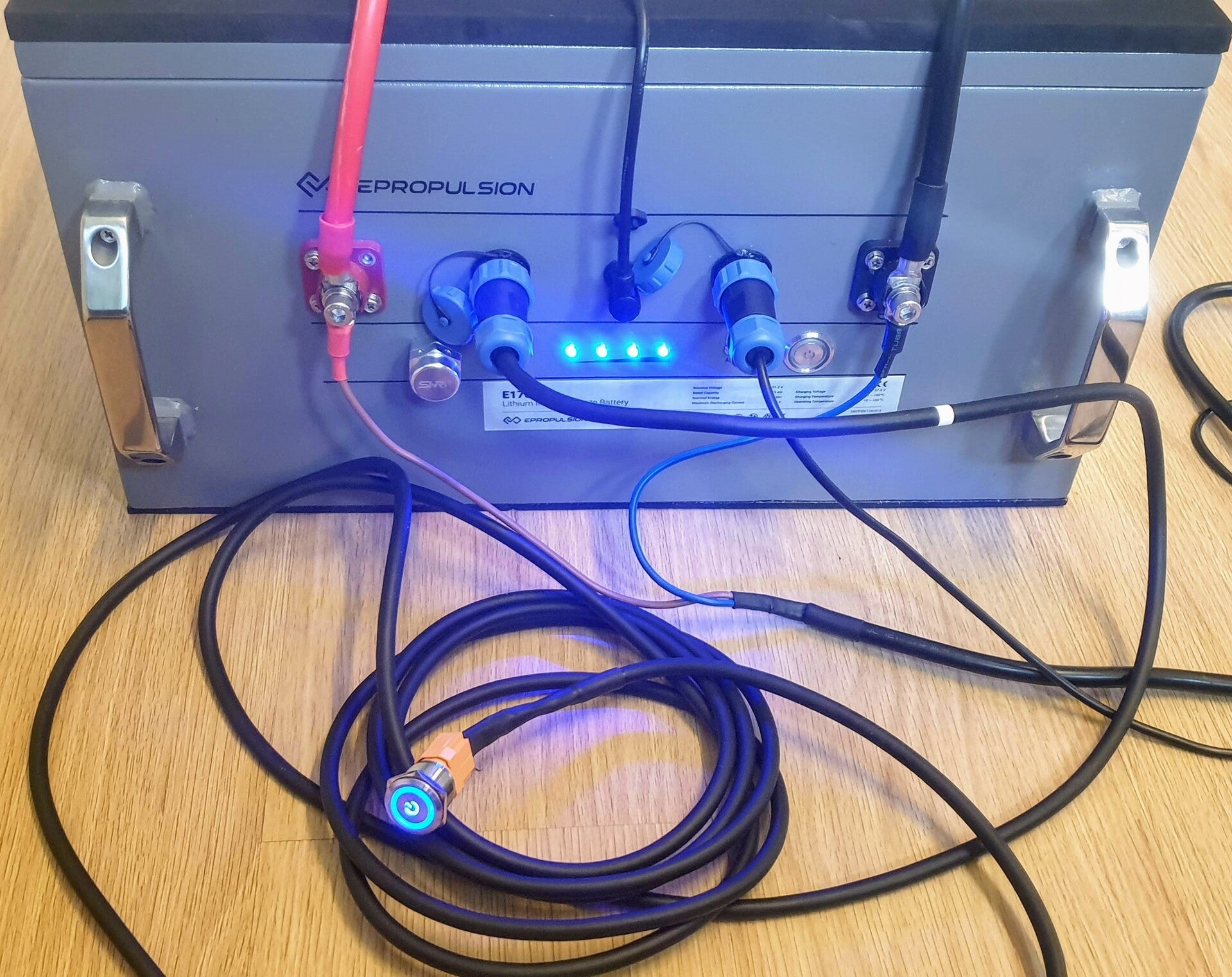

    • You can also use the ePropulsion E-Series Remote Battery Switch 5 meters as a terminator. This also allows you to switch the batteries on and off remotely. The switch emits blue light as long as the battery is switched on. Article number DW-EB-AC02-00 (additional cost 95).
  • ePropulsion E-Series Battery communication cable 1.5 meters. Article number: DW-00-0601-10. This cable can be extended with a 2-meter extension cable. Article number: DW-00-0601-11. (additional cost 99).

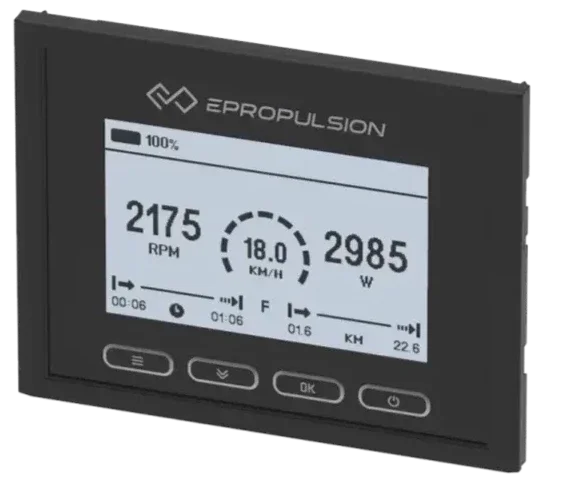

• Option: display. When combining the battery with another brand of motor, the display provides all information such as remaining operating time and error messages. Includes 5-meter communication cable. Product number: EB-DP00-00. 449,-.
• Only demo batteries available: unused with warranty.
