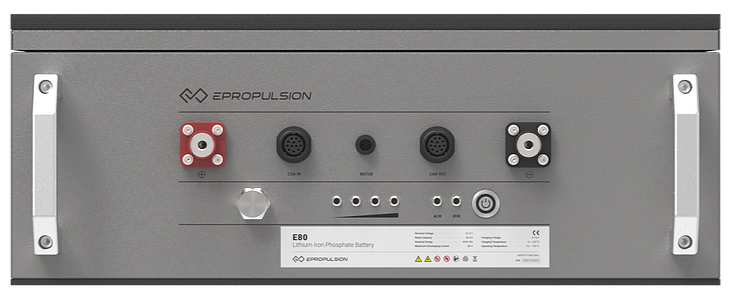

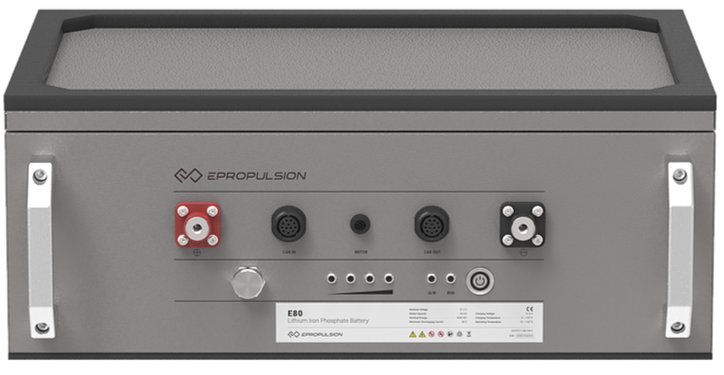

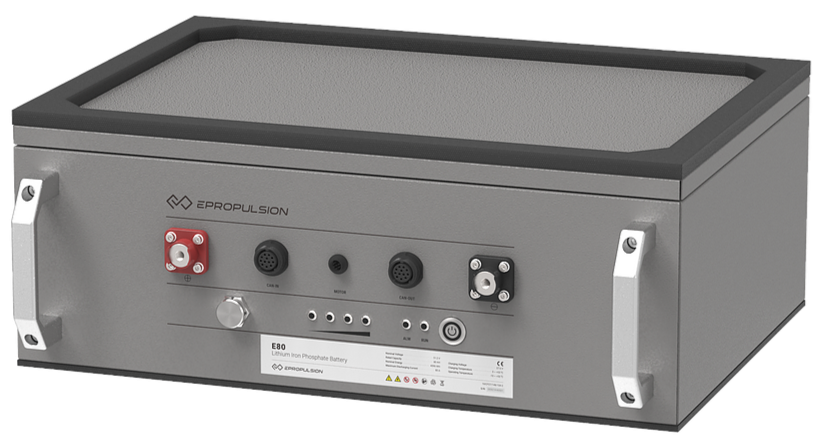

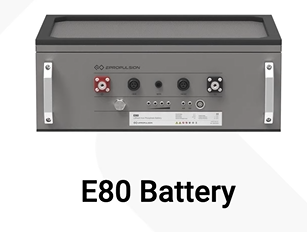

ePropulsion E80 LiFePO4 Battery 4.1 kWh 48V

• 4096 Wh LiFePO4 battery is an affordable battery due to the lower cost per unit and the battery can be recharged after 3000 cycles at 80% DoD (discharge rate) remain at 80% capacity .
• This even allows you to sail for 4 hours at cruising speed with a boat weighing up to one ton.
• To meet the need for larger battery capacity among commercial customers, EPropulsion designed the LiFePo4 battery.

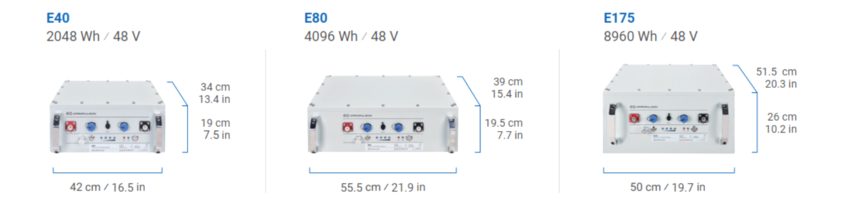

  The LiFePo4 battery has a capacity of 2048 Wh, 4096 Wh or 8960 Wh.
• Compatible with Spirit 1.0 Plus, Navy series electric outboard motors and the ePropulsion pod drive 3.0. Of course you can also connect other devices.
• Full protection due to the robust construction and reliable battery management system.
• IP 67 waterproof: Submersible (no water ingress when submerged (30 minutes at 1 meter)).

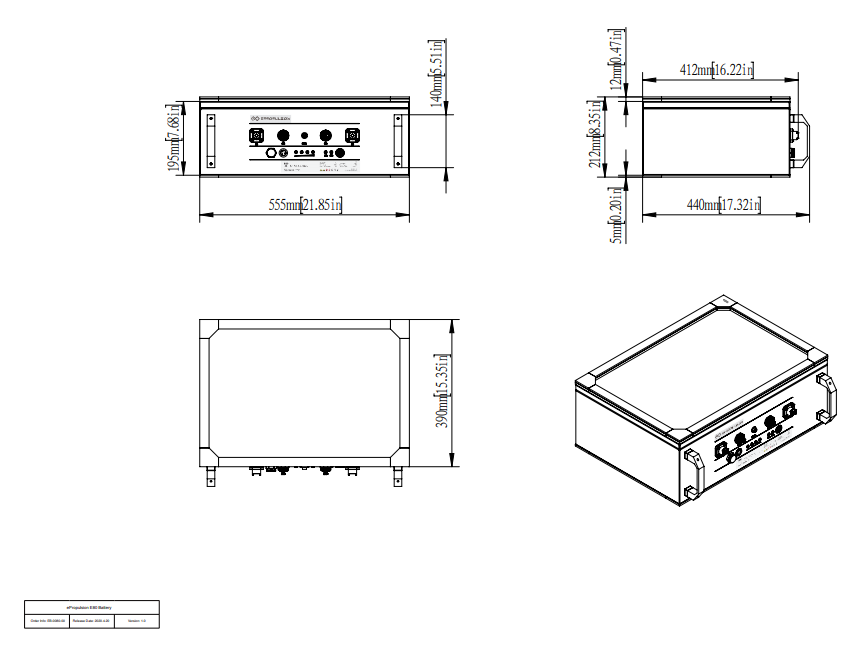

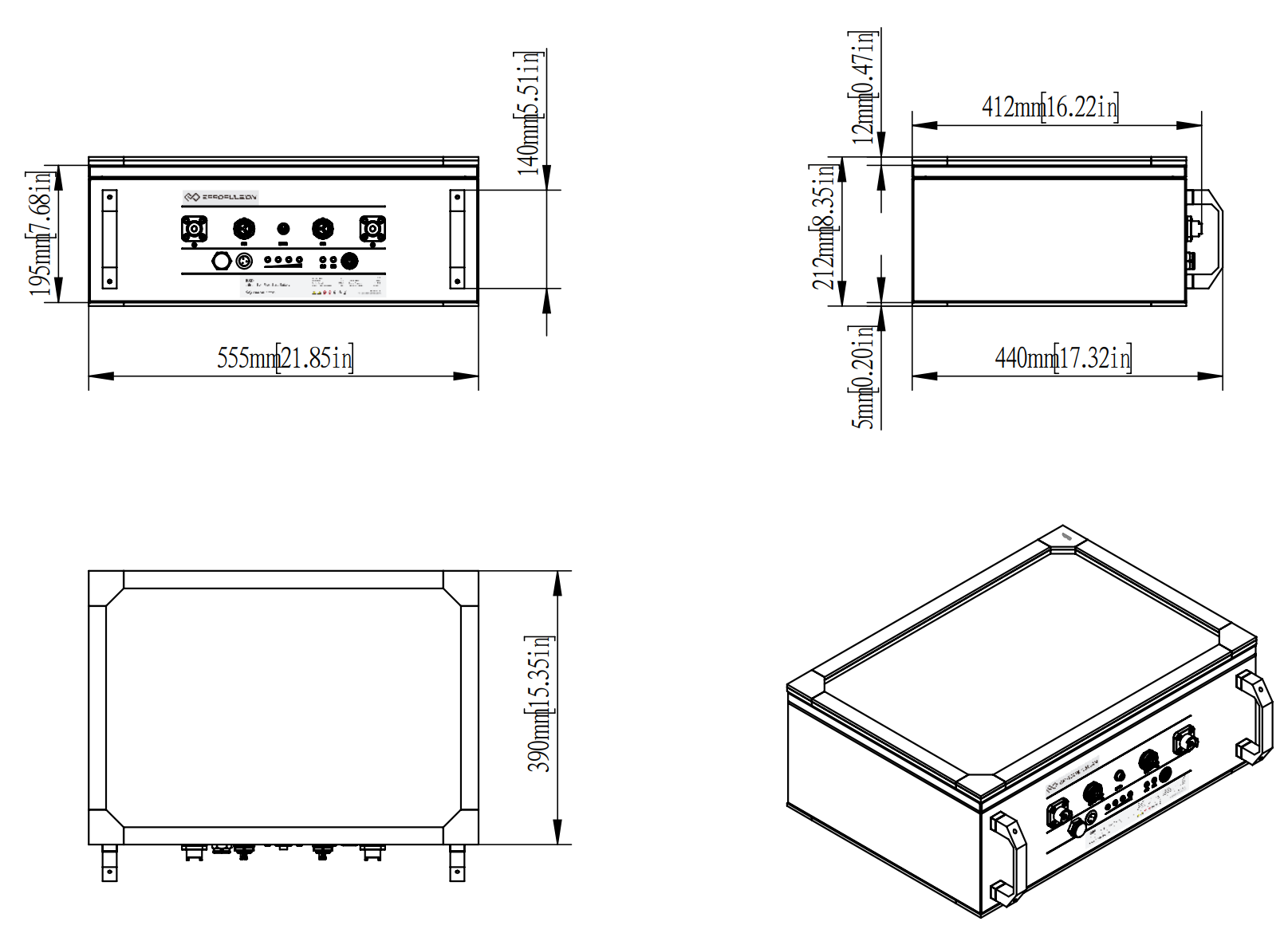

• View the technical drawing (E80 Battery), the manual (E-series) and the brochure here.
• 50% cheaper than competitors: Affordability was the starting point for these E-series batteries. By optimizing the production process, these batteries can be brought to the market at a very competitive price.
• Subsidy : Electric boat engines and lithium batteries are eligible for Environmental Investment Deduction and Arbitrary Depreciation of Environmental Investments for vessels used commercially. The tax benefit can amount to over 14% of the investment amount with the MIA\Vamil.
• LiFePO4 is the best battery (and therefore better than Lithium-ion):
  • Safe: LiFePO4 is chemically stable and non-flammable. It can also withstand high temperatures without decomposing. The bottom line is that you don’t have to worry about it exploding or catching fire during use.
  • Durable: Use this battery daily and you can use it for up to 8 years. LiFePO4 batteries have a long lifespan and the fact that they are rechargeable makes them durable. Essentially, you can use a LiFePO4 battery over and over again. LiFePO4 is a non-toxic material and does not emit any hazardous or dangerous fumes, making it safe for you and the environment.
  • Long lasting: A Lithium LiFePO4 battery does not need to be fully charged to use. This means that you can connect multiple batteries in parallel, without damaging the batteries that are less charged than others. The battery can also be discharged quickly without damaging the cells.
  • LiFePO4 batteries have a low discharge rate, meaning they can be left for months without running out of power or causing permanent damage. They also have a longer and better life cycle.
  • Efficient: It is easy to charge a Lithium LiFePO4 battery. It also charges faster than other batteries. It also requires no maintenance, which means you experience minimal downtime and maximum productivity when using Lithium LiFePO4 batteries. Lithium LiFePO4 batteries are lighter.
  • Performance: Lithium LiFePO4 batteries have an optimal energy density in both volume and weight and have a good specific energy amount, which means that the battery can deliver the necessary power when needed.

SPECIFICATIONS

• Article number EB-0080-00
• EAN number 6971312631562
• Capacity 4096 Wh
• Max discharge current 80 Ampere: so a motor can deliver up to 3.9 kW of power.
• Weight 48 kilograms
• Dimensions 530 x 450 x 160 mm
• Battery type Lithium-Iron-Phosphate
• Battery life: 3000 charges at 80% DOD
• Nominal voltage 51.2 Volt
• Cut off voltage: 41.6 Volts
• Last charge voltage: 57.6 Volt
• Charging time: 3 hours
• Parallel connection: up to 16 batteries of the same type.
• Discharging Temperature: -10 °C to 55°C
• Charging temperature: 0°C to 55°C
• Mounting position: Upright or long side
• Maximum continuous discharge current: 80 Ampere
• Cell Configuration: 16S1P

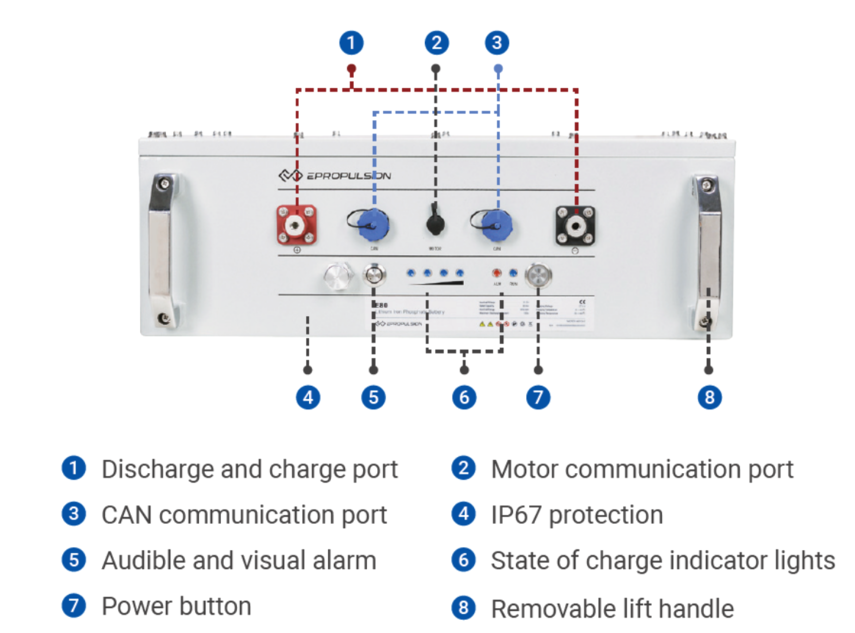

• Communication: CAN-Bus for Parallel, RS485 for ePropulsion motors. N/A: NMEA 2000
• Approvals: CE. CCS
• Battery management system: Included
• Shipping Classification: UN3480, Class 9, UN38.3 Certified
• Removable Handle: Included
• Audible and visual alarm: Included
• Charging Status Indicator Lights: Included
• Power Button: Included
• Cell Configuration: 16S2P

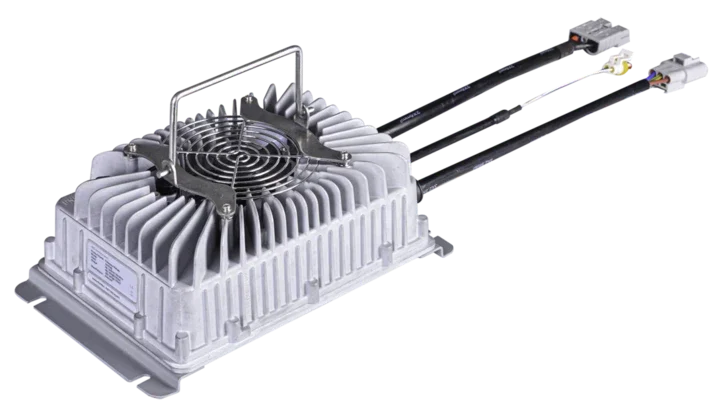

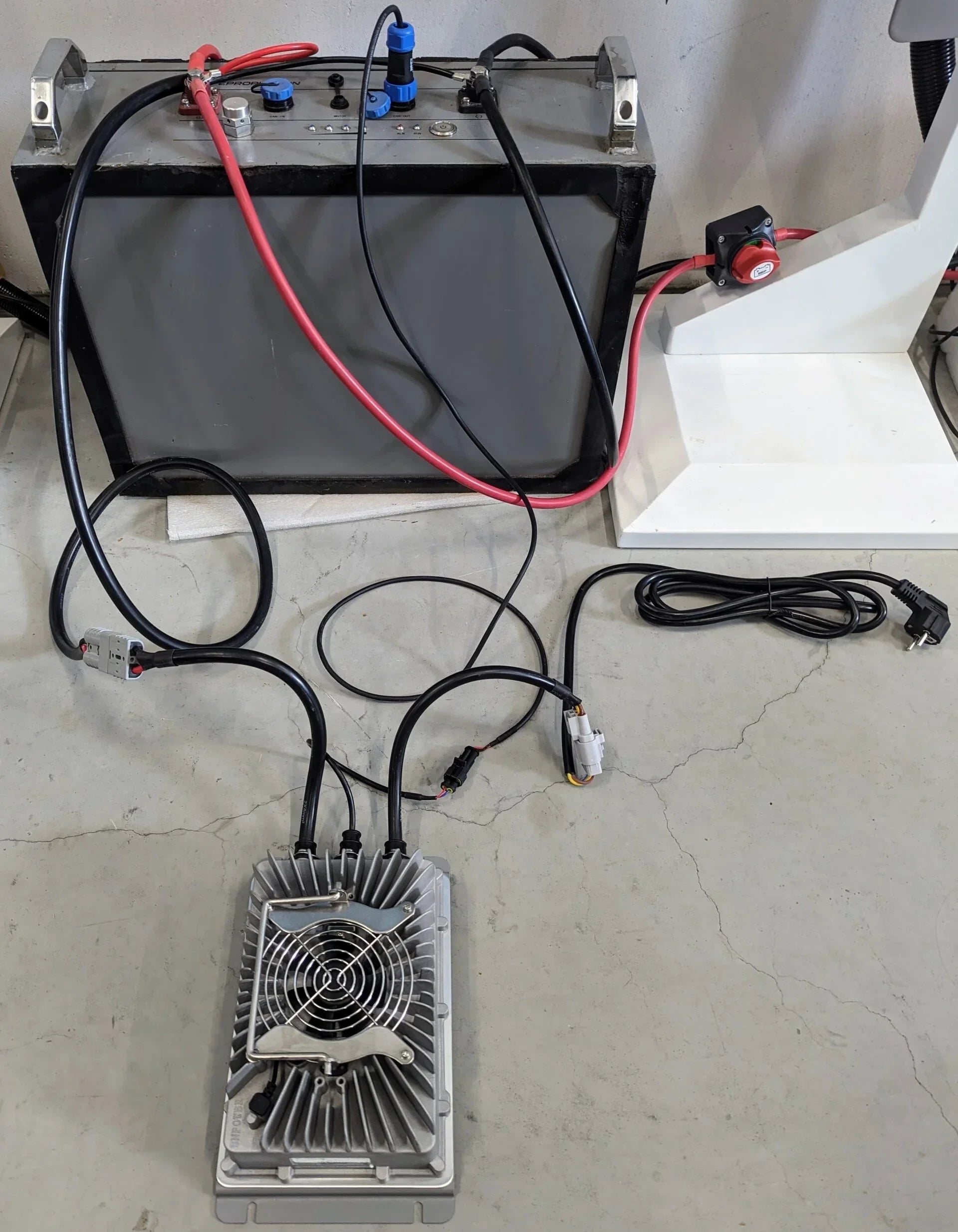

  • Exclusive charger: charging time 3 hours. Can also be connected to solar panels or a generator with a pure sine wave: maximum 57.6 Volt and current of at least 9 Ampere / 2,000 Watt.

    • Battery charger for the E40, E80 or E175 battery
    • This battery charger automatically switches off when charging is complete. The battery charger can be permanently installed in the boat as it water resistant is. Use a splash-proof 220 Volt extension cord to connect the battery to a power outlet.
    • Up to 8 chargers can be placed in parallel. This way you can reduce your charging time by up to 8 times.
    • You can also charge multiple batteries with 1 charger.
    • Charging indicators: LED 1 Red: Power on. LED 2 Red: Charging, Green: Fully charged status (cut-off state, float state). Make sure the battery is powered on during charging, otherwise it will not charge.
    • Article number: EC-0030-20
    • EAN: 6971312630329
    • Water resistant class IP 65 ( dustproof and can withstand water jets, so also splash-proof)
    • Max output power: 1152 Watt
    • Max output voltage: 57.6 Volt
    • Output current: 30 Ampere
    • Input current: 9 Ampere (The e30 charger consumes 8.2 ampere on 220 volts, so 6 ampere shore power is insufficient). Can also be connected to a generator with a pure sine wave: minimum current of 9 Ampere / 2,000 Watts.
    • Input voltage (AC): 185V - 255 V (220V) so just connect it to the wall socket.
    • With an input voltage of 85 VAC to 265 VAC, it can be used worldwide
    • Dimensions: 235*175*110mm

    A. Features:
    1. E-battery chargers have an intelligent heat dissipation system when the temperature inside the housing is higher than 40°C.
    2. This charger is configured with reverse polarity, over-current, over-circuit protections.
    3. This charger has overheating protection, which will shut down the internal temperature above 75 ° C. In extreme heat, the charger may go into an eternal cycle of suspension (several minutes) and restart. In such cases, it is necessary to take additional heating measures to avoid delay in completing the charge.

• For multiple batteries you need a cable set for connecting:
  • epropulsion E-series battery cables (standard length 0.5 meters, 1 or 2 meters also possible).
  • ePropulsion E-Series Battery Communication Terminator: improves anti-interference performance and signal quality. Item number: DW-EB-AC01-00.
    • You can also use the ePropulsion E-Series Remote Battery Switch 5 meters as a terminator. This also allows you to switch the batteries on and off remotely. The switch lights up blue as long as the battery is switched on. Article number DW-EB-AC02-00 (surcharge 95).
  • ePropulsion E-Series Battery communication cable 1.5 meters. Article number: DW-00-0601-10. This cable can be extended with a 2-meter extension cable. Item number: DW-00-0601-11. Price 99.

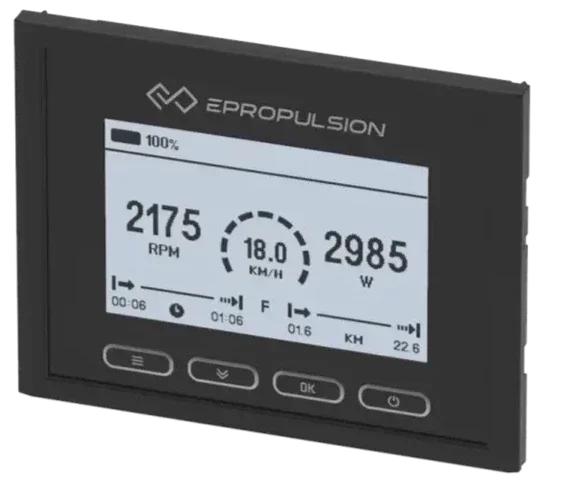

• Option: display. When you combine the battery with another brand of engine, you will receive all information via the display, such as remaining sailing time and error messages. Including 5 meter communication cable. Product number: EB-DP00-00. Manual.

NB the demo battery has slight optical damage, it is unused and under warranty.
